BIBD2503

Manufacturer: Burndy | Catalog # BIBD250-3 | Electrozad South Part # 28816
$86.47 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing

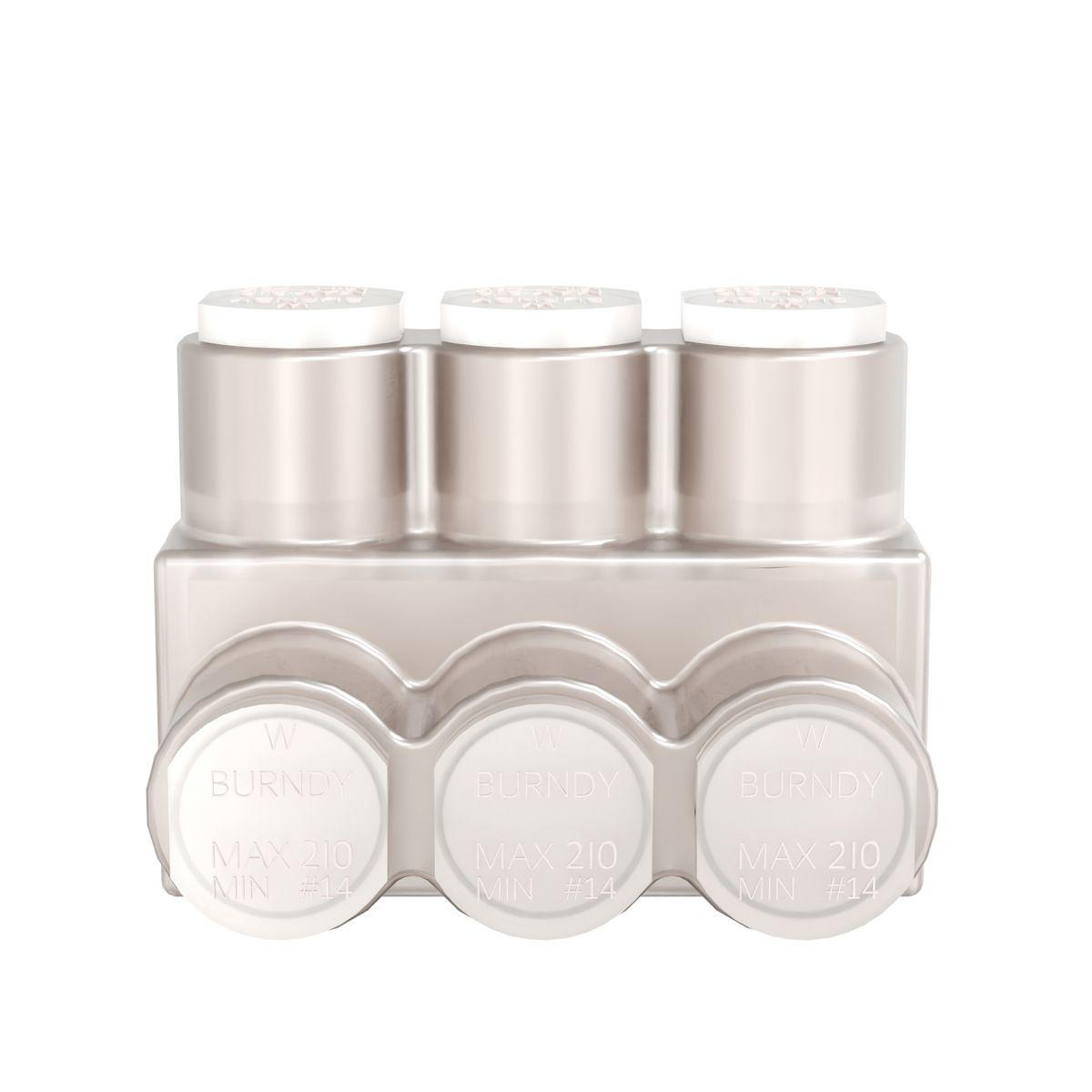

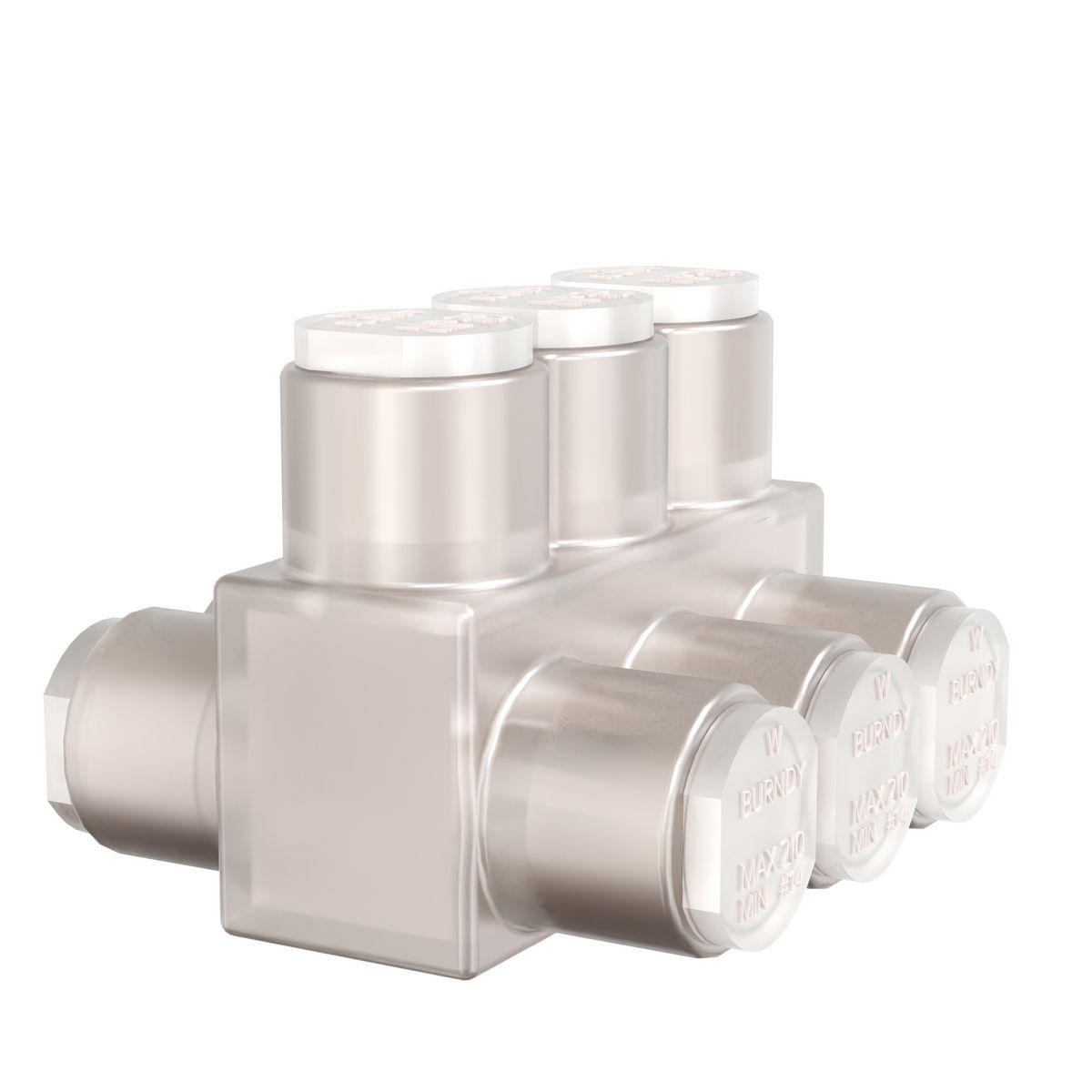

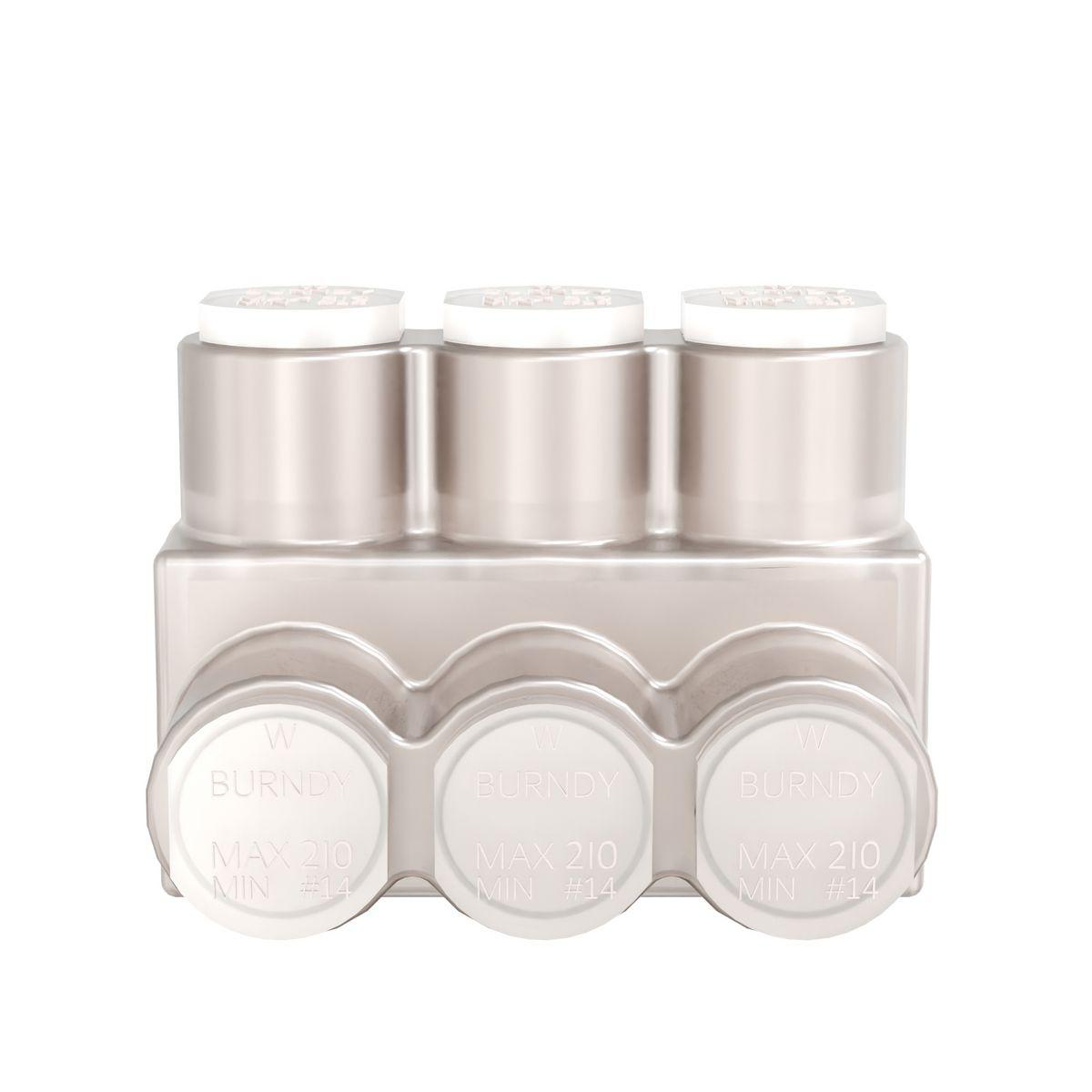

Clear Plastisol Covered Double Sided Entry, 3 Ports, #10 AWG-250 kcmil. Al/Cu Rated, Oxide Inhibitor is pre-installed.

Technical Information

Applications
Indoor use, Copper or Stranded Aluminum
Conductor Size
4/0, 2/0, 3/0, 2, 1, 4, 1/0, 8, 10, 6 AWG, 250 kcmil Run
Connection Type
Screw
Direct Burial?
No
Insulation Type
Plastisol
Material
Al6061-T6 Aluminum
Number of Ports
3
Number of Screws
3
Plated?
No
Plating Type
Unplated
Port Number
3
Size
2.14 IN Height X 2.64 IN Width X 3 IN Length
Standard
CSA,E2186,UL
Temperature Rating
90 degrees C
Type
BIBD, Multi-Port, Two Side
Voltage
600 V

Manufacturer Information

Brand
Burndy
Sub Brand
Unitap™

General Product Info

12-Digit UPC
781810133408
GTIN
00781810133408
Product UPC
78181013340

Dimensions

Height
2.13 in
Length
2.97 in
Overall Length
2.97 in
Width
2.64 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area
  • Clear Plastisol covered AL6061-T6 aluminum body saves times and lowers installation costs and eliminates taping
  • Clear plastisol allows visual confirmation that conductor is properly inserted
  • Range-taking capability reduces number of connectors necessary to carry in inventory
