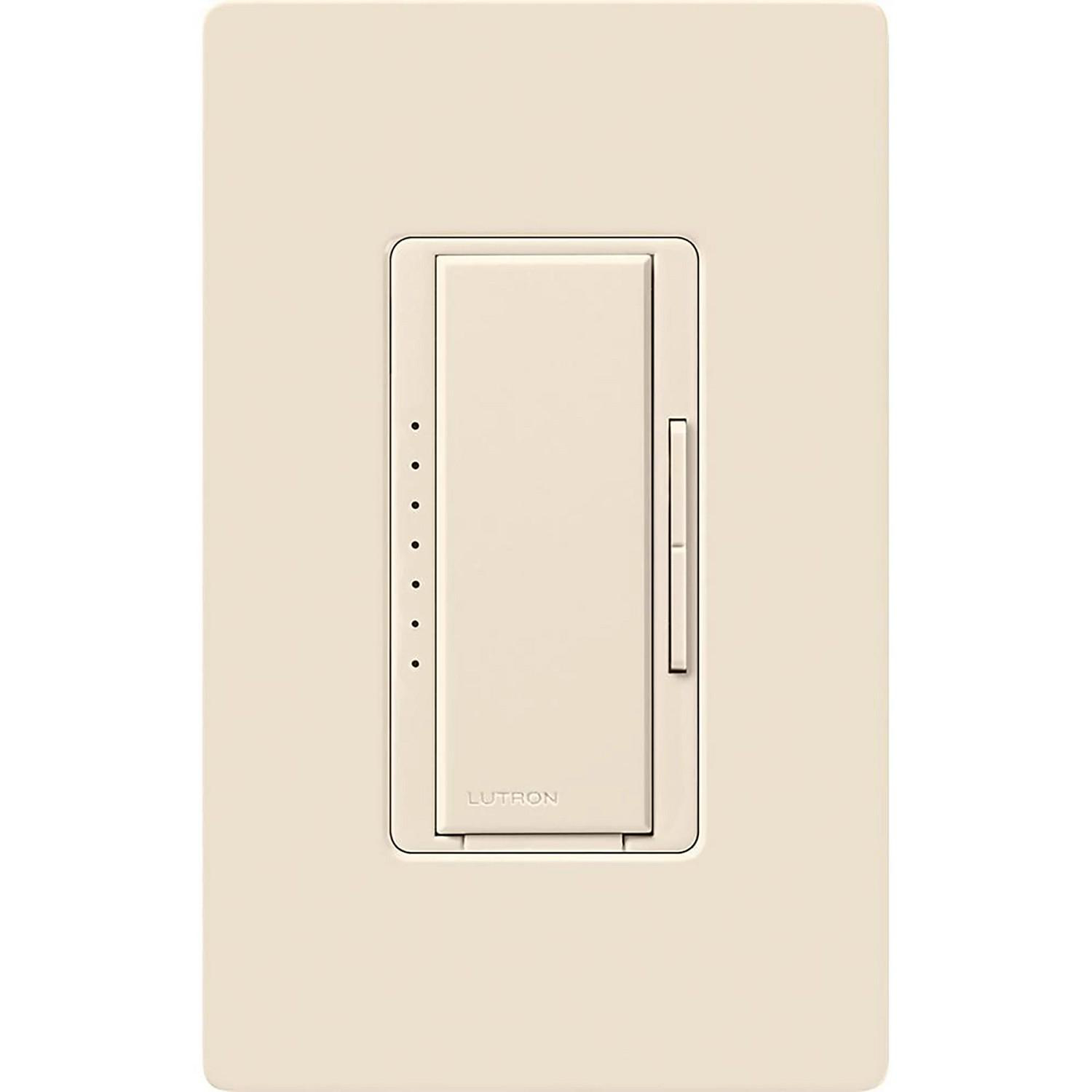

Product image for Dimmer 1-pole/3-way/multi-location 120V light-almond
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

Dimmer 1-pole/3-way/multi-location 120V light-almond

Manufacturer: Lutron Dimmers | Catalog # MACL-153M-LA | Electrozad South Part # 288035
*Call For Price*
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Maestro® C.L® Dimmer for dimmable CFL and LED bulbs. Digital adjustment. Dimmable bulb performance varies from bulb to bulb and among manufacturers. Allows you to adjust the low end of the dimming range based on the capability of your bulbs. HED™ technology. Advanced dimming circuitry designed for compatibility with most high-efficacy light bulbs. Allows different bulb types to be dimmed together effectively (ex: LED and halogen). Advanced programming. Preset lights to automatically turn on to a predetermined level every time. Adjust fade time for lights turning on and off allows lights to come on and/or turn off gradually.

Technical Information

Actuator
Tapswitch
Applications
For Universal and LED/CFL Retrofit, Lighting Control
Bulb Compatibility
Dimmable CFLs,Dimmable LEDs,Halogens,Incandescents
Connection Type
Screw Terminal
Enclosure
Plastic
Enclosure Material
Plastic
Frequency
50 Hz
Insulation Material
Plastic
Material
Plastic
Max Wattage
150 W
Mounting Type
Wallbox
Number of Poles
1
Operating Temperature
0 - 40 degrees C
Power Rating
150 W LED/CFL or 600 W Incandescent/Halogen
Size
75 in
Standard
UL CSA NOM
TC Connection
Screw terminals
Type
Multi-Location, 3 Way, Tap Switch, Digital Fade, Phase Cut-Off/Cut-On
Voltage
120 V
Wattage
600 W

Manufacturer Information

Brand
Lutron
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276010672
Color
Almond
Environmental Conditions
0 - 90% RH Non-Condensing, Indoor Use Only
Finish
Gloss
GTIN
00784276010672

Certifications & Compliance

Country of Origin
Mexico
