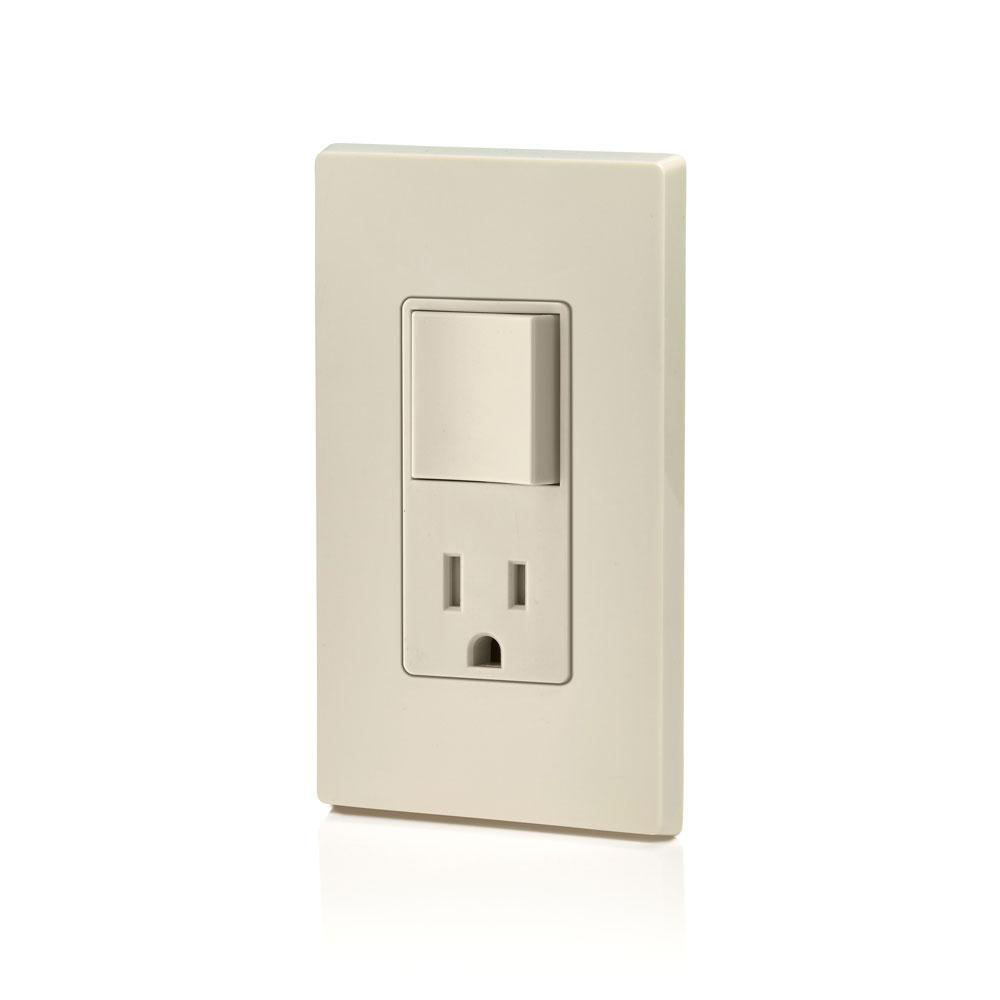

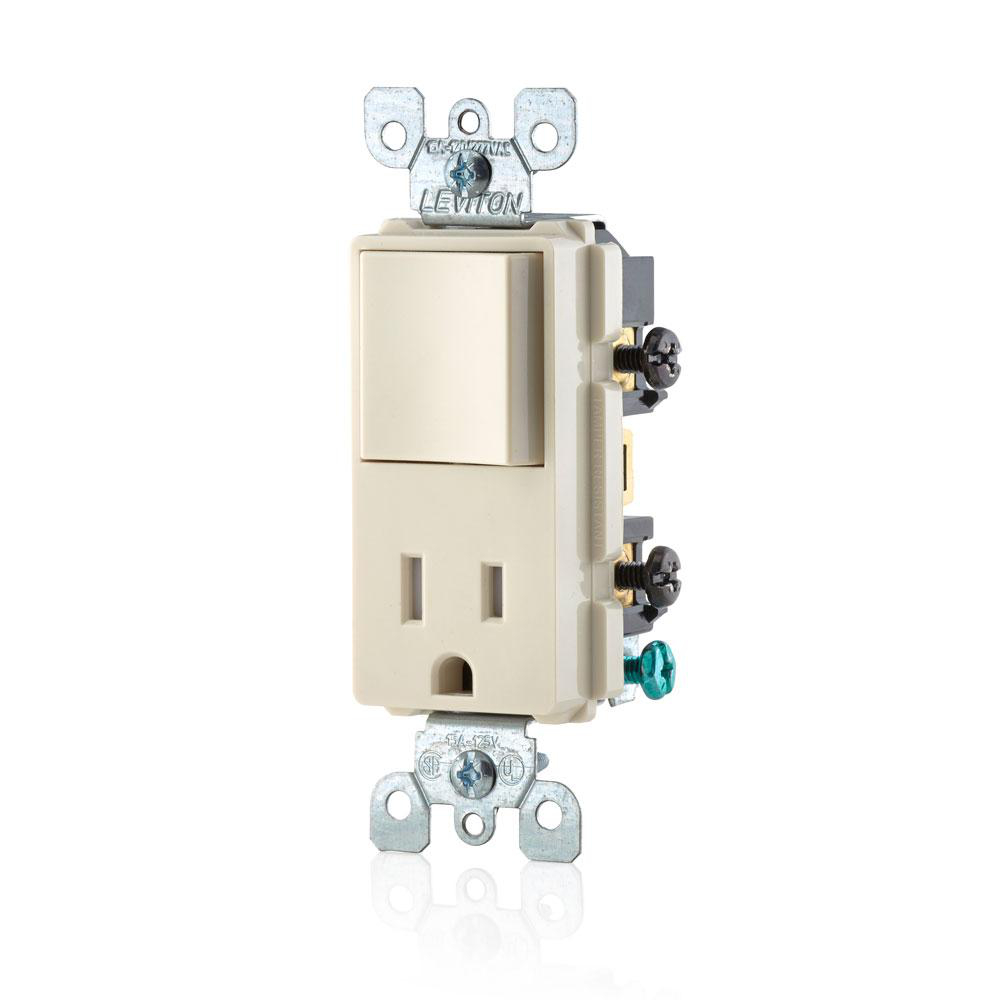

Product image for Combination device tamp res 1pol 120V 15A lt alm
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 4
To:
CC:

Combination device tamp res 1pol 120V 15A lt alm

Manufacturer: Leviton Manufacturing | Catalog # T5625-T | Electrozad South Part # 287892
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
Tamper-resistant rocker style single pole combination decora switch and receptacle.

Technical Information

Amperage
12 A
Applications
For Commercial
Body Material
Thermoplastic
Grounding
Grounding
Horsepower
1-1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Recessed/Flush
NEMA
5-15R
Number of Poles
1
Standard
CSA Certified (LR 3413),NOM Certified (057),UL Listed (E7458)
Style
Combination Switch
Termination Type
Side Wire
Torque
14 lb-in
Type
Single Receptacle, Tamper-Resistant
Voltage
120 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477382363
Color
Light Almond
GTIN
00078477382363

Dimensions

Height
4.18 in
Length
1.31 in
Warranty Length
2 yr
Width
1 in

Certifications & Compliance

Country of Origin
Mexico
