C4

Manufacturer: Burndy | Catalog # C4 | Electrozad South Part # 286651
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing

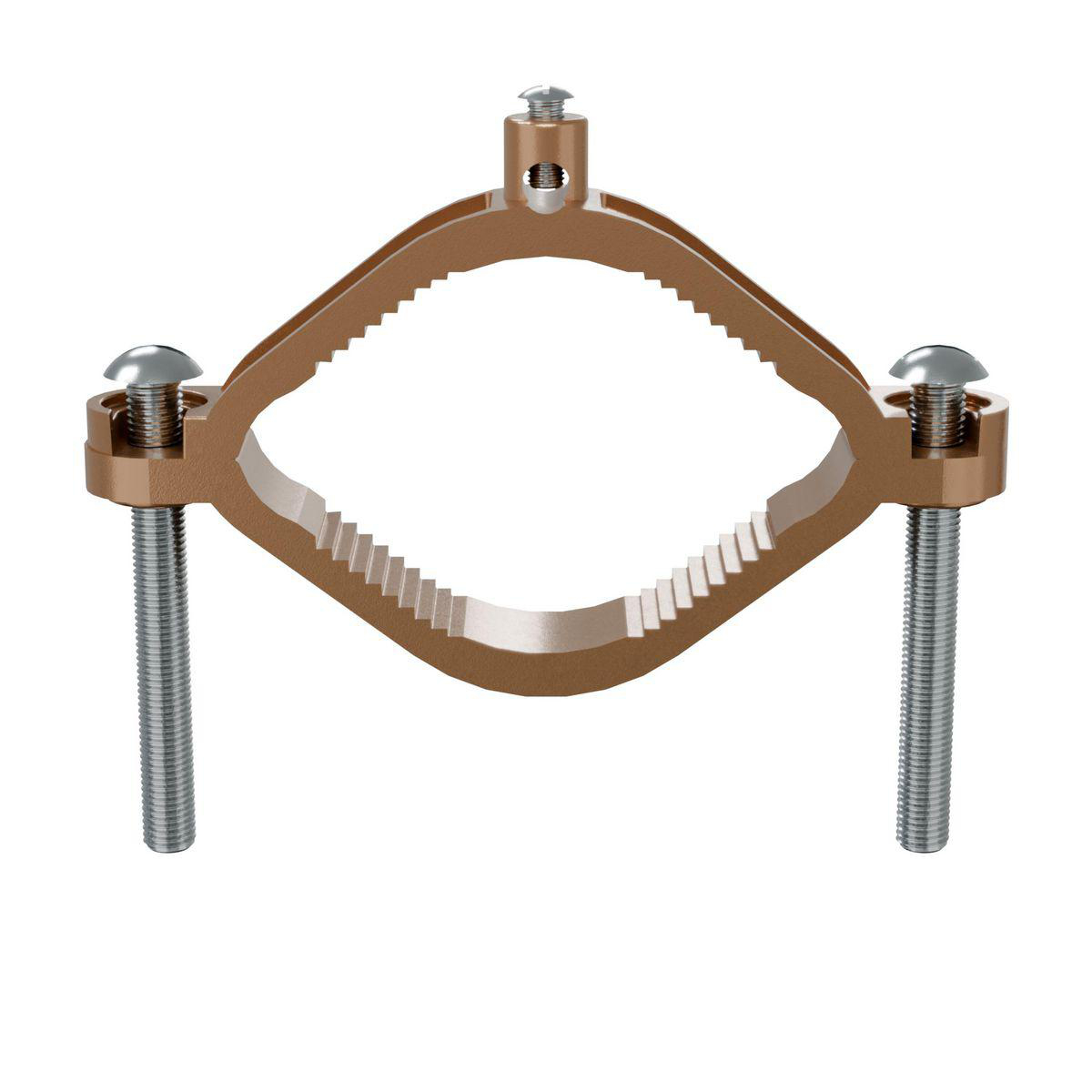

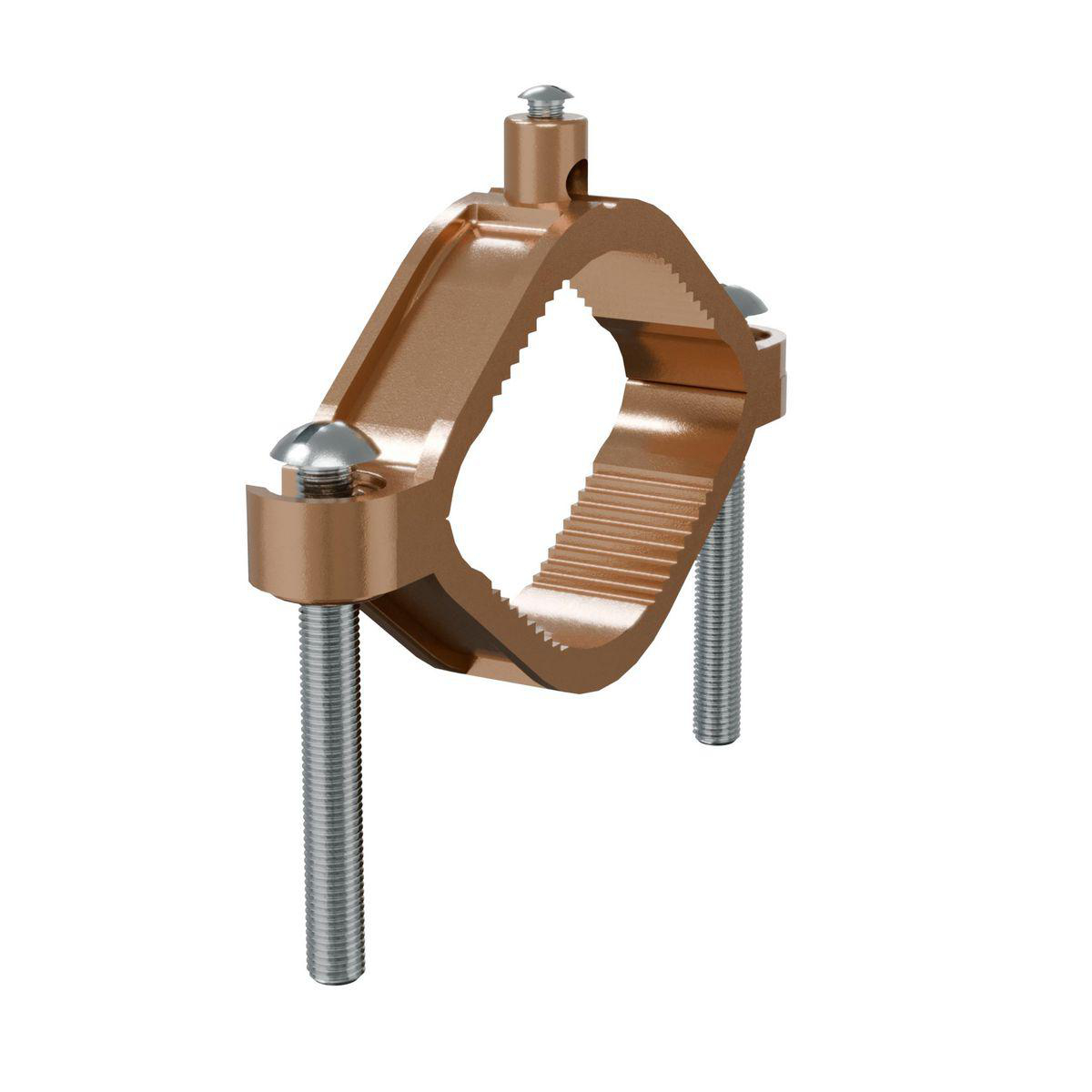

Cast Bronze Ground Clamp, Cable to Water Pipe or Copper Tube, 10 - 2 AWG, 2-1/2"- 4" Water Pipe.

Technical Information

Applications
For Bare Wire, Connecting Grounding Conductor to Water Pipe or Copper Tube
Conductor Size
10 AWG
Material
Bronze Alloy
Plated?
No
Plating Type
Unplated
Standard
3R,C22.2 No. 0.4,C22.2 No. 18,C22.2 No. 94 Enclosures Types 1,UL 514C,UL467,UL50 Enclosures Types 1
Type
Telecom Grounding Busbar

Manufacturer Information

Brand
Burndy
Sub Brand
Clamp-Pro

General Product Info

12-Digit UPC
781810142325
Finish
Zinc Plated
GTIN
00781810142325
Product UPC
78181014232

Dimensions

Height
4.13 in
Hole Size
0.31 in
Length
6.31 in
Overall Length
6.25 in
Width
24 mm

Certifications & Compliance

Country of Origin
India
CSA
Yes
Overview
  • Supplied with Zinc-plated steel hardware
  • Connects grounding conductor to water pipe or copper tube
