Receptacle duplex smooth face illuminated 1/2HP 15A 125V white

Manufacturer: Leviton Manufacturing | Catalog # M8200-ILW | Electrozad South Part # 286364

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

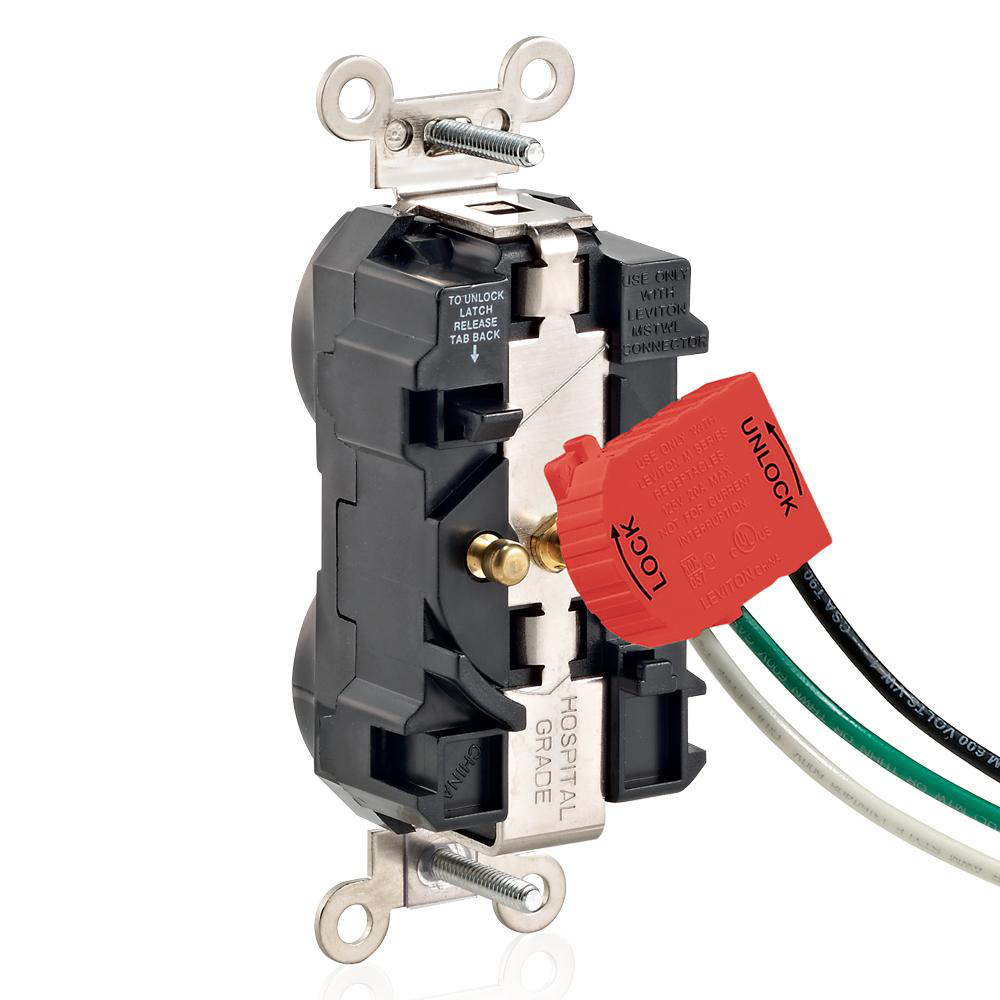

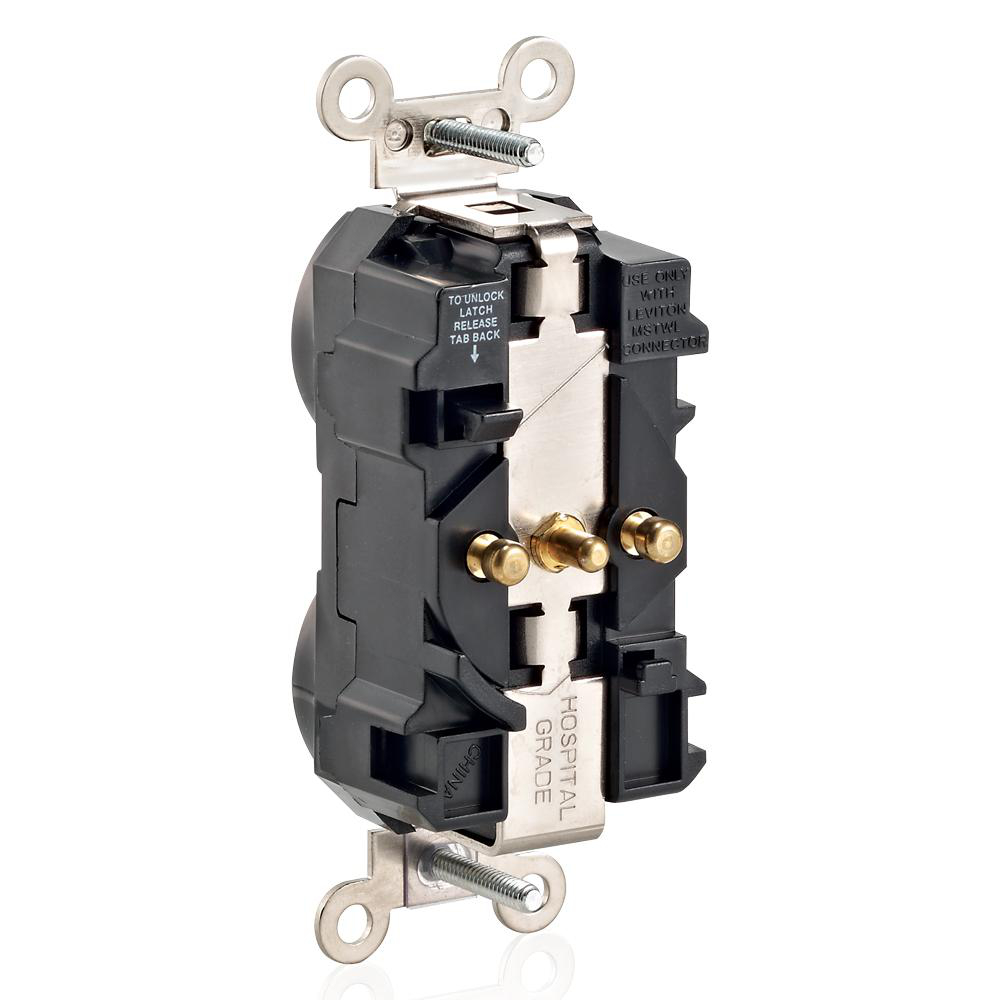

Lev-Lok® Extra heavy-duty hospital grade smooth face illuminated duplex receptacle. Nickel-plated brass single-piece, wrap-around mounting strap with integral ground contacts, for continuous conductivity and secure ground path. Constructed with impact-resistant thermoplastic nylon, assuring durability of the device. Extra heavy-duty triple wipe T contacts provide superior plug retention force to meet the rugged plug demands found in healthcare environments. Grounding clip permanently secured to strap makes for most reliable ground connection. Smooth face prevents dirt from collecting and makes cleaning faster and simpler. Four corner latches securely fasten the devices face to the body. Wiring modules are also available with UL Type XHHW-2 building wire for low leakage current applications.

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
Nylon
Connection Type
Modular Terminal
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Nylon
Flamability Class
Rated V-2 Per UL94
Grade
Extra Heavy-Duty Hospital
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic Rubber
Mounting Type
Wall Box
NEMA
WD-6
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.53 W x 1.22 D IN
Standard
ANSI C-73
TC Connection
Modular Terminal
Temperature Rating
-40 to 60 degrees C
Temperature Rise
200 %
Termination Type
Modular
Type
Duplex Outlet,Straight Blade
Voltage
125 V
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Lev-Lok®

General Product Info

12-Digit UPC
078477552988
Color
White
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477552988

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
CSA
152105
