Receptacle duplex tamper-resistant 15A 125V white

Manufacturer: Leviton Manufacturing | Catalog # MT820-ILW | Electrozad South Part # 286363

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

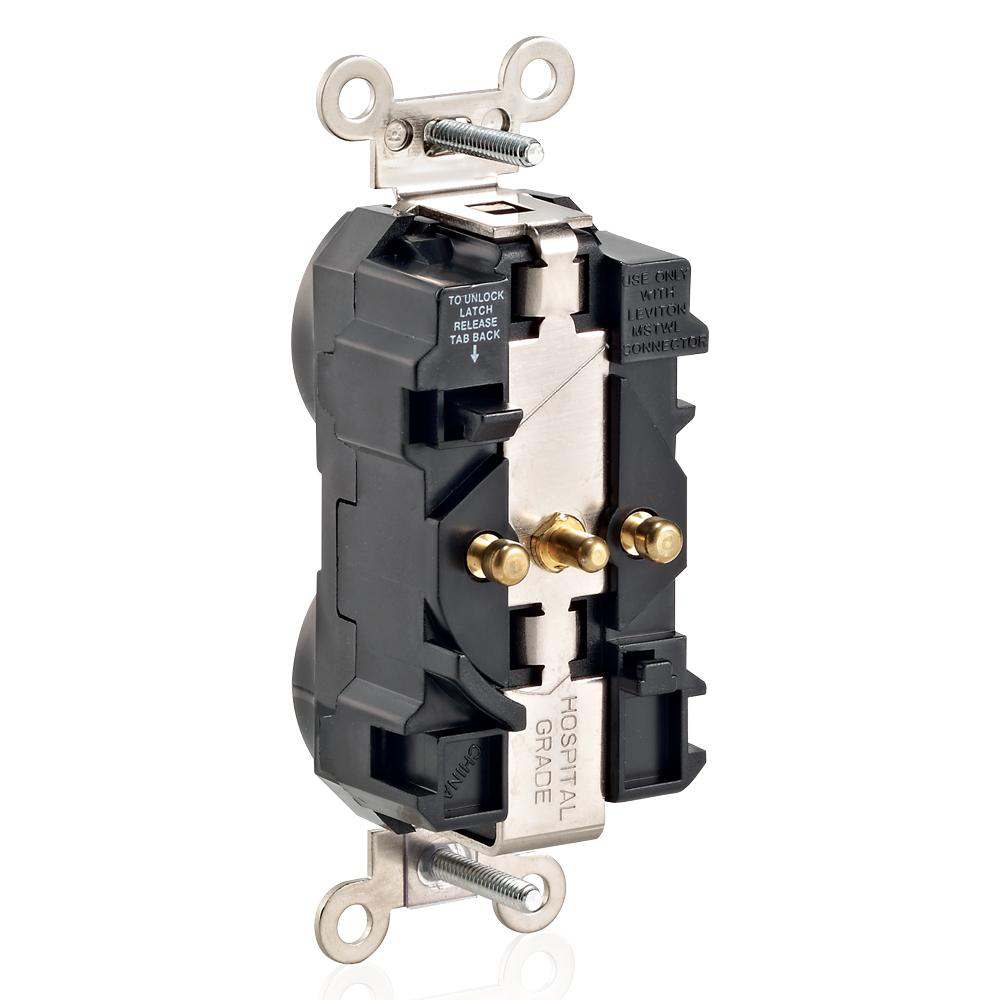

Lev-Lok® Extra heavy-duty hospital grade modular duplex receptacle. Isolated ground, tamper-resistant. Constructed with impact-resistant thermoplastic nylon cover and body. Smooth face prevents dirt from collecting. Four corner latches securely fasten the receptacle's face to the body. Large triple-wipe, brass T line contacts for superior contact and conductivity. 12 AWG THHN wire leads, 6 inch length on MSTWL series wiring modules. Grounding clip permanently secured to strap for easy, simple and secure installation. Receptacle face includes threaded brass bushing for reliable, secure wallplate attachment. Wiring module locks and latches to the receptacle body providing double the connection security. Receptacle to be installed only with Leviton MSTWL series wiring modules. MSTWL wiring module shipped separately with protective cover and factory-installed circuit ID label. Backed by a limited 10-year warranty.

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
Nylon
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 (Min.) V
Face Material
Nylon
Grade
Extra Heavy-Duty Hospital
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
NEMA
WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.55 W x 1.56 D IN
Standard
ANSI C-73
TC Connection
Modular Terminal
Temperature Rating
-40 to 60 degrees C
Temperature Rise
200 %
Termination Type
Modular
Type
Duplex Outlet,Straight Blade
Wire Size
12 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Lev-Lok®

General Product Info

12-Digit UPC
078477553060
Color
White
GTIN
00078477553060

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
