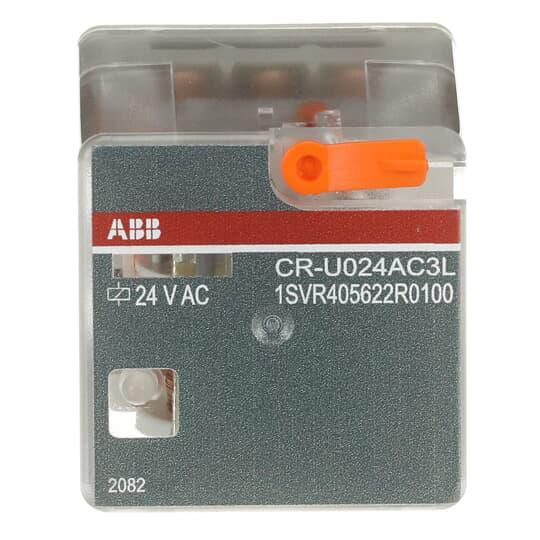

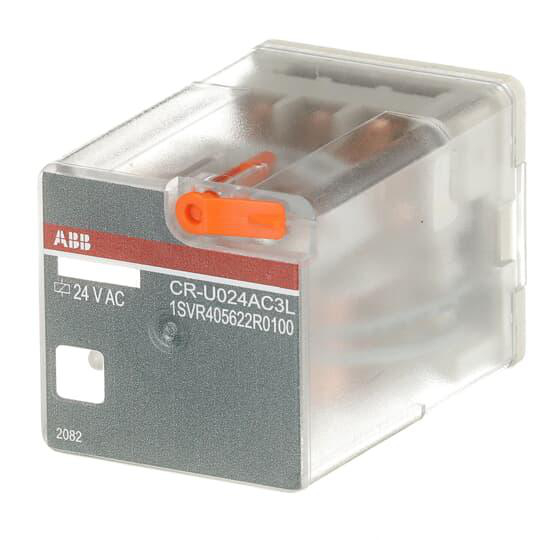

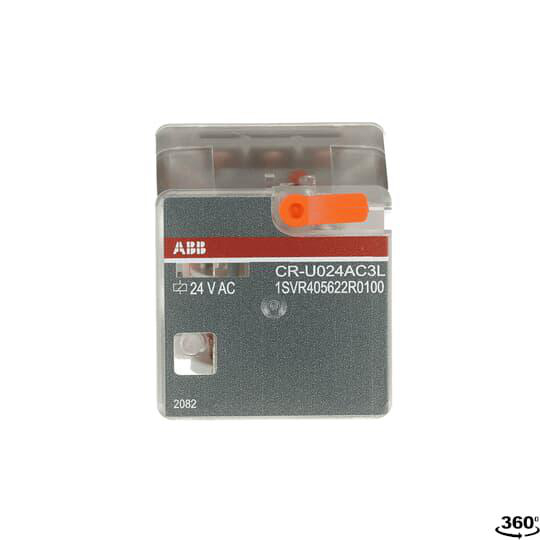

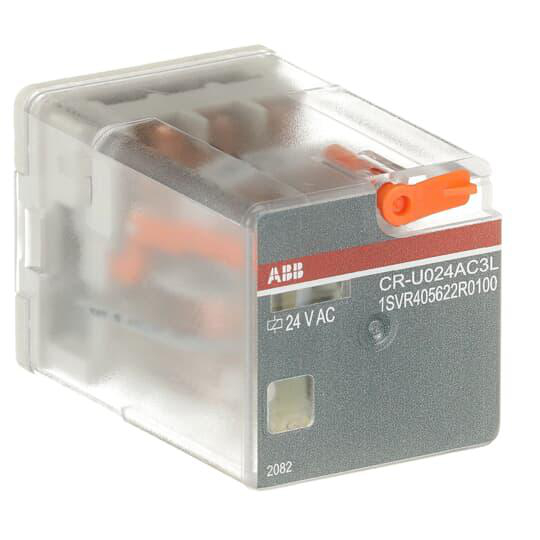

CR-U024AC3L PLUGGABLE RELAY

Manufacturer: ABB Inc | Catalog # 1SVR405622R0100 | Electrozad South Part # 286155
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
24 VAC pluggable interface relay with 3 c/o with LED outputs and 250 V, 10A contact rating

Technical Information

Applications
For Electrical Isolation, Amplification and Signal Matching Between the Electronic Controlling
Contact Configuration
SPDT - 3 CO
Contact Material
Silver Nickel
Mounting Type

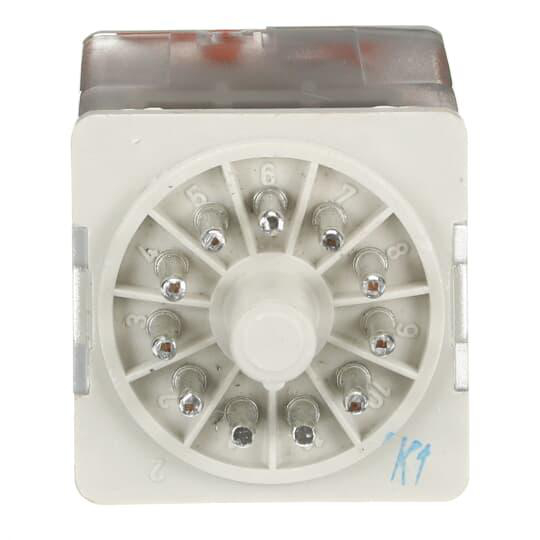

11 Pin Socket
Number of Poles
1
Operating Cycles
20000000
Power Rating
2.8 VA at 50 Hz, 2.5 VA at 60 Hz
Resistance
75
Size
1.38x1.38x2.14 Inches
Temperature Rating
-40 to 55 degrees C
Type
Universal

Manufacturer Information

Brand
ABB
Sub Brand
CR-U

General Product Info

12-Digit UPC
662019361413
GTIN
04013614498565
