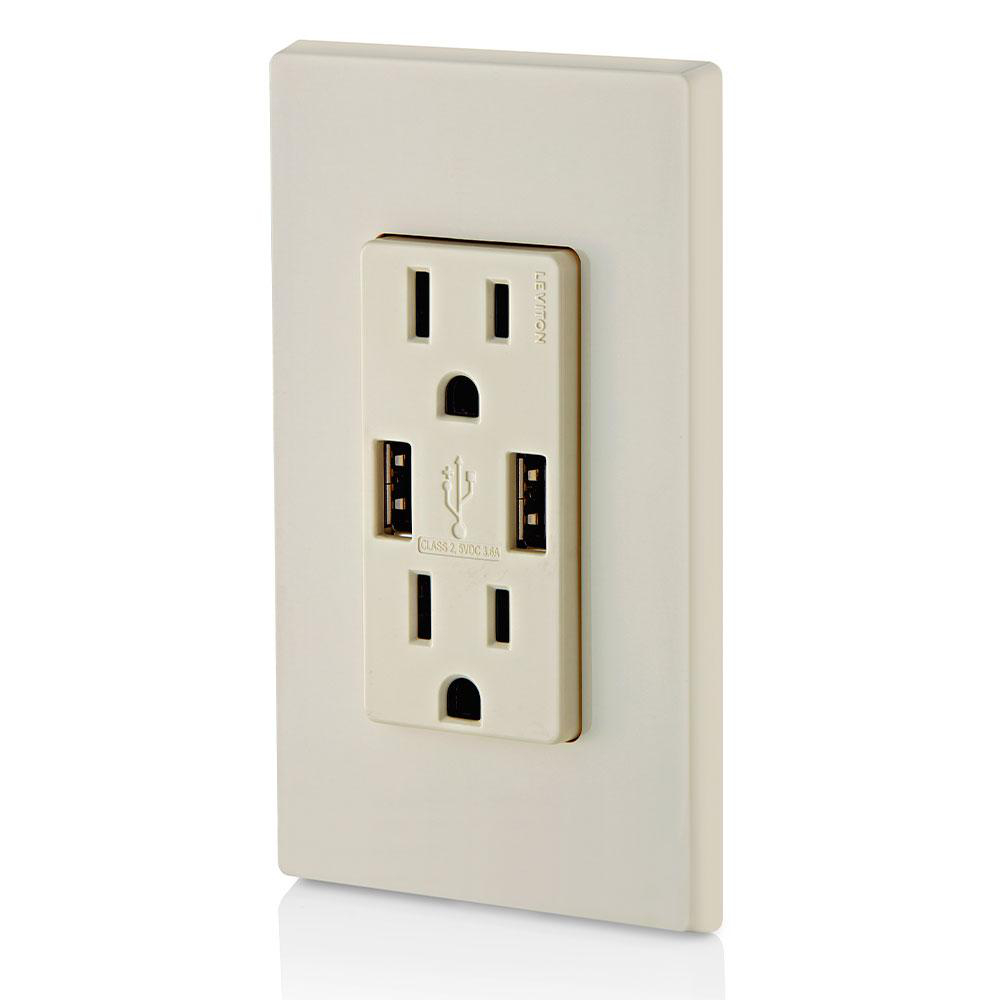

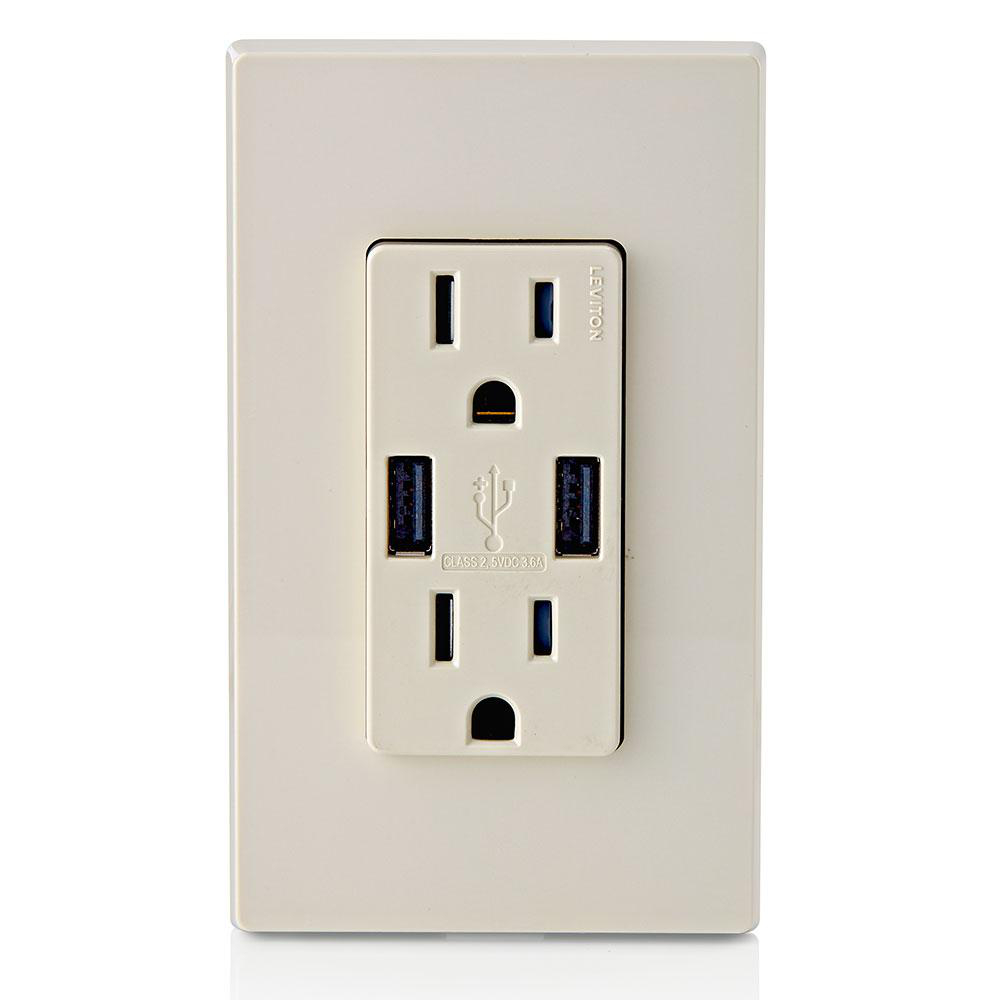

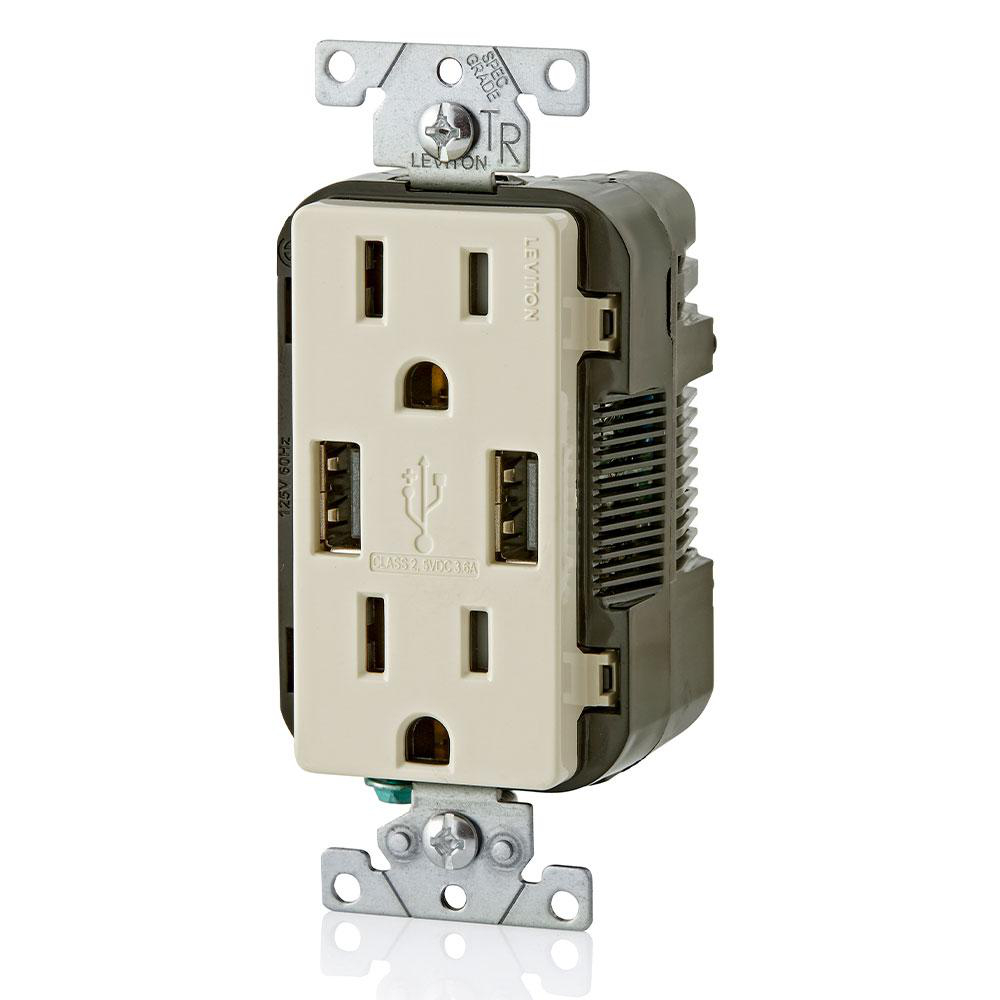

Receptacle USB charger combo 125V 15A light almond

Manufacturer: Leviton Manufacturing | Catalog # T5632-T | Electrozad South Part # 284745
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet Technical Drawing
The Leviton USB charger/tamper-resistant duplex receptacle offers two high-powered USB ports with 3.6A of charging power and two 15A or 20A/125V tamper-resistant receptacles. It has the capability to charge two USB powered electronic devices utilizing its two USB ports, leaving the two tamper-resistant receptacles free for other uses. The Leviton USB charger/tamper-resistant duplex receptacle is designed to charge tablets, smart and mobile phones, gaming devices, e-readers, digital cameras and a host of other electronic devices.

Technical Information

Amperage
15 A
Applications
Commercial/Residential
Body Material
Thermoplastic,Thermoplastic
Cover Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Residential/Commercial Specification,Residential/Commercial Specification
Grounding
Grounding,Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Flush, Screw
NEMA
5-15R
Number of Outlets
2
Operating Temperature
40 degrees C
Standard
CCSAus
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Torque
12-14 lb-in
Type
Very High Speed, Digital
Voltage
125 V

Manufacturer Information

Brand
Leviton
Sub Brand
USB Devices

General Product Info

12-Digit UPC
078477683897
Color
Light Almond
GTIN
00078477683897
Product Type
Outlet/USB Combo

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
China
