Receptacle straight blade non-grounding 30A 208V black

Manufacturer: Leviton Manufacturing | Catalog # 8330 | Electrozad South Part # 284343
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Flush mounting receptacle, straight blade. Industrial grade, non-grounding. Fits any wallplate with 2.465 inch diameter center hole.

Technical Information

Amperage
30 A
Applications
Commercial
Body Material
Nylon
Conductor Size
14 - 6 AWG
Connection Type
Side Wired
Device Type
Power Device
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Grade
Commercial
Grounding
Non-Grounding
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Box

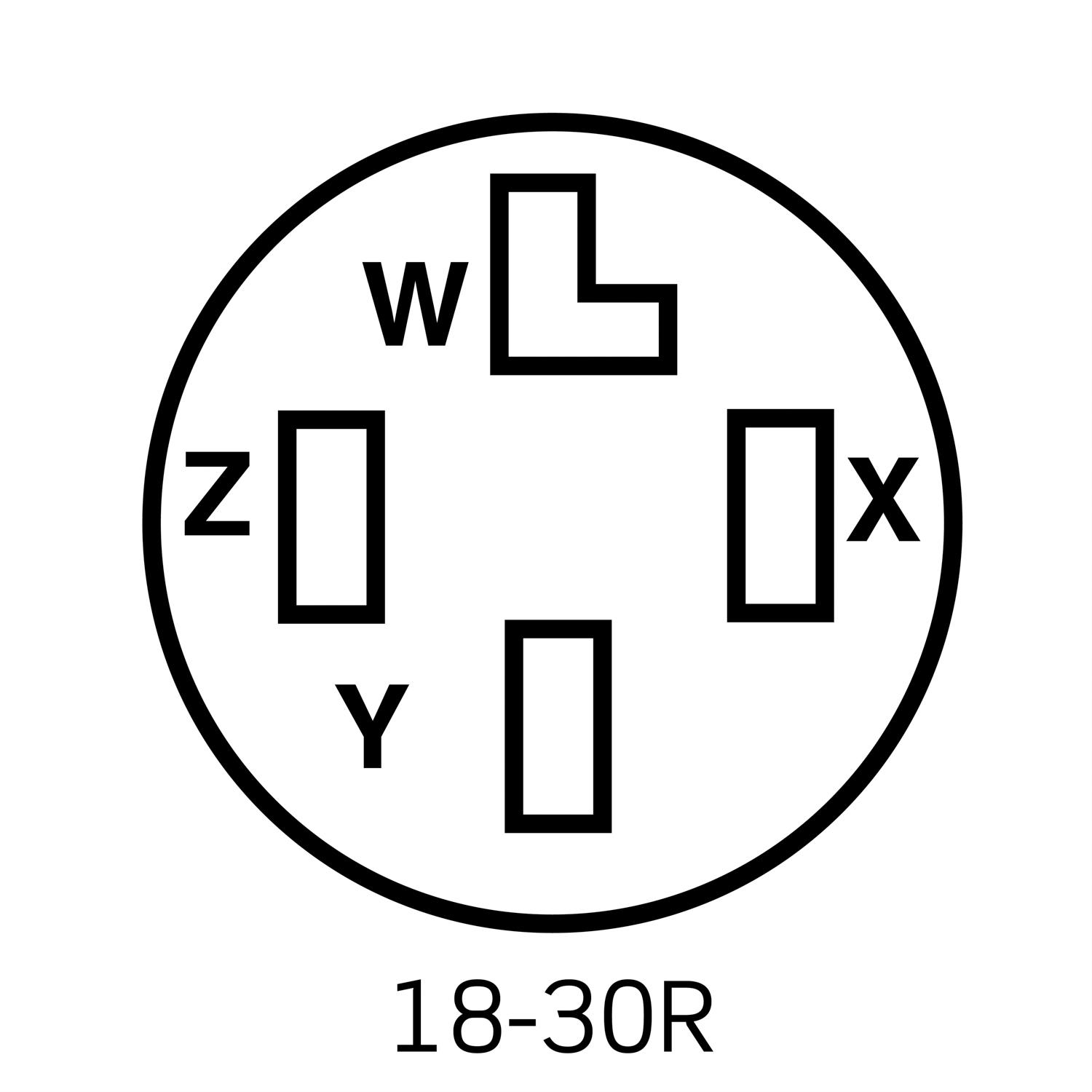

NEMA
18-30R
Number of Phases
3
Number of Poles
4
Number of Wires
4
Operating Temperature
-40 degrees C
Size
3.75 H x 2.75 W x 1.68 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Type
Power Receptacle
Voltage
120 V
Wire Count
4
Wire Size
14 - 6 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477843277
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477843277

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
