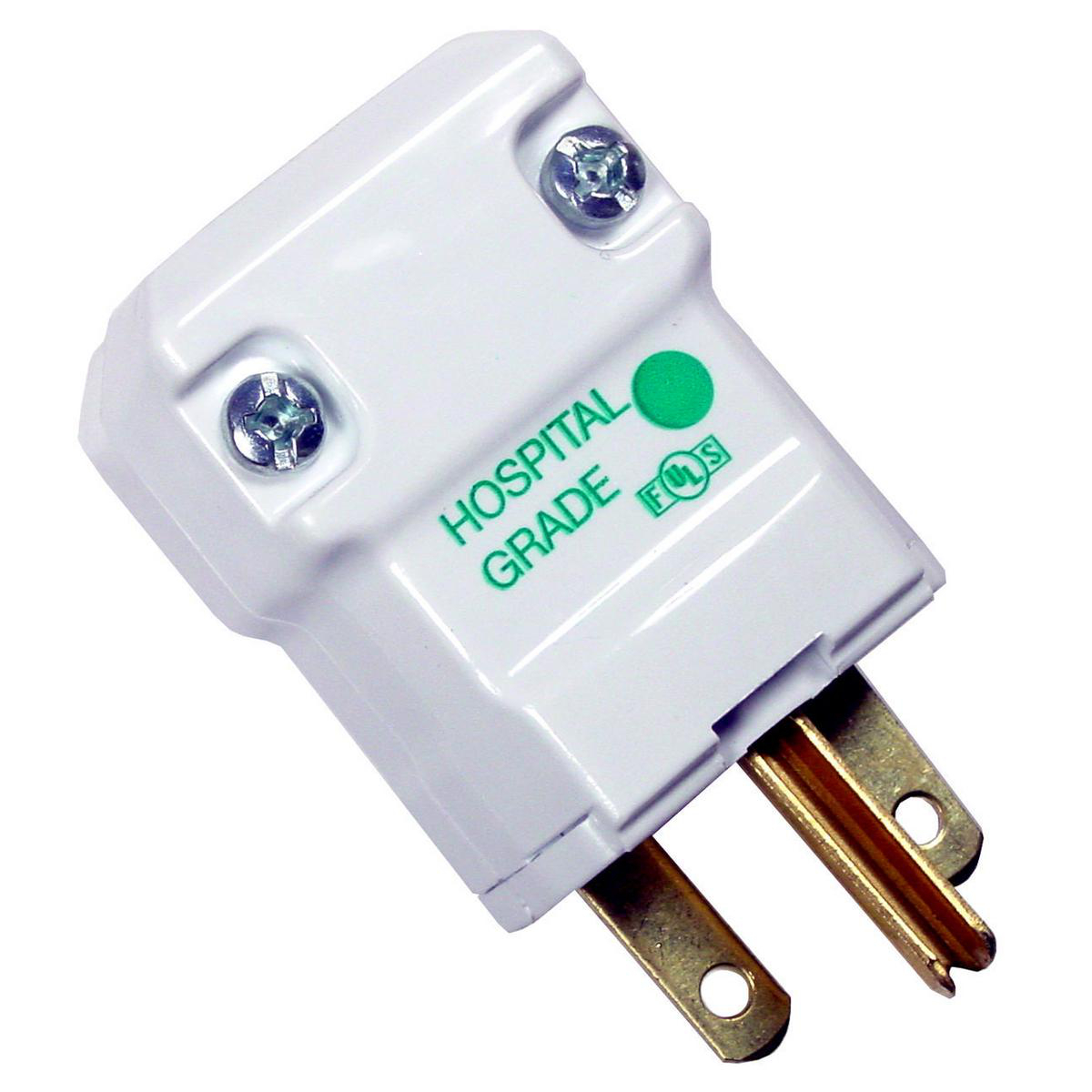

Product image for Plug 6-15P cable valise 2P 15A 250V HOSP white
Image thumbnail 0
Image thumbnail 1
To:
CC:

Plug 6-15P cable valise 2P 15A 250V HOSP white

Manufacturer: Hubbell Wiring Devices | Catalog # HBL8666V | Electrozad South Part # 284162
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Hubbell VALISE strait blade cable plugs and connectors are made of one piece yellow thermoplastic strait blade insert and cover that hold securely cable with 2 screws (full black, yellow & white model available). They come in version 2 poles, 3 wires, 15-20 amp, 125-250 volts.

Technical Information

Amperage
15 A
Applications
For Heavy Duty Applications
Conductor Size
18-12 AWG
Cord Type
Portable
Current
15 A
Grade
Hospital
Horsepower
1.5 hp
Material
Thermoplastic
Mounting Type
Cord
NEMA
6-15P
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2 No 42 File 280C,CSA,Fed. Spec. W-C-596,NEMA® WD-6,UL,UL498 File No. E1706
Style
Valise
TC Connection
Terminal Screws
Type
Standard Sized, Hospital Grade
Voltage
250 V
Wattage
3,750 Watt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Valise®

General Product Info

12-Digit UPC
783585016405
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTIN
00783585016405
Product Series
Hospital Grade
Product UPC
78358501640
Weight
0.1 lb

Dimensions

Height
1.13 in
Length
1.88 in
Width
1.5 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Powerful, offsetting cord grips clamp on individual conductors
  • Hinged one piece body design for easy assembly
