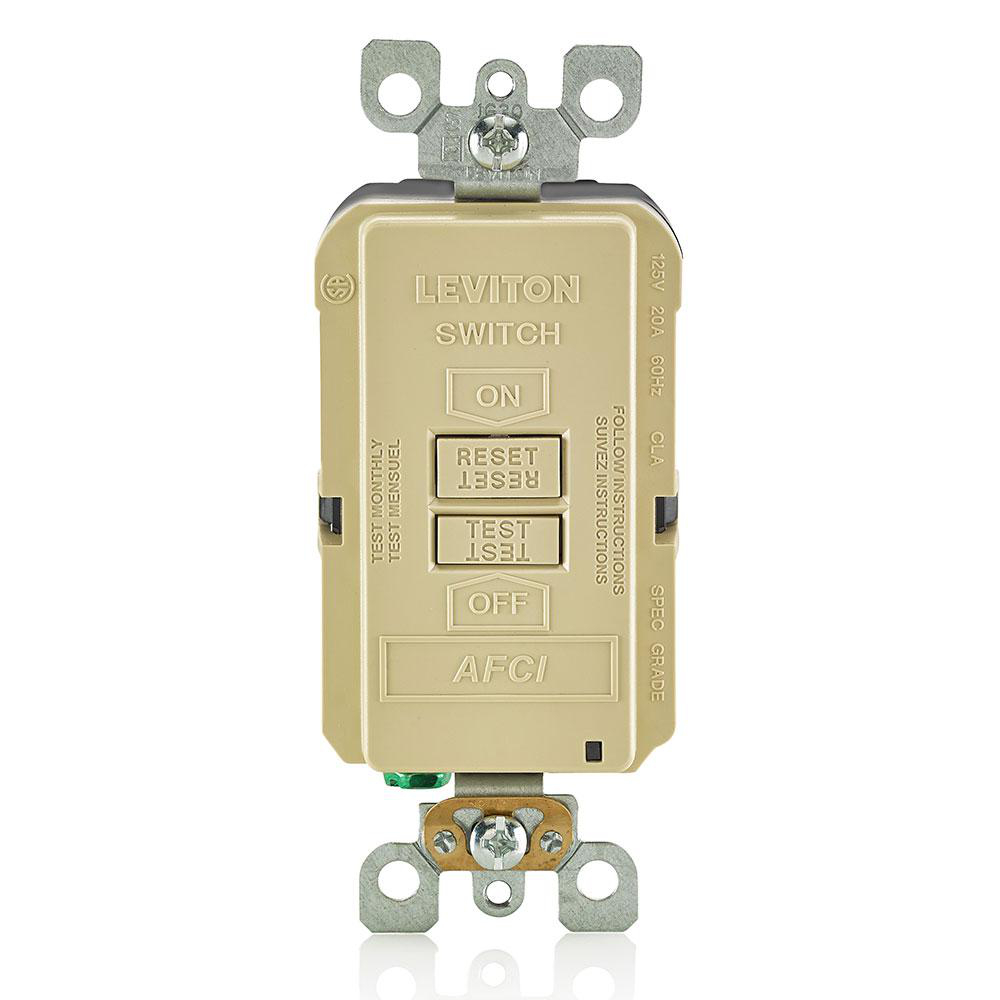

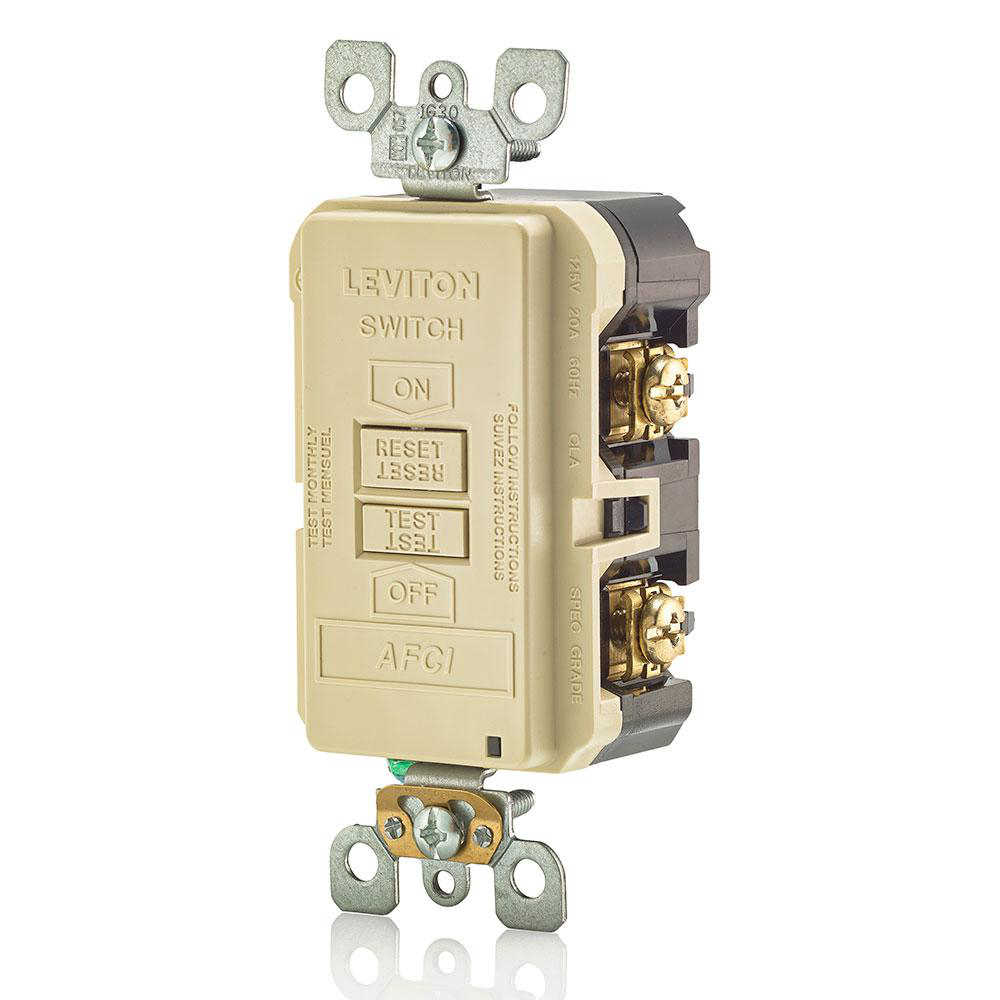

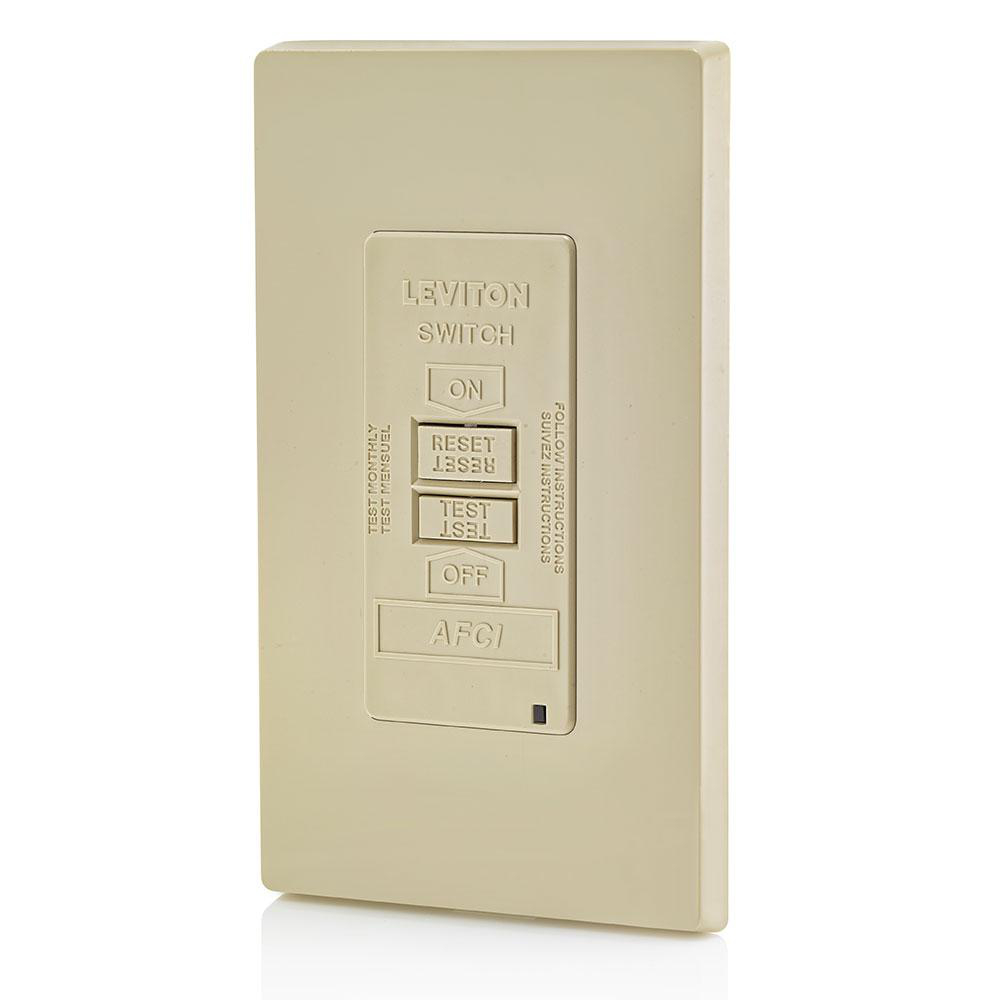

Receptacle AFCI blank feed-through 20AMP 125V ivory

Manufacturer: Leviton Manufacturing | Catalog # AFRBF-I | Electrozad South Part # 283329

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
The SmartlockPro® outlet branch circuit (OBC) AFCI receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home...s electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home...s electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCI...s are now required by the National Electrical Code® in many areas of the home.

Technical Information

Amperage
20 A
Body Material
Polycarbonate,Polycarbonate
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Dielectric Strength
1250 VAC
Face Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Grade
Commercial, Specification
Grounding
Self
Horsepower
1 hp
Material
Polycarbonate
Mounting Type
Wall
NEMA
WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
66 degrees C
Rated Insulation Voltage
1250 V
Standard
ANSI C-73,CSA,CSA,UL,UL
Temperature Rating
-35 degrees C to 66 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Blank Face
Voltage
125 V
Wire Count
3,3
Wire Type
Self Grounding

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT GFI RECEPTACLES

General Product Info

12-Digit UPC
078477622476
Color
Ivory
Environmental Conditions
UL 94-V2 Flammability
GTIN
00078477622476

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
