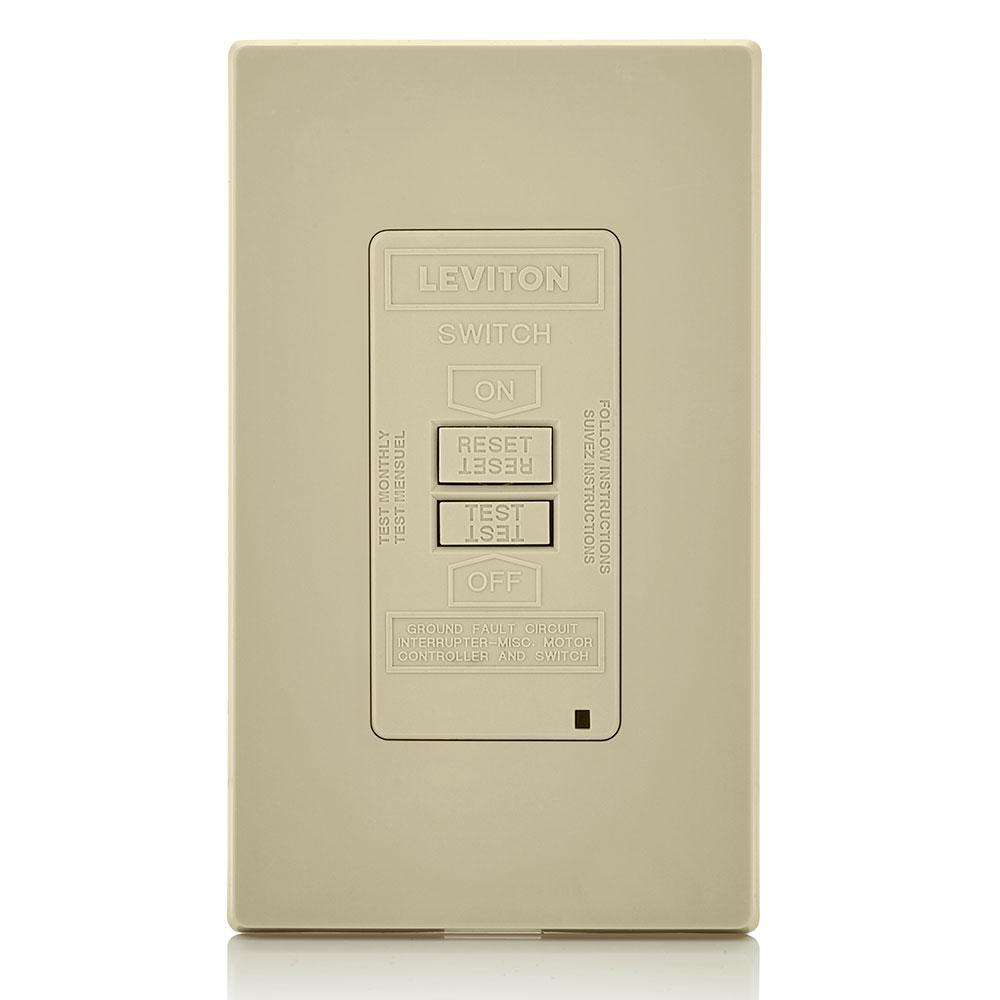

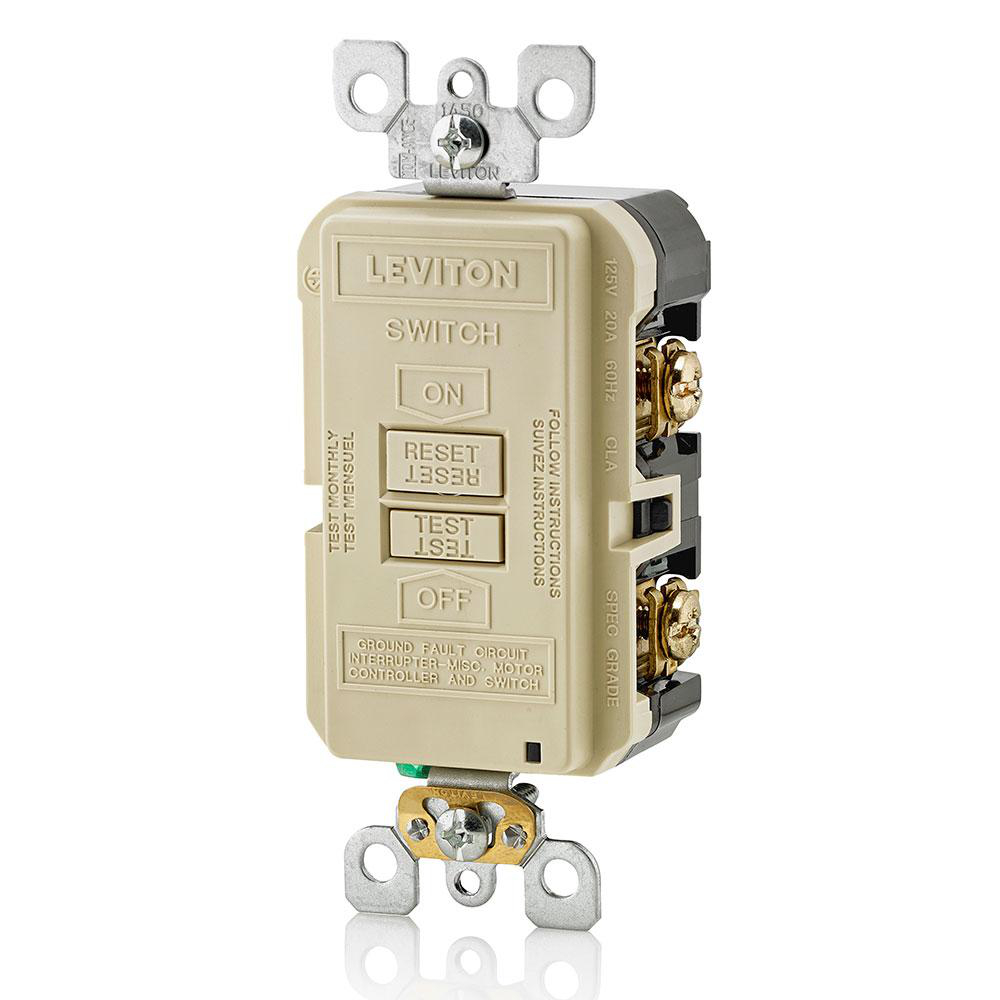

Receptacle GFCI blank face LED indicator 125V ivory

Manufacturer: Leviton Manufacturing | Catalog # GFRBF-I | Electrozad South Part # 283235
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet
SmartlockPro® Self-test GFCI receptacle with blank face with LED Indicator (with self-grounding clip) (20A feed-through rating only). Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted. Auto-monitoring exceeds the UL requirement. Auto adapts and shifts to more frequent testing if potential problem is detected. Testing frequency regularly updates protection status. Electronics are designed to minimize any false triggers.

Technical Information

Amperage
20 A
Applications
For Residential use
Body Material
Polycarbonate,Polycarbonate,Polycarbonate
Dielectric
1250 V
Face Material
Thermoplastic,Thermoplastic,Thermoplastic
Grade
Residential
Grounding
Self-Grounding
Horsepower
1 hp
Material
Polycarbonate/Thermoplastic
NEMA
5-20R
Number of Poles
2
Number of Wires
3
Operating Temperature
66 degrees C
Short Circuit Current
10 kA
Standard
CSA File Number LR18416,File Number E92074,UL
Temperature Rating
-35 degrees C to 66 degrees C
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Self-Test, Slim
Voltage
125 V
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477714539
Color
Ivory
GTIN
00078477714539

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
