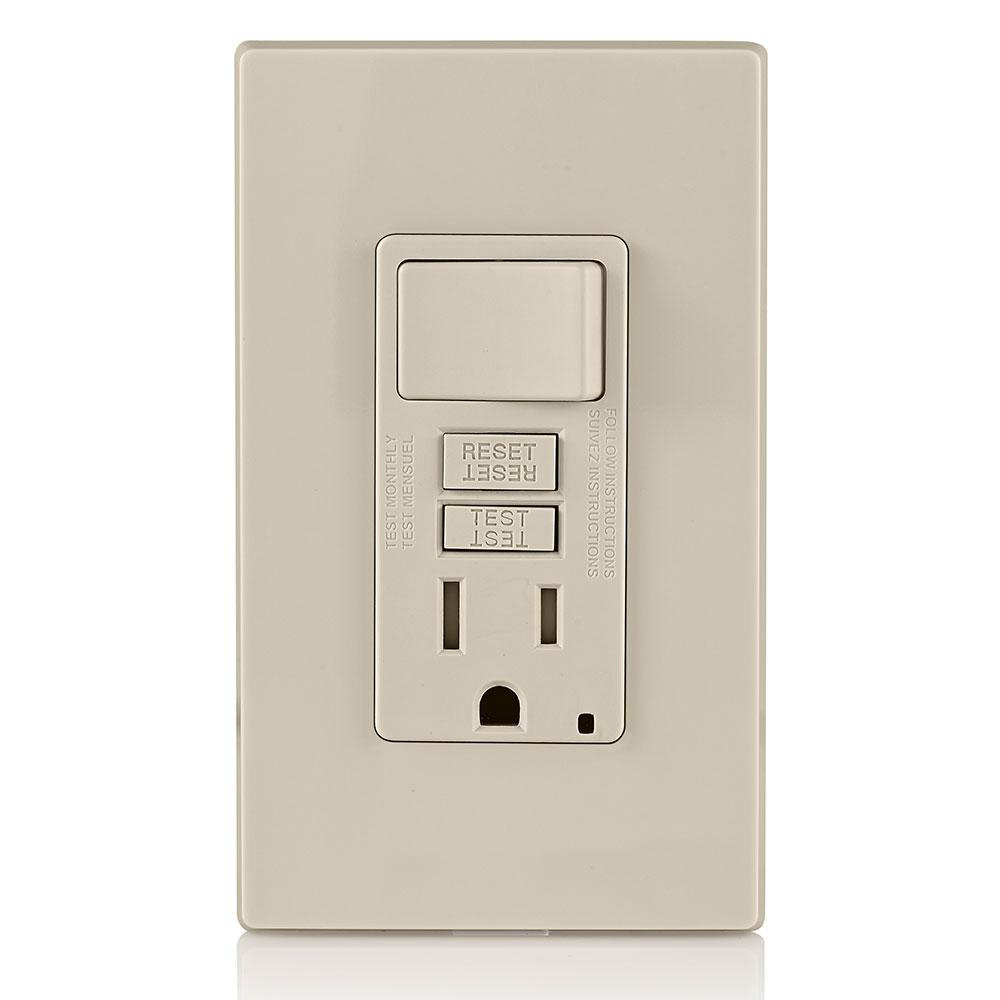

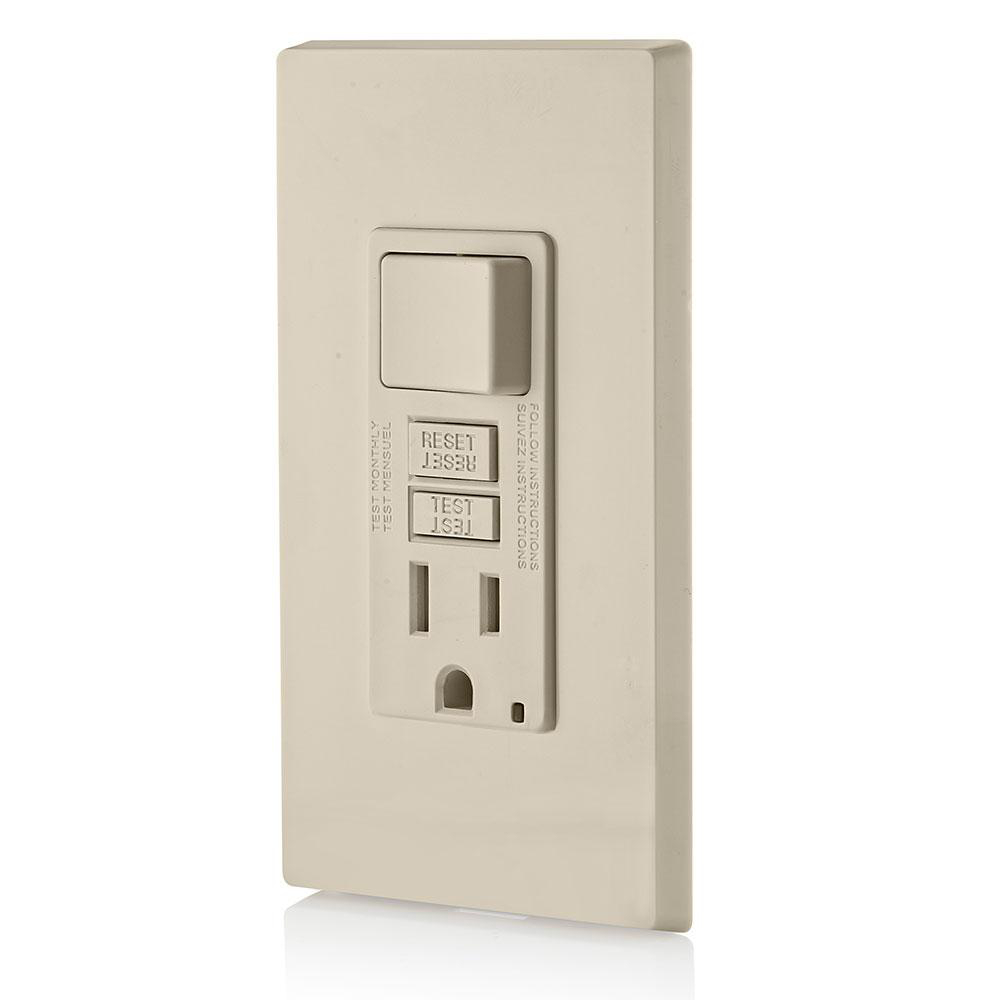

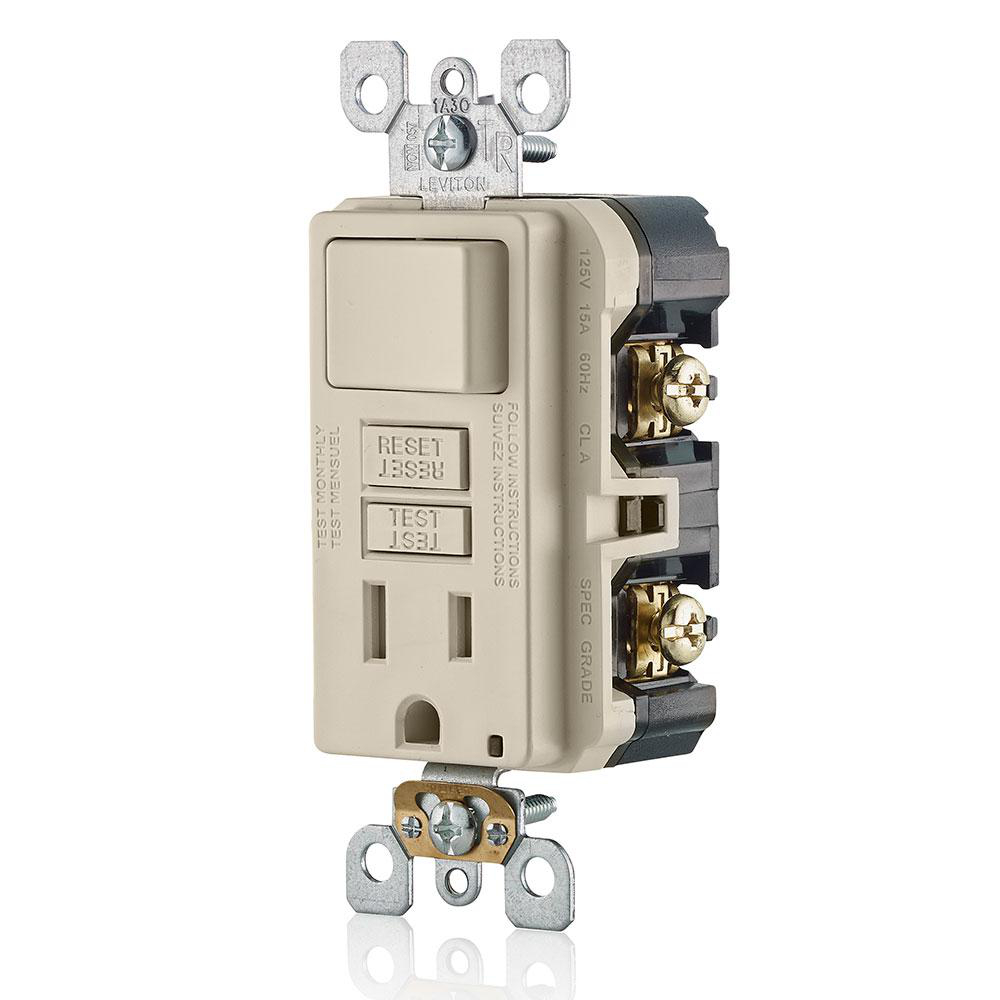

Product image for Receptacle GFCI combination switch LED 15A 125V light almond
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 7

To:
CC:

Receptacle GFCI combination switch LED 15A 125V light almond

Manufacturer: Leviton Manufacturing | Catalog # GFSW1-T | Electrozad South Part # 283234

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
SmartlockPro® Self-test GFCI tamper resistant receptacle provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted. NEMA 5-15R, back and side wired. Combination switch with LED indicator (with self-grounding clip). Patented bridge contact provides individual sets of contacts for GFCI receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed). Trip threshold meets or exceeds UL requirements for tripping time. Improved immunity to high frequency noise reduces nuisance tripping. Advanced electronics provides superior resistance to electrical surges and over-voltages. Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault. Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal. Silver alloy contacts. Impact-resistant thermoplastic cover and body.

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
Polycarbonate,Polycarbonate,Polycarbonate
Dielectric
1250 V
Face Material
Thermoplastic,Thermoplastic,Thermoplastic
Grade
Commercial,Commercial,Residential,Residential
Material
Polycarbonate/Thermoplastic
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Operating Temperature
66 degrees C
Short Circuit Current
10 kA
Standard
CSA,UL
Temperature Rating
-35 degrees C to 66 degrees C
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Self-Test, Tamper-Resistant
Voltage
125 V
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT GFI RECEPTAC

General Product Info

12-Digit UPC
078477714799
Color
Light Almond
GTIN
00078477714799

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Certifications
CSA,CSA
Country of Origin
China
