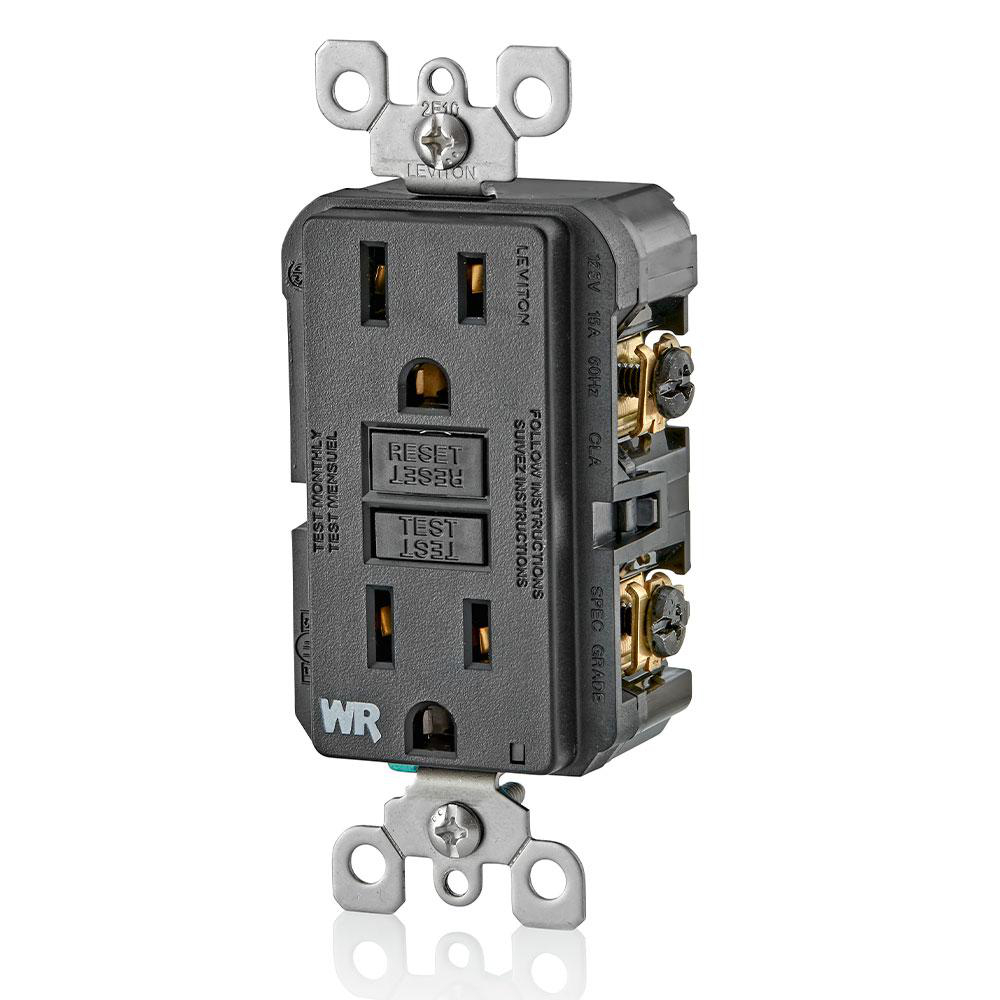

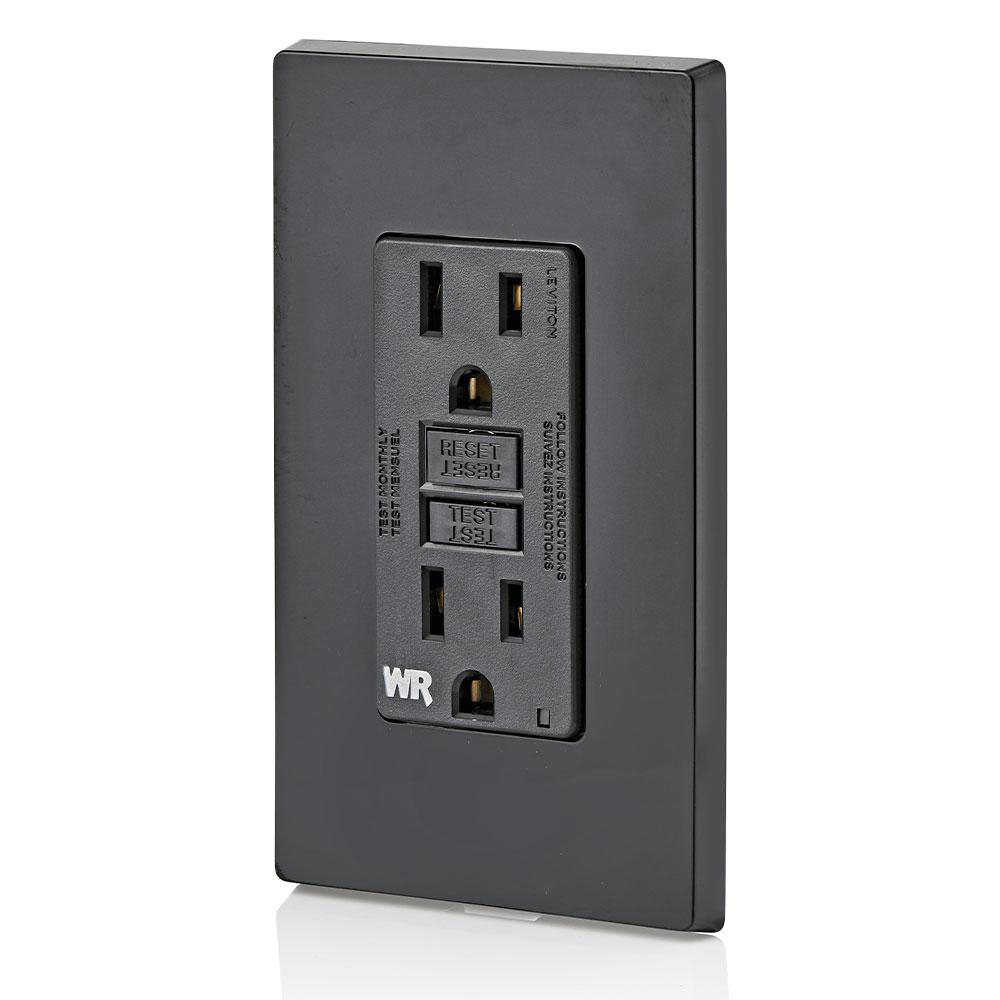

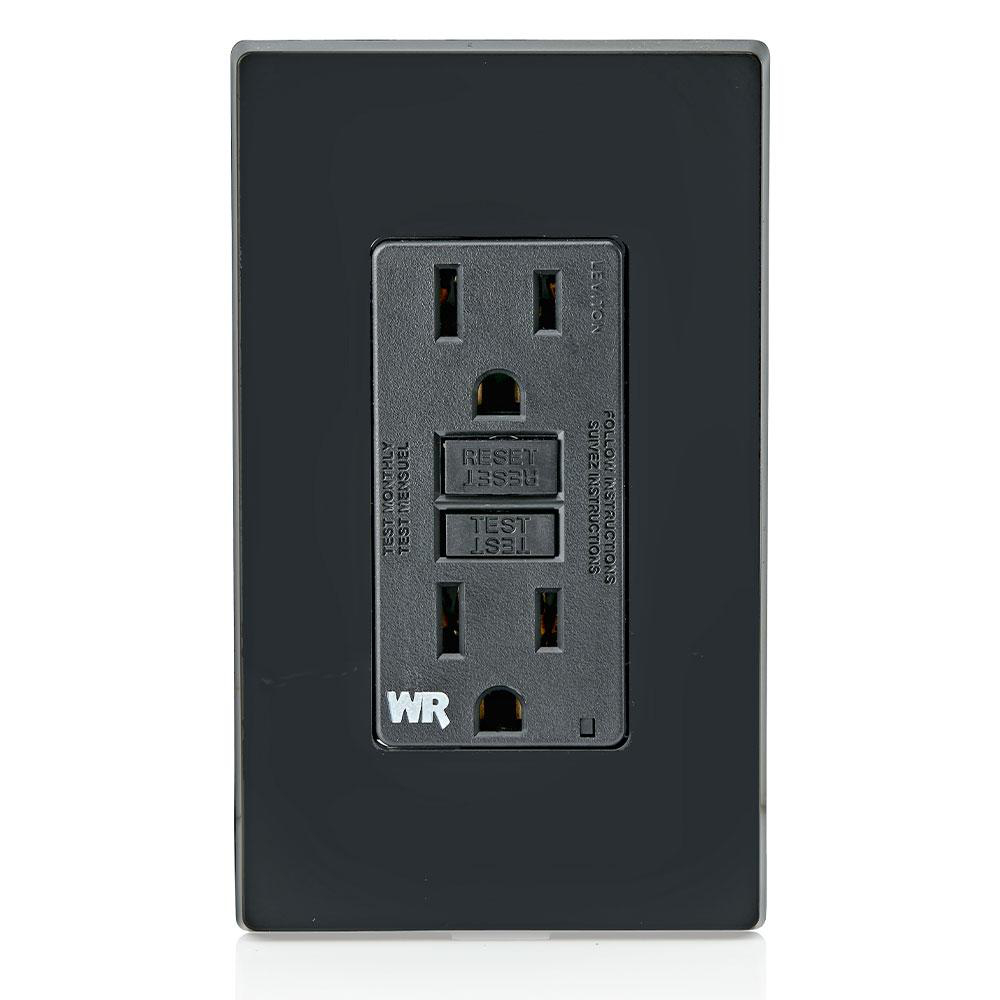

Receptacle GFCI duplex commercial grade LED 15A 125V black

Manufacturer: Leviton Manufacturing | Catalog # GFWR1-E | Electrozad South Part # 283220

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

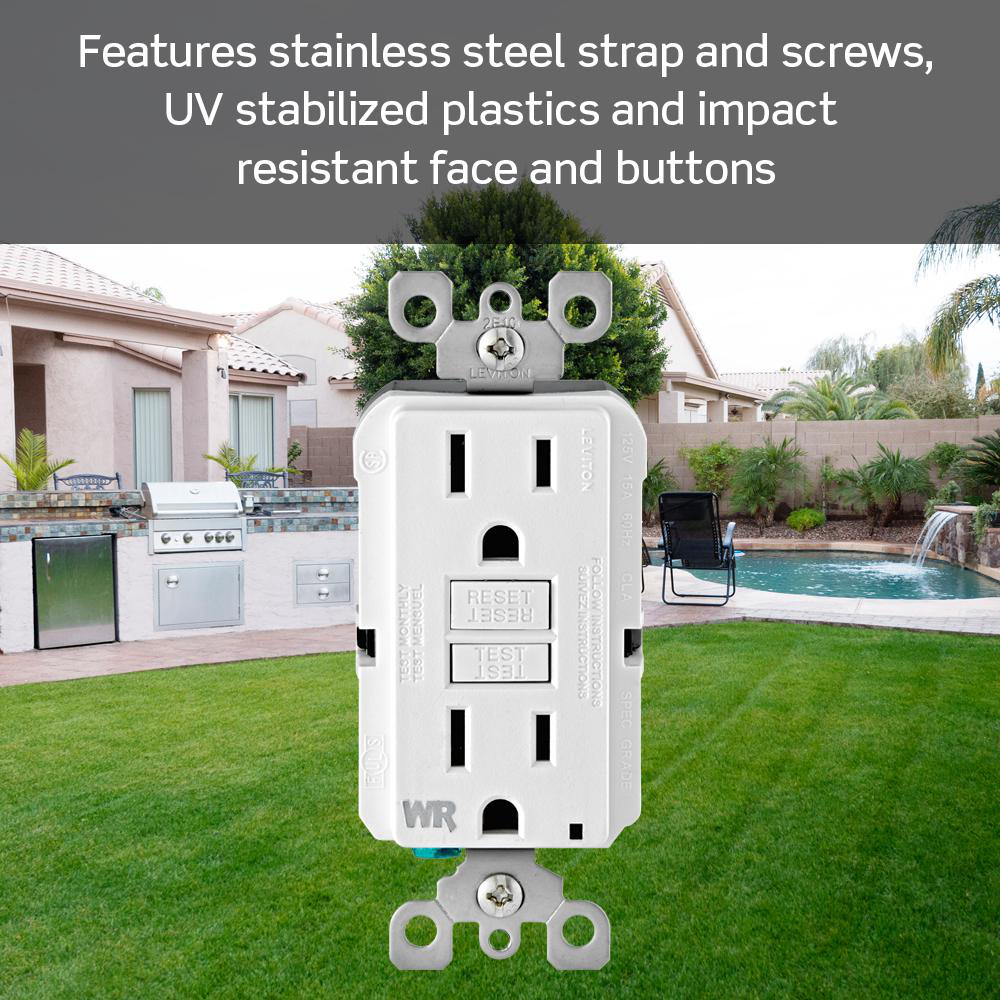

SmartlockPro® Self-test GFCI non-tamper resistant receptacle provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted. NEMA 5-15R, back and side wired. Duplex weather-resistant/outdoor grade with LED indicator. Patented bridge contact provides individual sets of contacts for GFCI receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed). Trip threshold meets or exceeds UL requirements for tripping time. Improved immunity to high frequency noise reduces nuisance tripping. Advanced electronics provides superior resistance to electrical surges and over-voltages. Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault. Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal. Silver alloy contacts. Impact-resistant thermoplastic cover and body.

Technical Information

Amperage
15 A
Applications
For Residential use
Body Material
Polycarbonate,Polycarbonate,Polycarbonate
Dielectric
1250 V
Face Material
Polypropylene,Polypropylene,Polypropylene
Grade
Residential
Grounding
Green Ground Screw
Horsepower
1 hp
Material
Polypropylene
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Operating Temperature
66 degrees C
Short Circuit Current
10 kA
Standard
CSA File Number LR18416,File Number E92074,UL
Temperature Rating
-35 degrees C to 66 degrees C
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Type
Self-Test, Slim
Voltage
125 V
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477709108
Color
Black
GTIN
00078477709108

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
