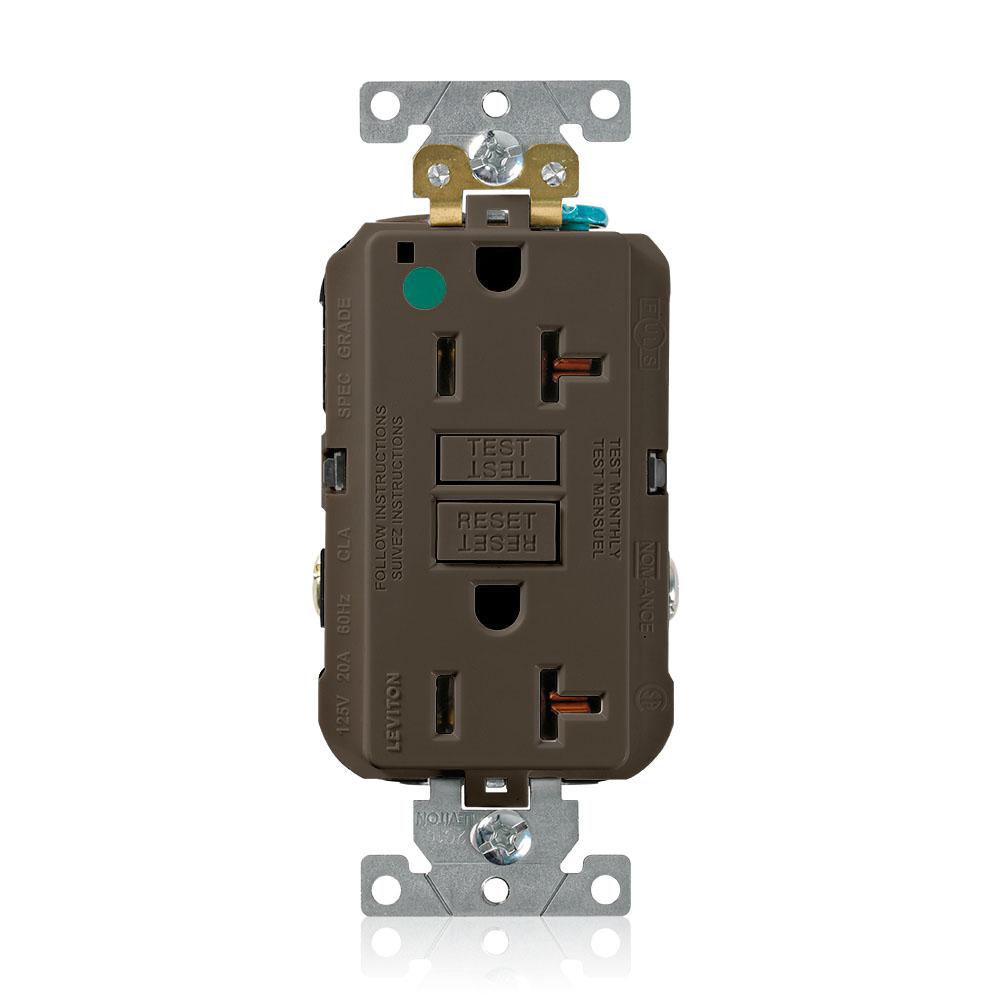

Product image for Receptacle GFCI hospital grade standard 20A 125V brown
Image thumbnail 0
Image thumbnail 1
To:
CC:

Receptacle GFCI hospital grade standard 20A 125V brown

Manufacturer: Leviton Manufacturing | Catalog # GFNT2-HG | Electrozad South Part # 283213
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet
SmartlockPro® Extra-heavy duty hospital grade self-test GFCI standard non-tamper resistant receptacle. NEMA 5-20R with matching wallplate. Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed). Improved immunity to high frequency noise reduces nuisance tripping. Advanced electronics provides superior resistance to electrical surges and over-voltages. Low-profile design is easy to install in all electrical boxes.

Technical Information

Amperage
20 A
Applications
Extra-Heavy Duty Hospital Grade
Body Material
Polycarbonate
Device Type
Duplex Receptacle Outlet
Enclosure
WD-6
Face Material
PBT
Flamability Class
Rated V-0 Per UL 94
Grade
Extra Heavy-Duty Hospital
Grounding
Self-Grounding
Horsepower
1 hp
Material
Polycarbonate/PBT
NEMA
5-20R
Number of Poles
2
Number of Wires
3
Operating Temperature
-35 degrees C
Short Circuit Current
10 kA
Standard
ANSI C-73,CSA C22.2 No. 42 & 144,FedSpec W-C-596,UL 498,UL 943
Temperature Rating
-35 degrees C to 66 degrees C
Termination Type
Back Wire,Side Wire
Type
Self-Test, Slim, Standard
Voltage
125 V
Wattage
1 hp
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477724989
Color
Brown
Environmental Conditions
UL 94 V-0 Flammability
GTIN
00078477724989

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Certifications
CSA,NOM-ANCE,UL
Country of Origin
China
