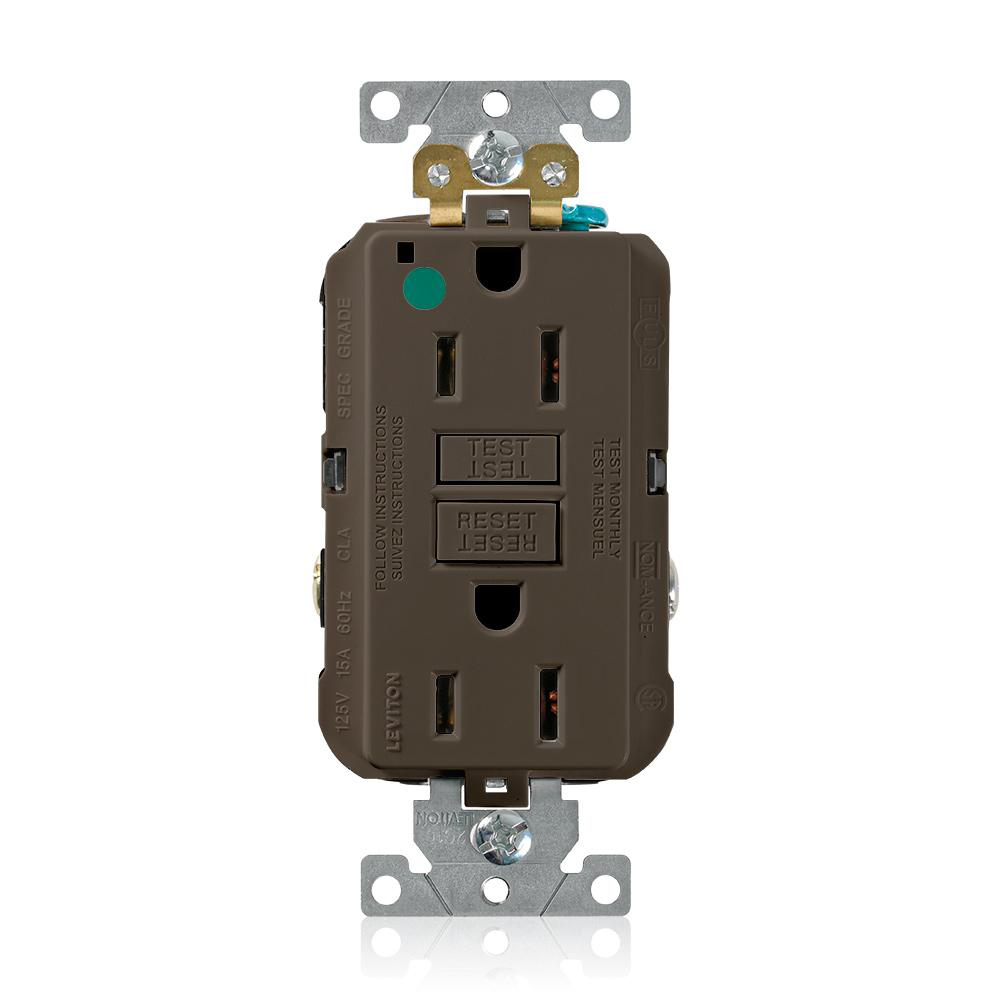

Receptacle GFCI hospital grade standard 15A 125V brown

Manufacturer: Leviton Manufacturing | Catalog # GFNT1-HG | Electrozad South Part # 283199
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet
SmartlockPro® Extra-heavy duty hospital grade self-test GFCI standard non-tamper resistant receptacle. NEMA 5-15R with matching wallplate. Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed). Improved immunity to high frequency noise reduces nuisance tripping. Advanced electronics provides superior resistance to electrical surges and over-voltages. Low-profile design is easy to install in all electrical boxes.

Technical Information

Amperage
15 A
Applications
Extra Heavy Duty, Hospitals
Body Material
Polycarbonate
Device Type
Duplex Receptacle Outlet
Enclosure
WD-6
Face Material
PBT
Flamability Class
Rated V-0 Per UL 94
Grade
Extra Heavy-Duty Hospital
Grounding
Self-Grounding
Horsepower
1 hp
Material
Polycarbonate/PBT
NEMA
WD-1
Number of Poles
2
Number of Wires
3
Operating Temperature
66 degrees C
Short Circuit Current
10 kA
Standard
ANSI C-73,CSA C22.2 No. 42 & 144,FedSpec W-C-596,UL 498,UL 943
Temperature Rating
-35 to 66 degrees C
Termination Type
Back Wire,Side Wire
Type
Tamper-Resistant
Voltage
125 V
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
C/I GFCI

General Product Info

12-Digit UPC
078477724996
Color
Brown
GTIN
00078477724996

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Certifications
CSA,NOM-ANCE,UL
Country of Origin
China
