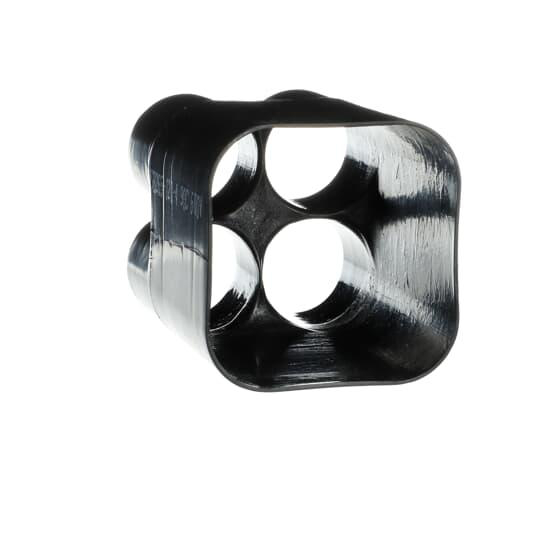

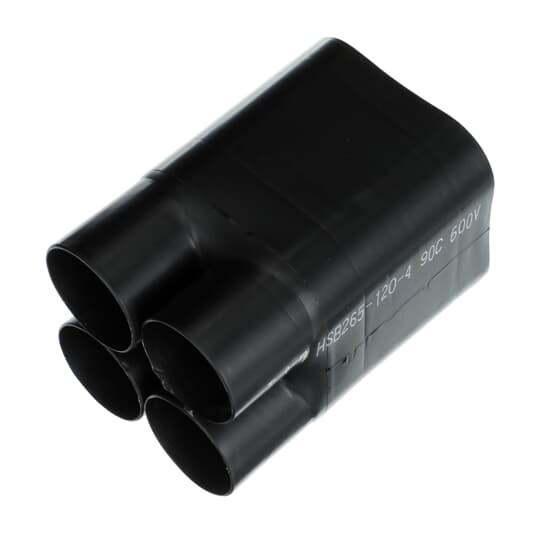

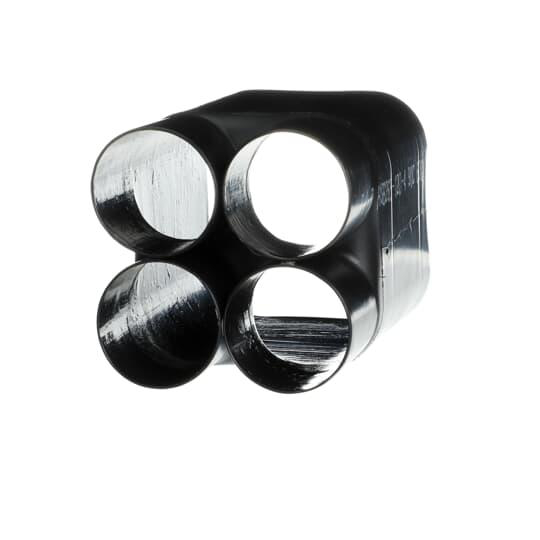

Heat-shrink boot breakout 4leg 3/0AWG-1000kcmil

Manufacturer: ABB | Thomas & Betts | Catalog # HSB265-120-4 | Electrozad South Part # 282305
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual
SHRINK-KON™ heat-shrinkable breakout boot with thermoplastic adhesive liner provides complete environmental protection and insulation. Strain relief and mechanical protection. Shrink temperature of 135 ..C.

Technical Information

Applications
For 4-Core Cables
Conductor Size
3/0 AWG - 1000 MCM
Shrink Ratio
3:1
Temperature Rating
-55 to 100 degrees C
Type
Heavy Wall
Wall Thickness
0.13 in

Manufacturer Information

Brand
ABB
Sub Brand
Shrink-Kon®

General Product Info

12-Digit UPC
786210872216
Color
Black
GTIN
00786210872216

Dimensions

Length
9.45 in ; 240.03 mm
Overall Length
9.45 in
Thickness
0.13 in
