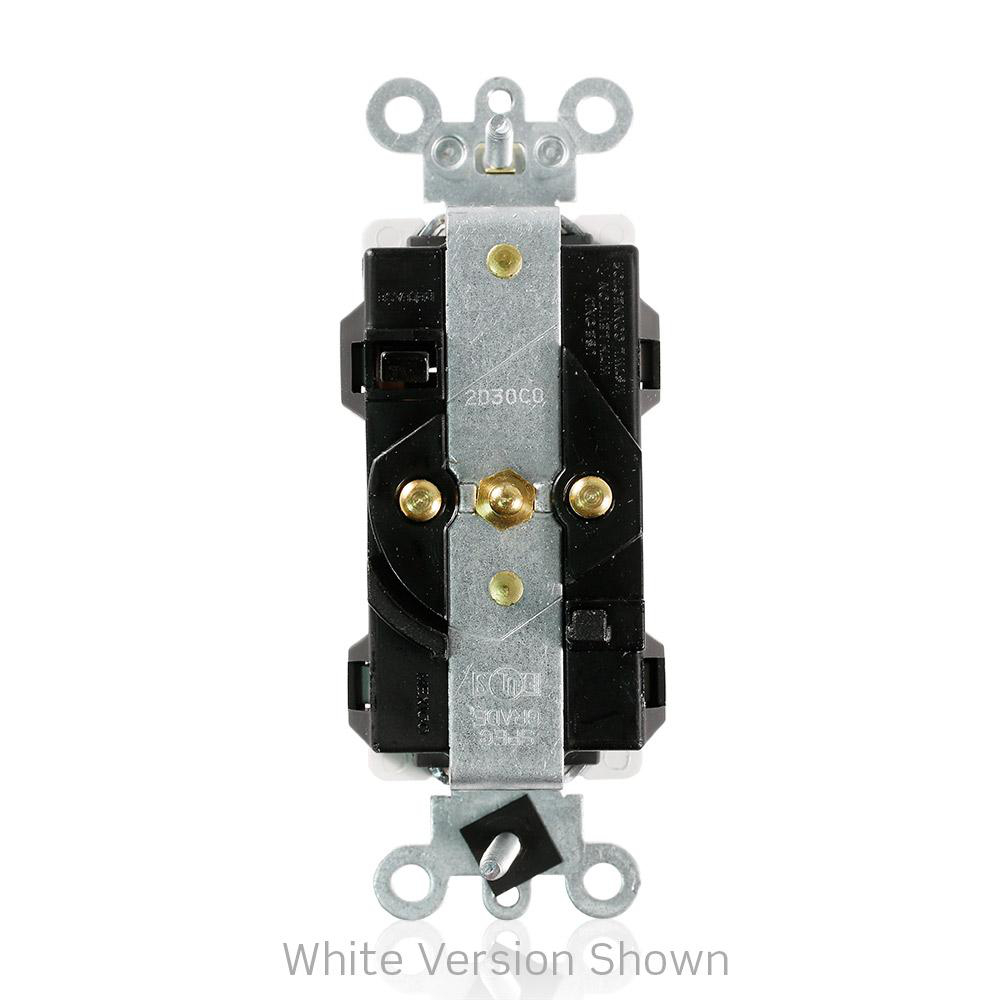

15 Amp Lev-Lok® Decora Plus Isolated Ground Duplex Receptacle/Outlet,

Manufacturer: Leviton Manufacturing | Catalog # M1626-IGR | Electrozad South Part # 282140
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet

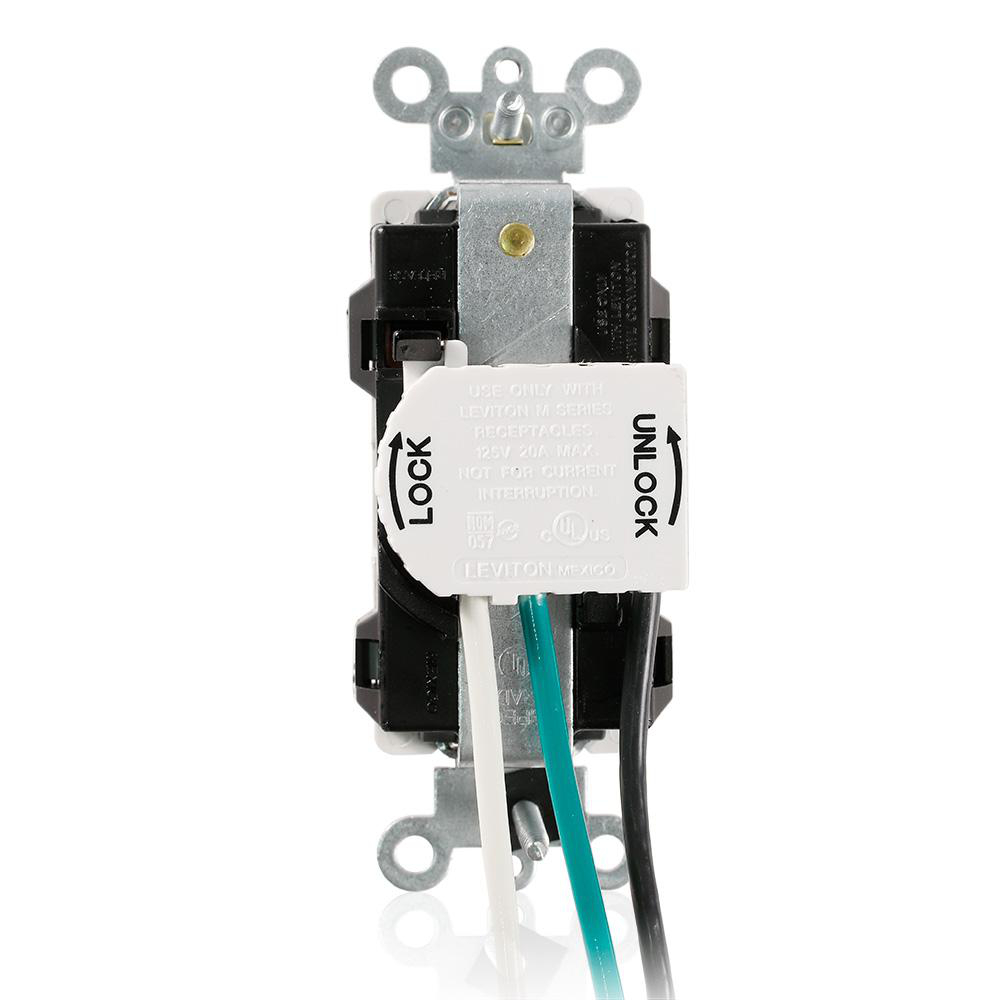

Lev-Lok Decora Plus Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Modular, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Red Mating Lev-Lok Wiring Module Required for Use

Technical Information

Amperage
15 A
Applications
Industrial
Base Material
Nylon
Body Material
Nylon
Contact Material
Brass
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 (Min.) V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
NEMA
WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.55 W x 1.42 D IN
TC Connection
Modular Terminal
Temperature Rating
-40 to 60 C
Temperature Rise
200 %
Termination Type
Modular
Type
Straight Blade;Duplex Outlet
Wire Size
12 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
LEVLOK RECEPTACLES

General Product Info

12-Digit UPC
078477364161
Color
Red
GTIN
00078477364161

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
