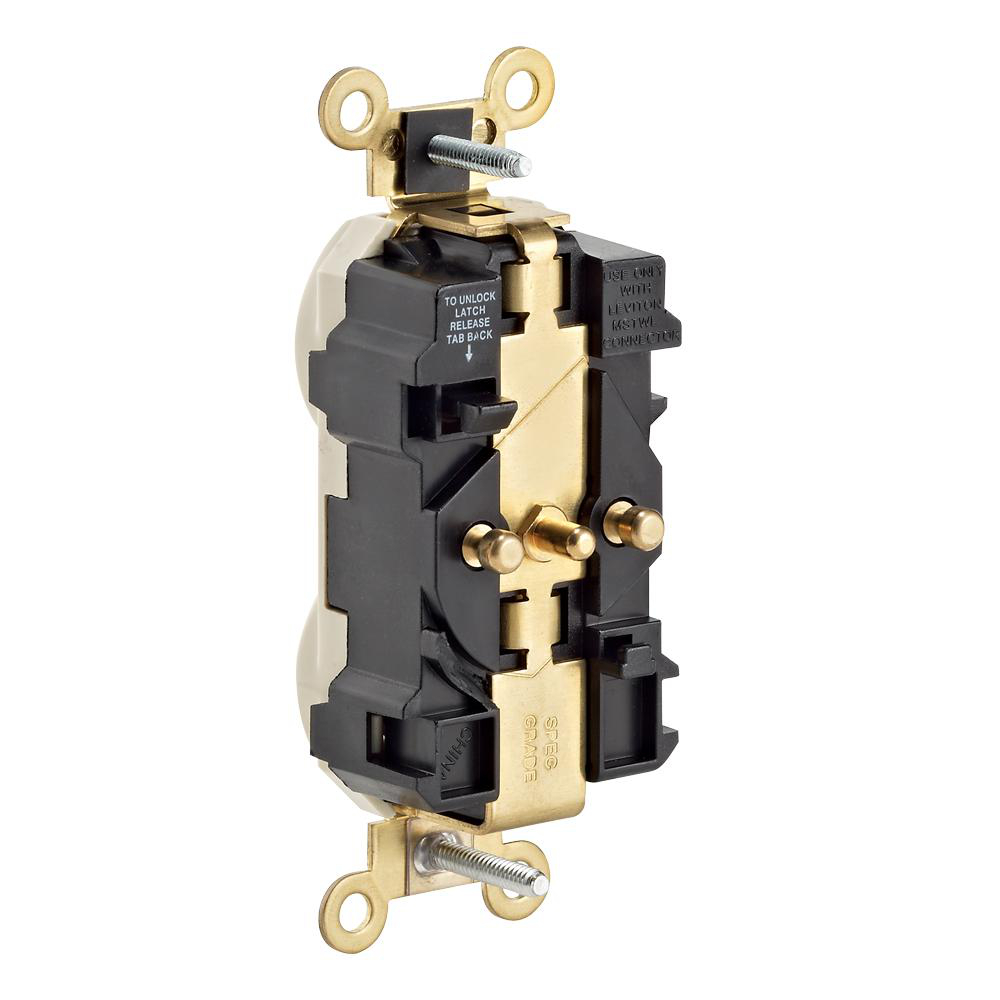

Receptacle duplex smooth face 1HP 20A 125V white

Manufacturer: Leviton Manufacturing | Catalog # M5362-W | Electrozad South Part # 281812

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Extra heavy-duty specification grade smooth face duplex receptacle. Standard. Galvanized steel single-piece, wrap-around mounting strap with riveted ground contacts provide for secure connections. Constructed with impact-resistant thermoplastic nylon, assuring durability of the device. Grounding clip permanently secured to strap makes for most reliable ground connection. Smooth face prevents dirt from collecting and makes cleaning faster and simpler. Four corner latches securely fasten the devices face to the body. Tamper-resistant versions are equipped with a unique shutter system that prevents incidental contact with live contacts. Large triple-wipe T contacts for superior performance day-in and day-out.

Technical Information

Amperage
20 A
Applications
Commercial
Base Material
Nylon
Connection Type
Modular Terminal
Cover Material
Nylon
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL94
Grade
Extra Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
WD-1
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.53 W x 1.22 D IN
Standard
ANSI C-73
TC Connection
Modular Terminal
Temperature Rating
-40 to 60 degrees C
Temperature Rise
200 %
Termination Type
Modular
Type
Duplex Outlet,Straight Blade
Voltage
125 V
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Lev-Lok®

General Product Info

12-Digit UPC
078477362891
Color
White
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477362891

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
