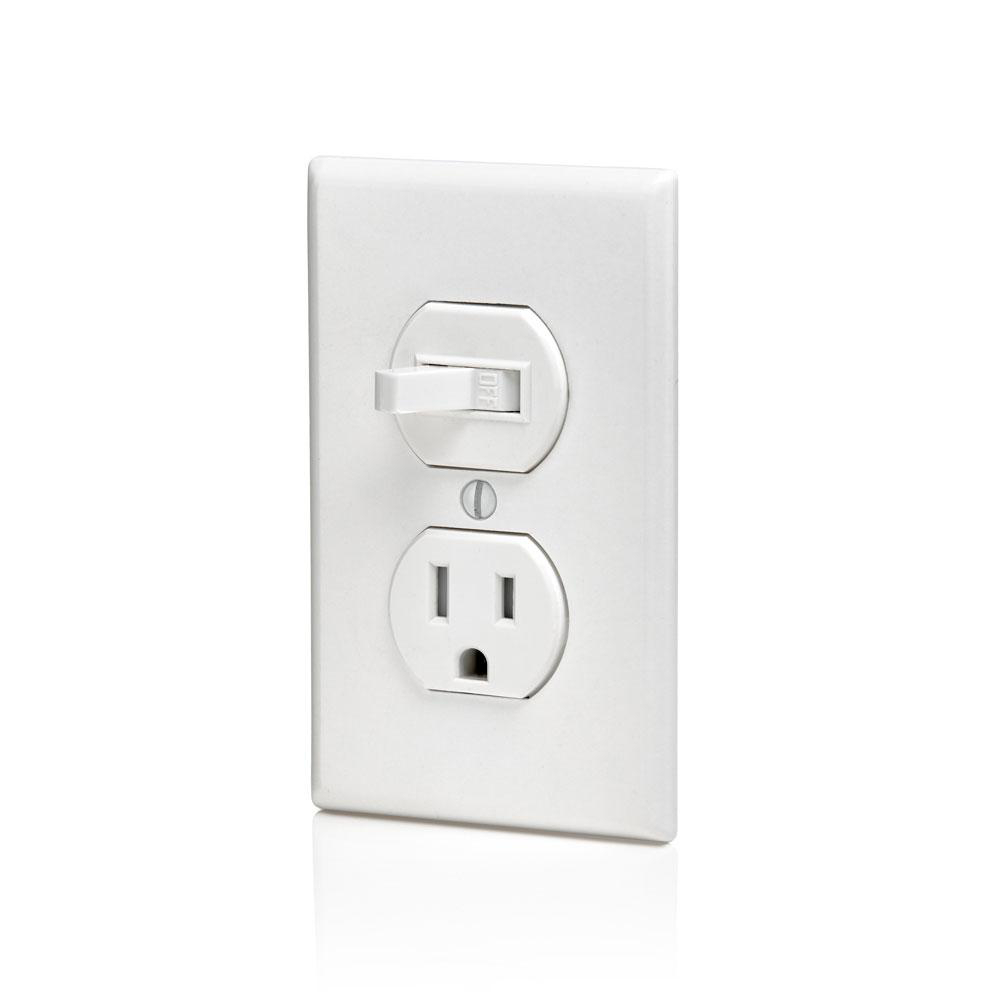

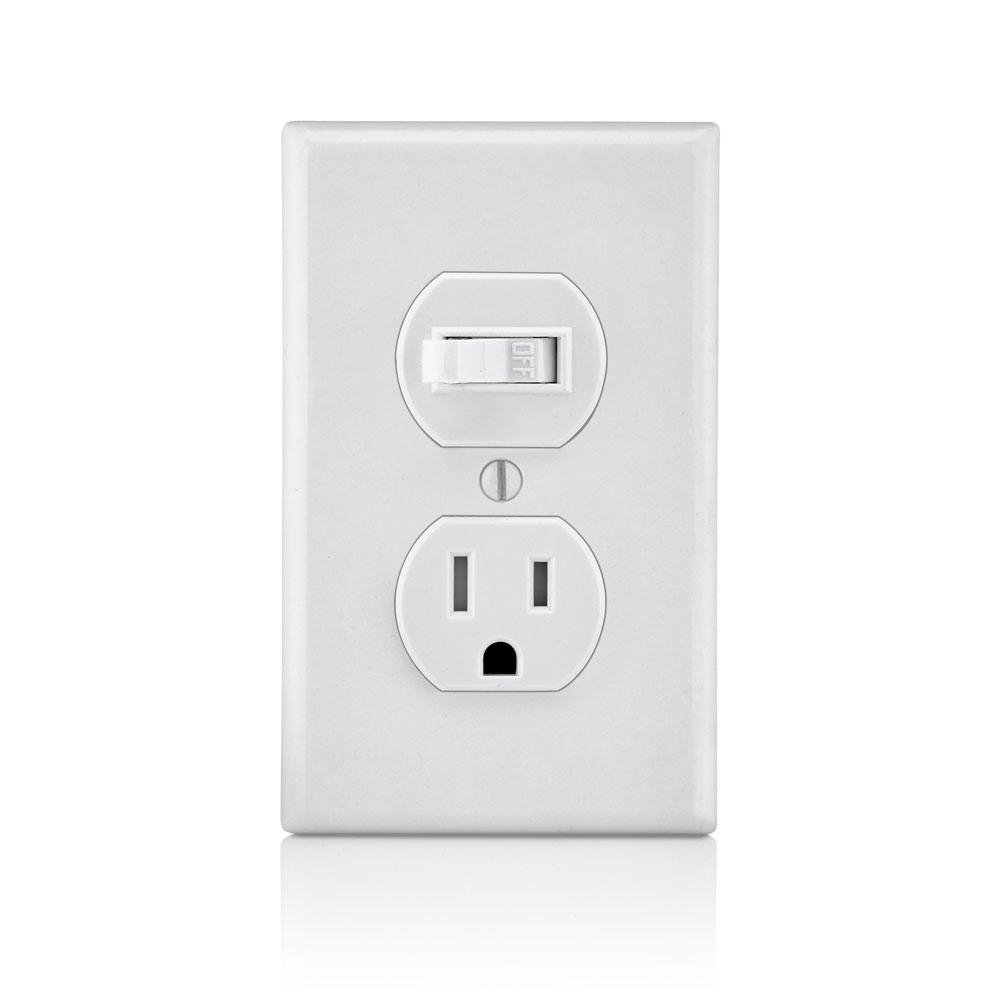

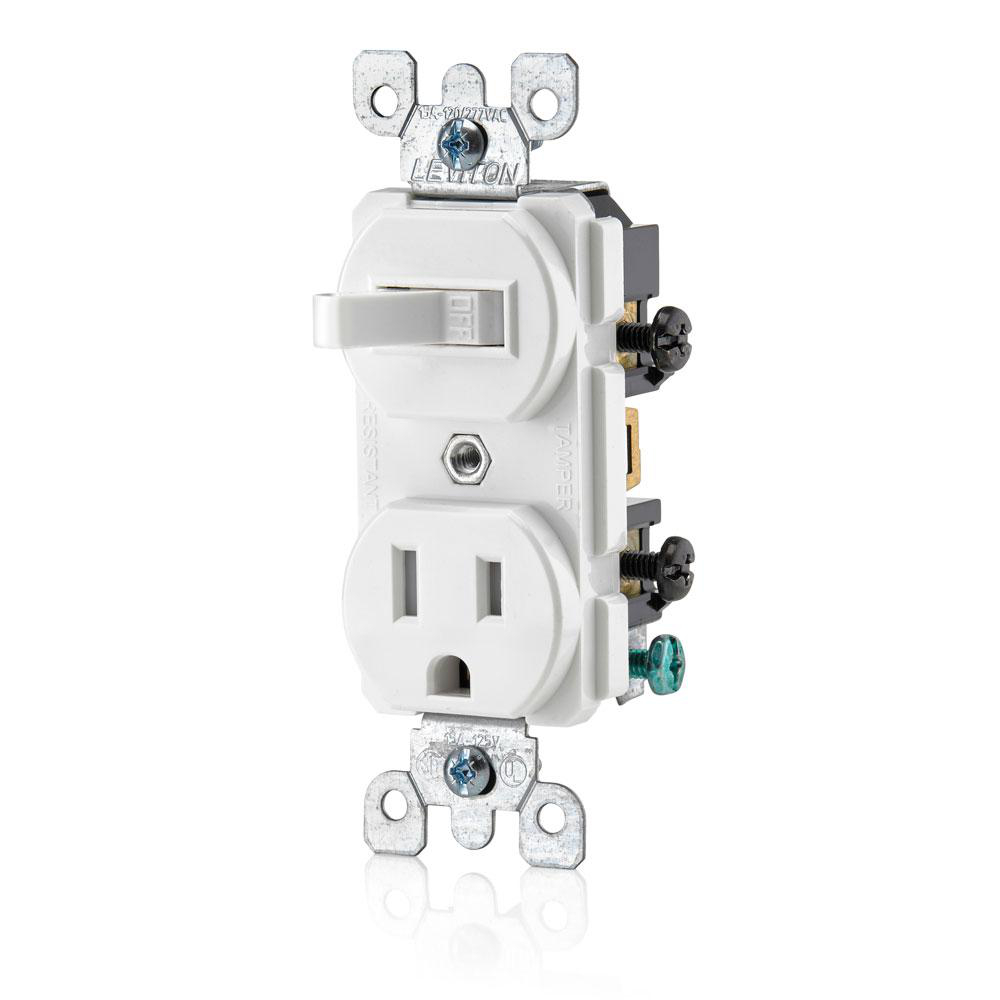

Combination device single-pole white 15a 125v

Manufacturer: Leviton Manufacturing | Catalog # T5225-W | Electrozad South Part # 281290
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
Combination device, Duplex style single-pole, White, 15 A, 125 V receptacle, 120 V switch, 5-15R AC, Commercial grade, Withstands dielectric voltage of 1500 V for 1 minute, Side wired, Steel strap, Grounding, Thermoplastic actuator.

Technical Information

Amperage
12 A
Applications
For Commercial Application
Body Material
Thermoplastic
Dielectric
1500 V
Enclosure
WD-6
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Vertical, Screw, Flush
NEMA
WD-1
Number of Outlets
1
Number of Poles
1
Operating Temperature
-40 degrees C
Outlet Type
Tamper Resistant
Standard
ANSI C-73
Style
Combination Switch
Switch Type
Rocker/Button Off
Temperature Rise
30 degrees C
Termination Type
Side Wire
Torque
14 lb-in
Type
Duplex, Pot and Polish Style, Tight-Buffered
Voltage
120 V

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT COMBINATION

General Product Info

12-Digit UPC
078477379264
Color
White
GTIN
00078477379264
Product Type
Switch/Outlet Combo

Dimensions

Height
4.2 in
Length
1.31 in
Warranty Length
2 yr
Width
16 in

Certifications & Compliance

Country of Origin
Mexico
