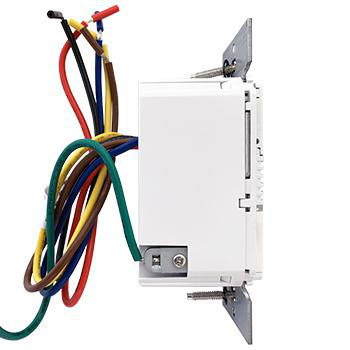

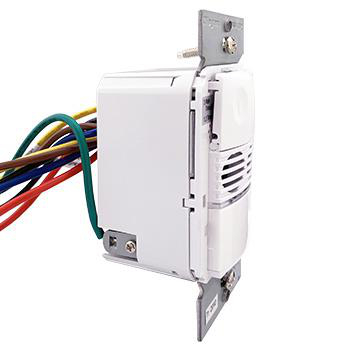

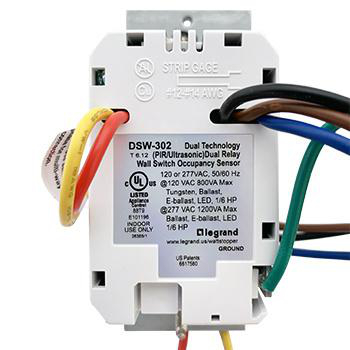

Product image for Sensor occupancy DSW-302 dual relay 120/277VAC white
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

To:
CC:

Sensor occupancy DSW-302 dual relay 120/277VAC white

Manufacturer: Watt Stopper | Catalog # DSW-302-W | Electrozad South Part # 281198

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
WattStopper® Dual technology wall switch sensor turns lights off and on based on occupancy and contains two relays for controlling two independent lighting loads or circuits. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies for high sensitivity to small and large movements. Replaces existing wall switches and fits behind a standard decorator wall plate. High sensitivity and dense coverage for exceptional performance. Allows multi-way control from one of up to four control locations. colour-matched lens and low profile for appealing design. Optional neutral connection with break off tab to expose neutral terminals. Defaults to manual-on operation for maximum energy savings. Load: 0 to 800 W, 1/6 HP.

Technical Information

Amperage
8.3 A
Applications
For Offices, Conference Rooms, Lunch/Break Rooms, Commercial
Connection Type
Wired
Indicator
True
Indoor Outdoor
Indoor
Input Voltage
120/277 VAC
Material
Plastic
Mounting Type
Surface
Sensor Type
Passive Infrared
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Switch Type
Motion Sensor
Type
Dual Relay, Wall Switch
Voltage
120/277 V
Wire Size
10 AWG

Manufacturer Information

Brand
WattStopper
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182935505
Color
White, Gloss
Finish
Matte
GTIN
00754182935505

Dimensions

Depth
1.83 in
Height
2.73 in
Length
2.73 in
Width
1.76 in

Certifications & Compliance

Country of Origin
China
