CSA 600A 2P3W 240V FUS HD TY1 WN 4/600AS

Manufacturer: Siemens Distribution | Catalog # HFC226NA | Electrozad South Part # 280935
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page

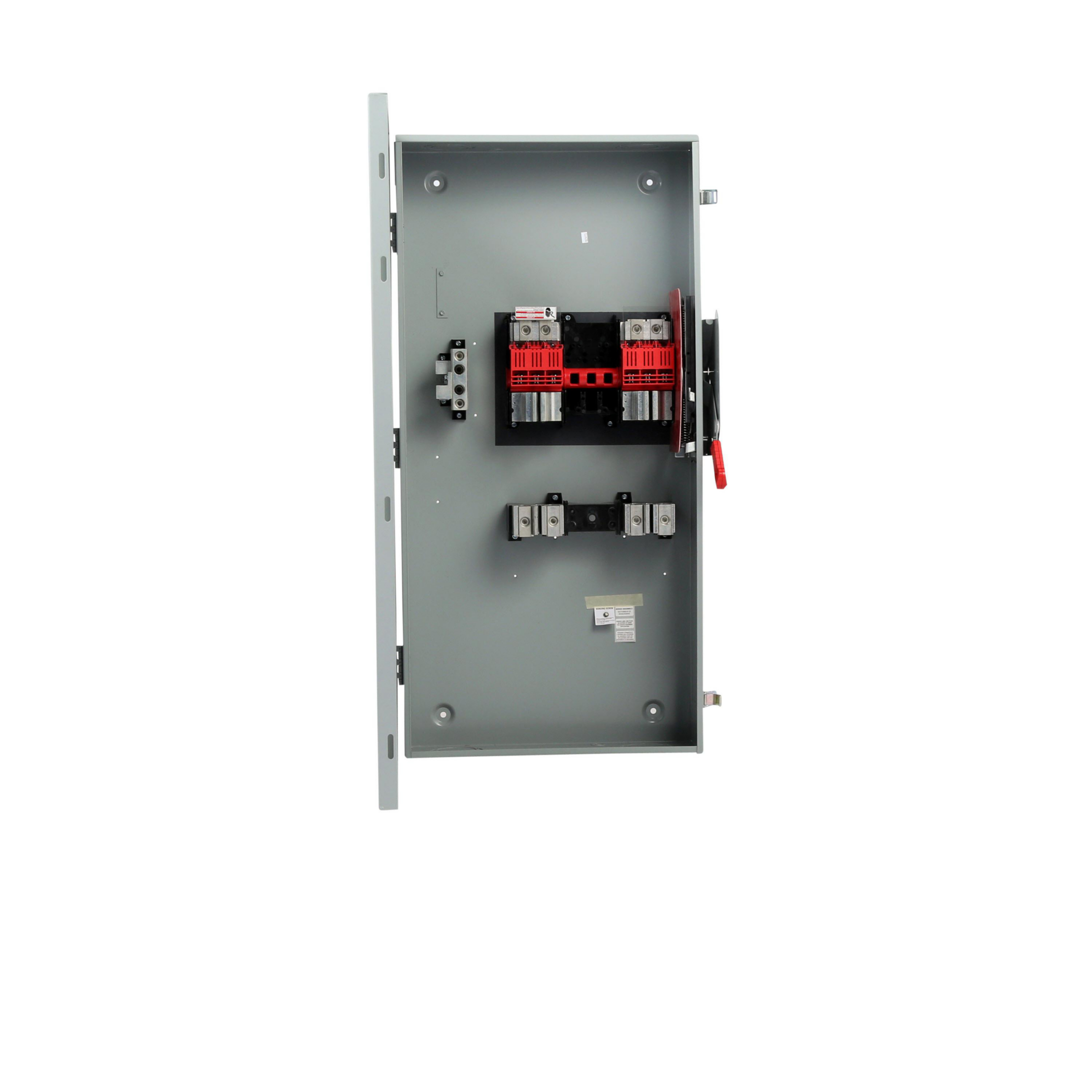

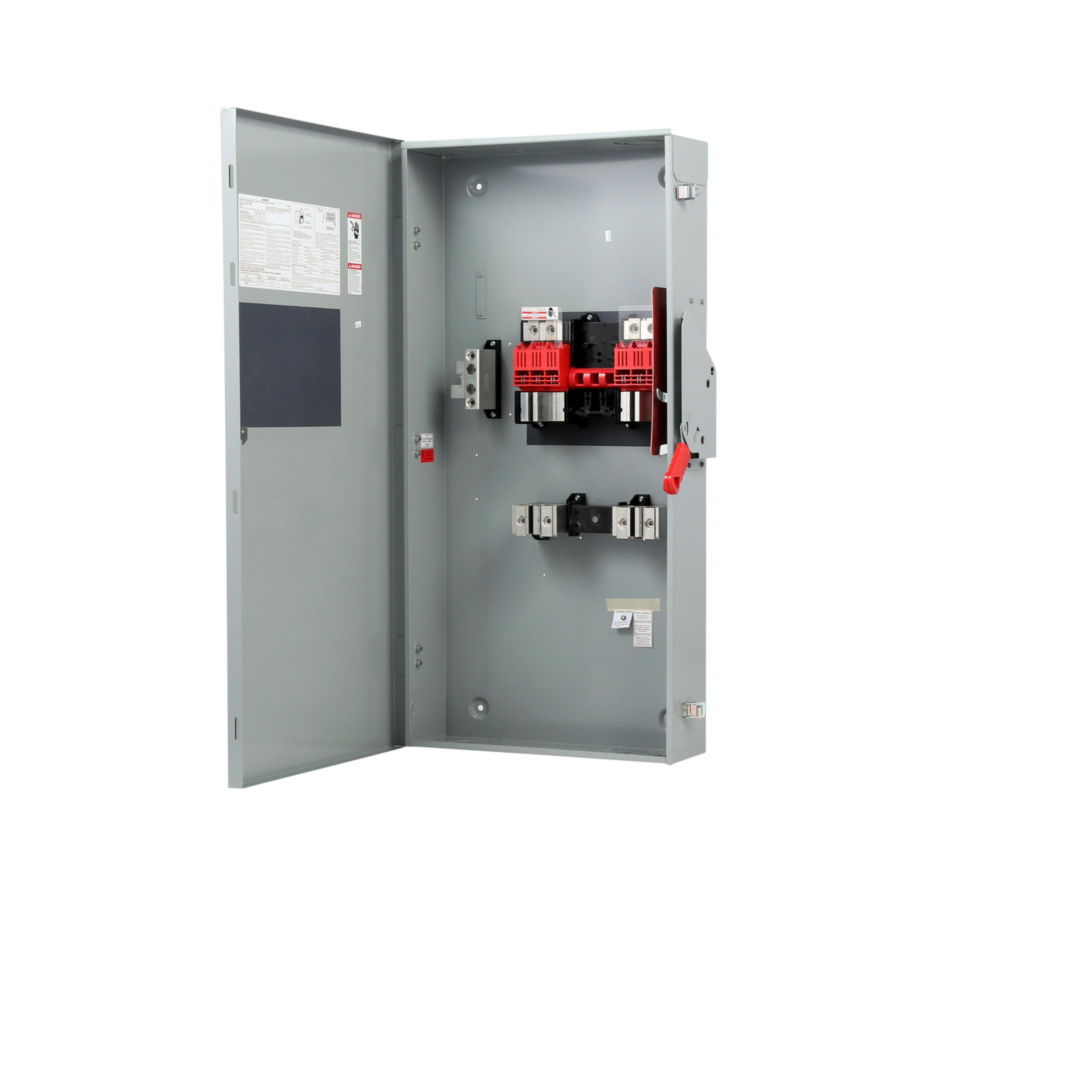

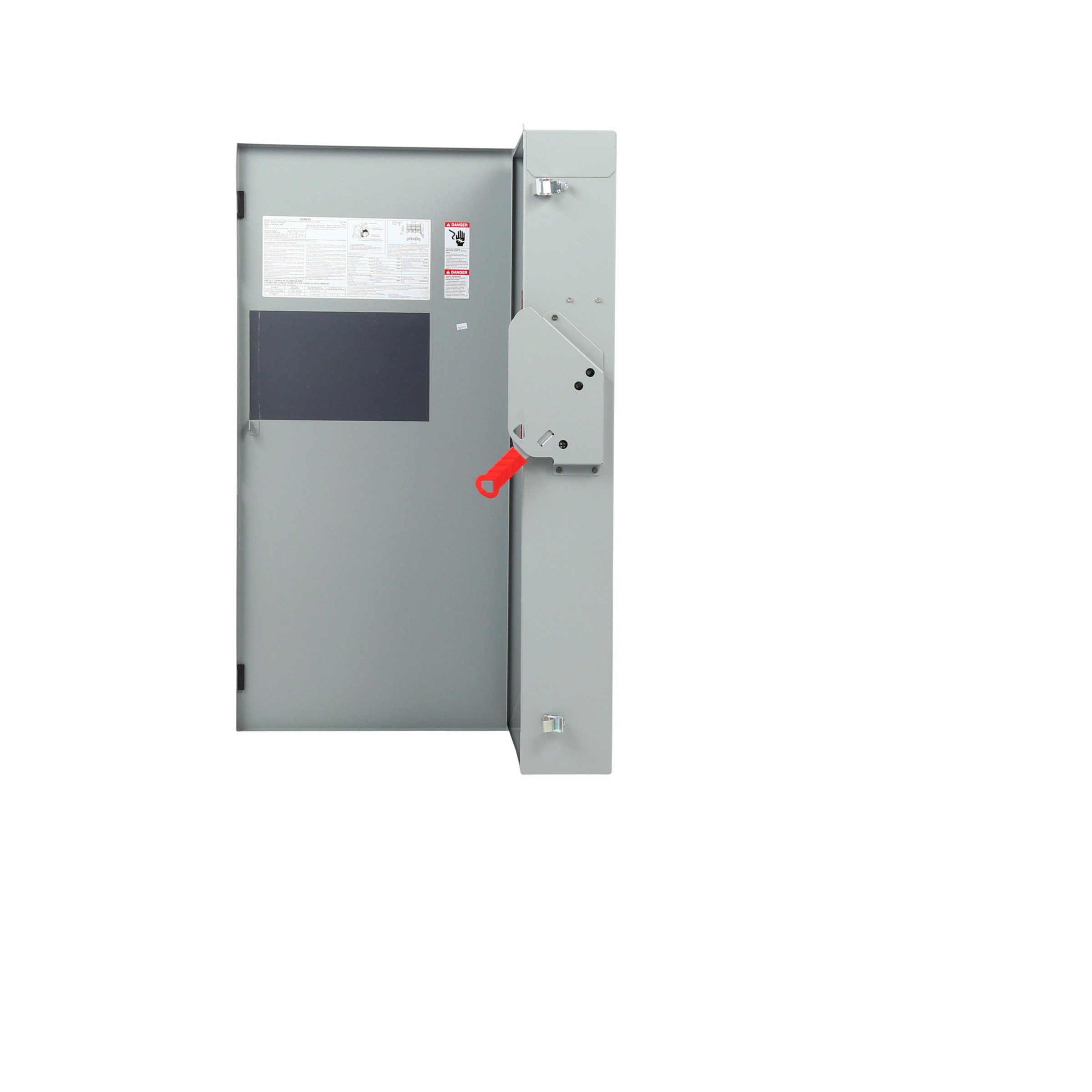

CSA Heavy Duty Safety Switch, Fusible, 2 Poles, 240V, 600A, Type 1, With Neutral - Service Entrance Rated

Technical Information

Action
Single throw
Actuator
SINGLETHROW
Applications
For Service Entrance/Loads
Connection Type
Mechanical Lugs
Enclosure
NEMA1
Material
Steel
Mounting Type
Surface
Number of Poles
2
Number of Wires
3
Operating Cycles
5000
Operating Temperature
-29 degrees C
TC Connection
MECHANICALLUGS
Temperature Rating
-29 to 85 degrees C
Type
Heavy-Duty, Single Throw

Manufacturer Information

Brand
Siemens
Sub Brand
Safety Switches

General Product Info

12-Digit UPC
887621872946
GTIN
00887621872946
Housing Material
Steel
