StructuredGround™ GCE500-250 E-Tap, 500-250, Copper, 1/2-3/4" Grd Rod, 5/8-3/4"

Manufacturer: Panduit | Catalog # GCE500-250 | Electrozad South Part # 280186
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual Technical Drawing

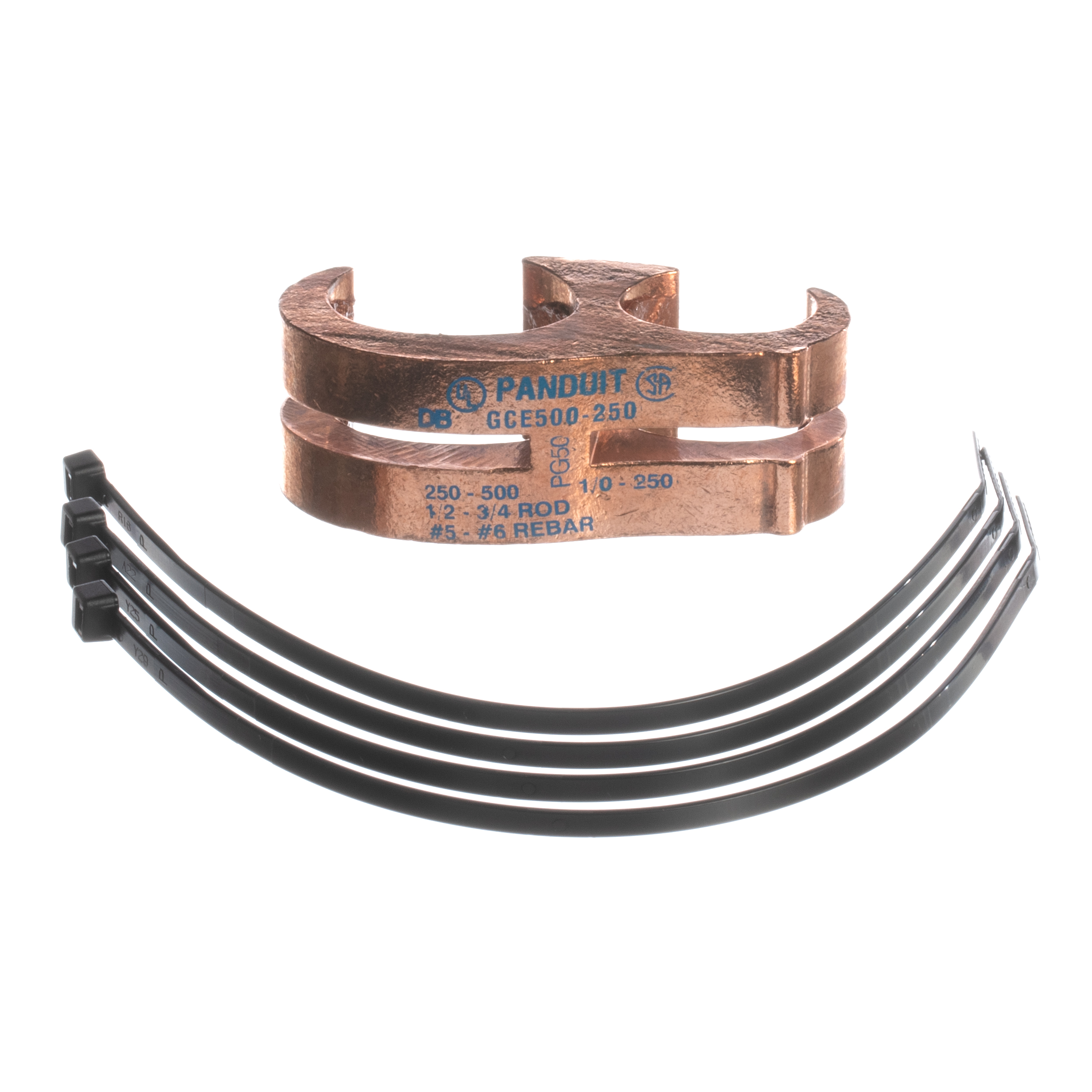

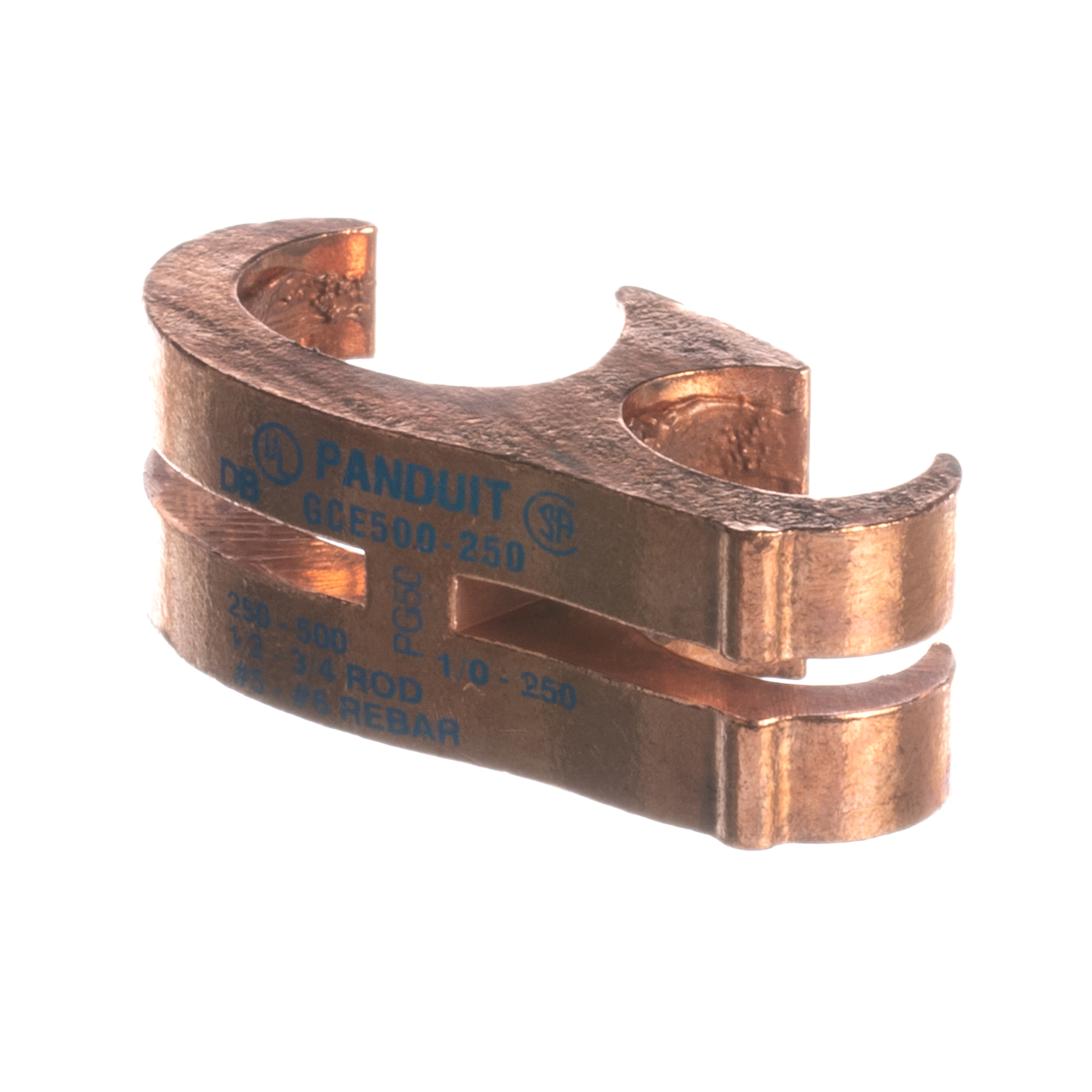

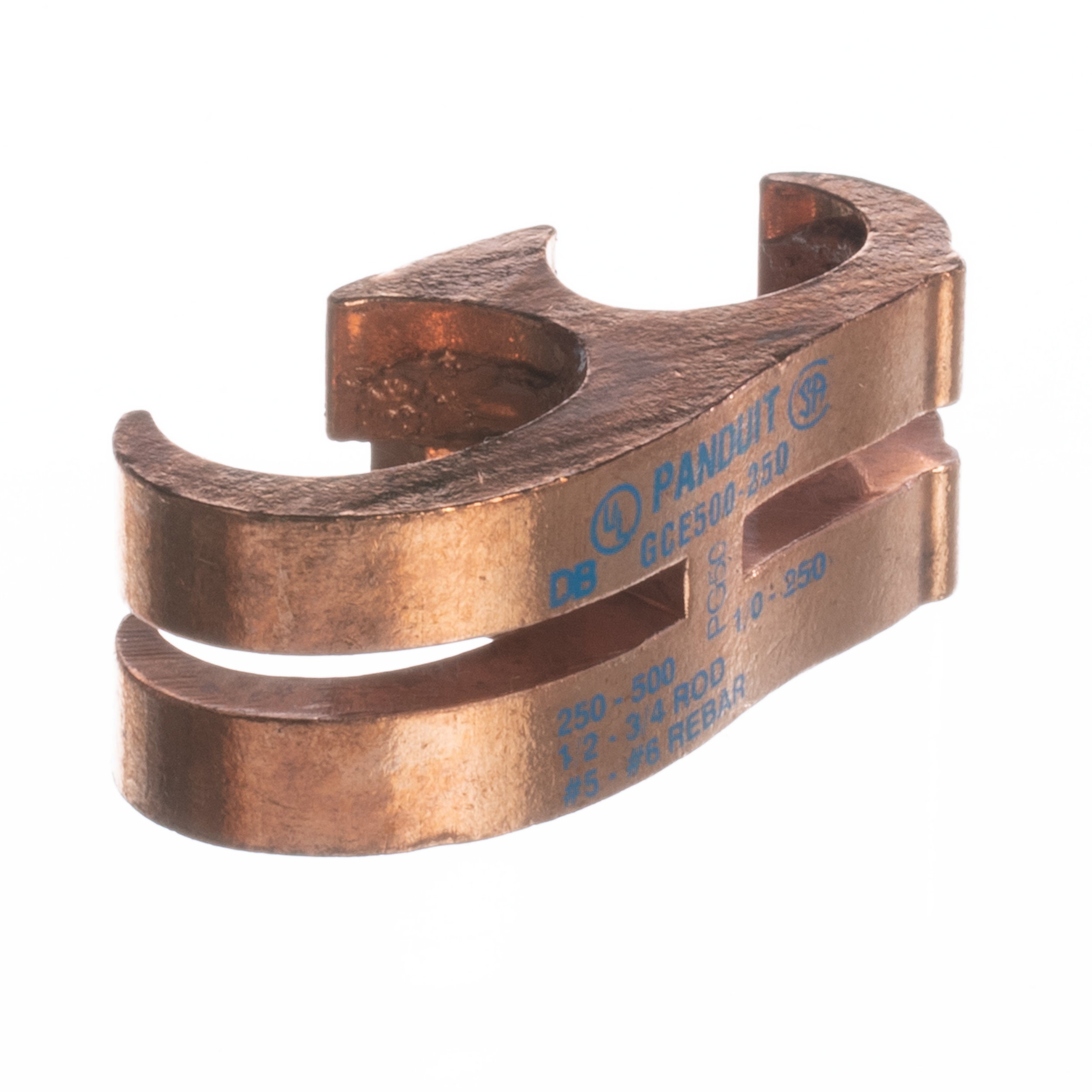

The GCE500-250 E Style Grounding Connector is designed to enhance the crimp process using technology that meets IEEE STD 837 - 2002 and REV 2014. Has a wide-range taking ability; multi-conductor design provides flexibility with minimum number of parts. Slotted design allows quick, easy assembly while the pre applied conductive antioxidant compound ensures a high quality mechanical and electrical bond. UL467 & CSA22.22 certified for grounding, bonding and is suitable for direct burial in earth or concrete.

Technical Information

Applications
Utility/Ground Grid
Material
High Conductivity Copper
Number of Holes
0
Type
E-Tap Grounding Connectors

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
StructuredGround™

General Product Info

12-Digit UPC
074983009589
Color
Blue
GTIN
00074983009589

Dimensions

Height
2.85 in
Length
1 in
Overall Length
1 in
Width
1.32 in

Certifications & Compliance

ARRA Compliant
Yes
BAA | Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
