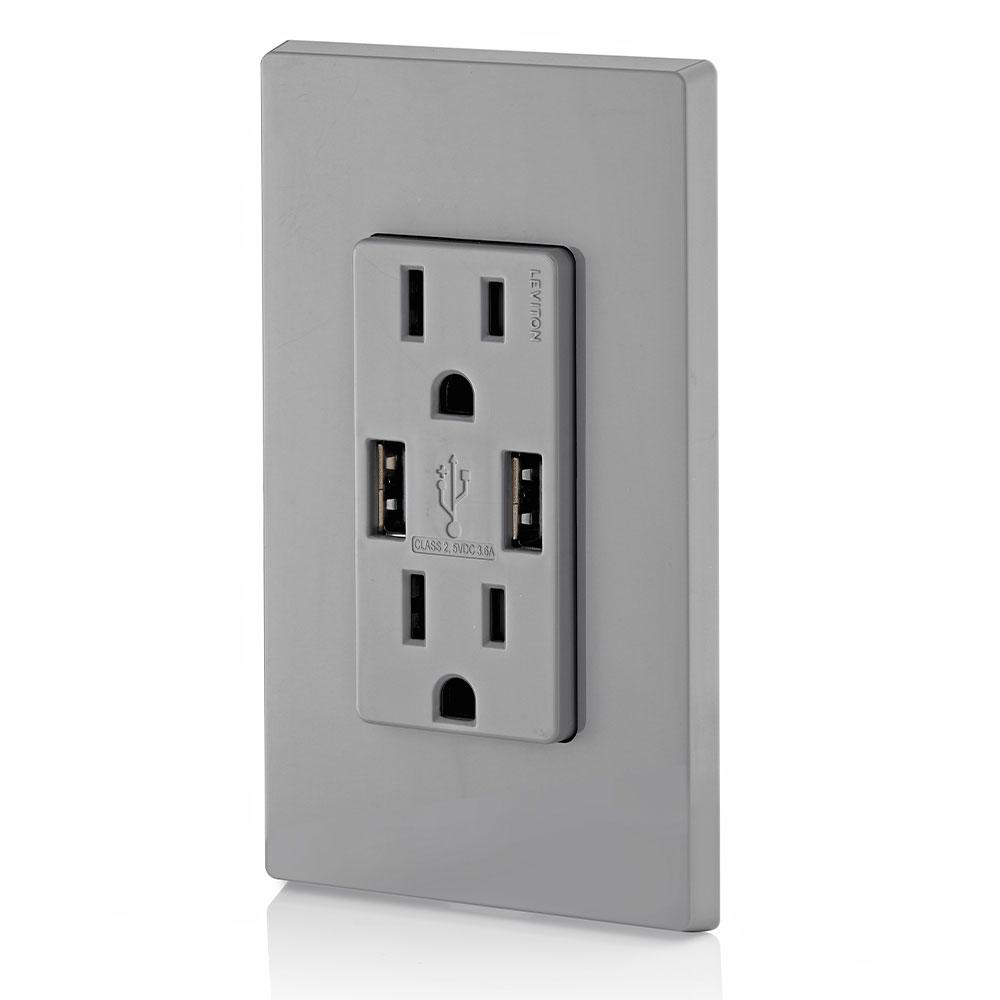

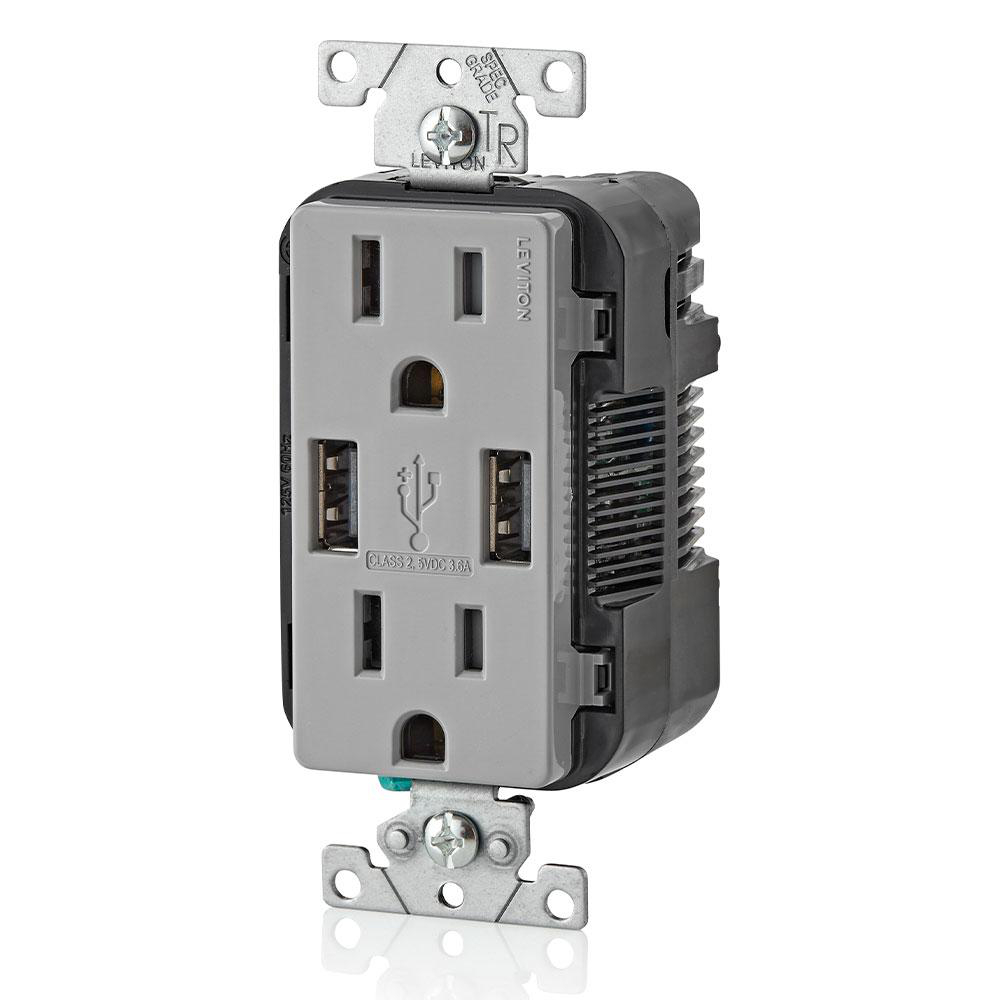

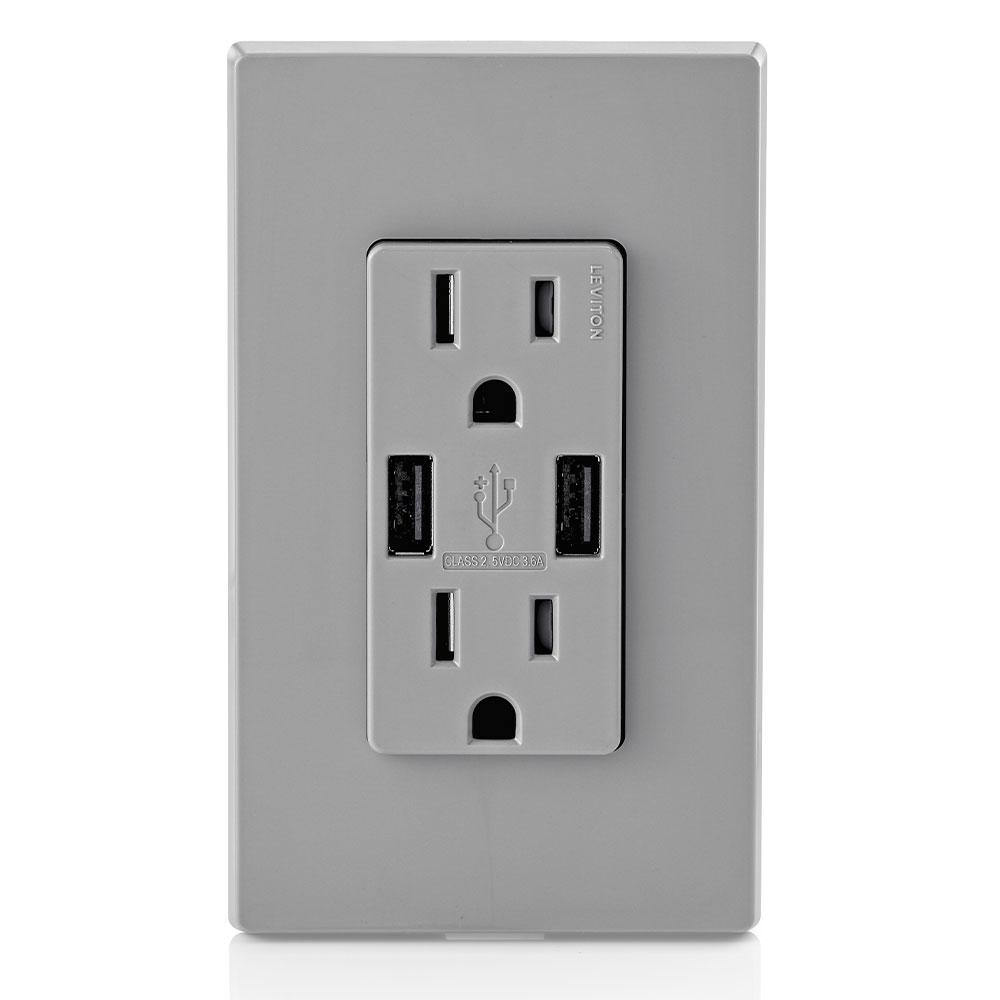

3.6A USB Type-A/Type-A Wall Outlet Charger with 15A Tamper-Resistant

Manufacturer: Leviton Manufacturing | Catalog # T5632-GY | Electrozad South Part # 279496
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet Technical Drawing
Combination Duplex Receptacle/Outlet and USB Charger. 15 Amp, 125 Volt, Decora Tamper-Resistant Receptacle/Outlet, NEMA 5-15R. 3.6 Amps, 5VDC, 2.0 Type A USB Chargers. Grounding, Side Wired & Back Wired - Gray

Technical Information

Amperage
15 A
Applications
For Residential use
Body Material
Thermoplastic,Thermoplastic
Cover Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Commercial, Residential
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Wall
NEMA
5-15R
Number of Poles
2
Operating Temperature
40 degrees C
Standard
CCSAus
Temperature Rating
-10 to 40 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Torque
12-14 lb-in
Type
Duplex, Tamperproof
Voltage
125 V
Wire Type
Back and Side

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477683965
Color
Gray
GTIN
00078477683965
Product Type
Outlet/USB Combo

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
China
