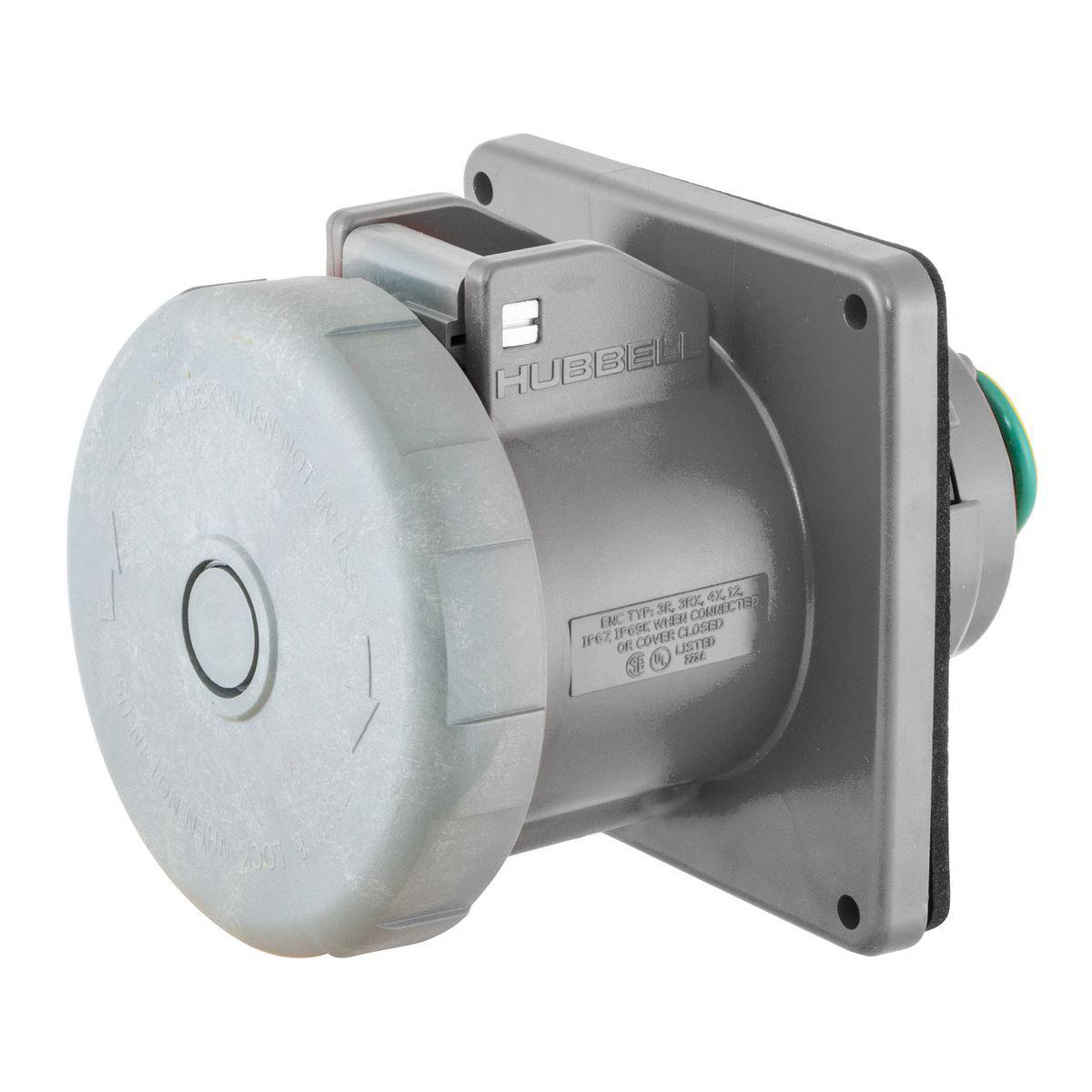

Inlet shore power 3-pole 4-wire 100A 250V

Manufacturer: Hubbell Wiring Devices | Catalog # M4100B12R | Electrozad South Part # 277776
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Supertough® Shore power inlet has gasketed, spring-loaded cover which closes automatically when not in use and is watertight when securely fastened. Mounting holes are 4-7/8 inch on centers and rear portion has 3-15/16 inch diameter. Mounting screws and gasket included. Made of nylon. IP67 protection rating.

Technical Information

Amperage
100 A
Applications
Marine Wiring Devices
Conductor Size
3-1/0 AWG
Current
100 A
Dielectric Strength
Withstands 3000V Minimum in
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
1
Number of Poles
3
Number of Wires
4
Rating
100 A
Size
Standard Sized
Standard
CSA StandardC22.2 No. 182.1,File E146032,IEC 60309-1 IEC 60309-2,UL
Style
Reverse Service
TC Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C
Type
Hull Mount, Single
Voltage
125/250 V
Wattage
25000 W
Wire Count
4
Wire Size
3-1/0 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Pin and Sleeve Inlets

General Product Info

12-Digit UPC
783585410012
Color
Gray
Environmental Conditions
Watertight
GTIN
00783585410012
Product UPC
78358541001
Weight
3.35 lb

Dimensions

Height
5.750 in
Length
7.000 in
Width
6.400 in

Certifications & Compliance

Country of Origin
Puerto Rico
Overview
  • Raised collar surrounds each phase pin
  • Gasketed sealing ring provides watertight seal
  • Solid one-piece pins for reliable electrical contact
