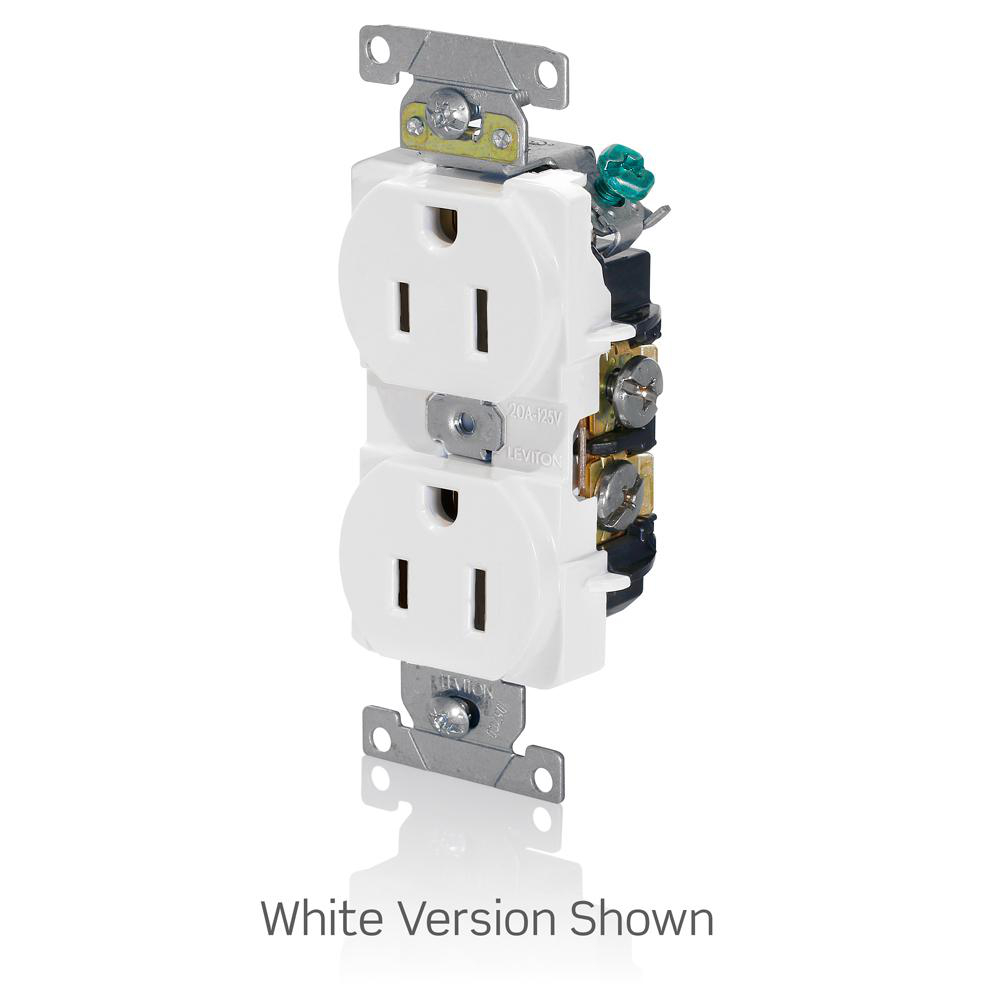

Image thumbnail 1

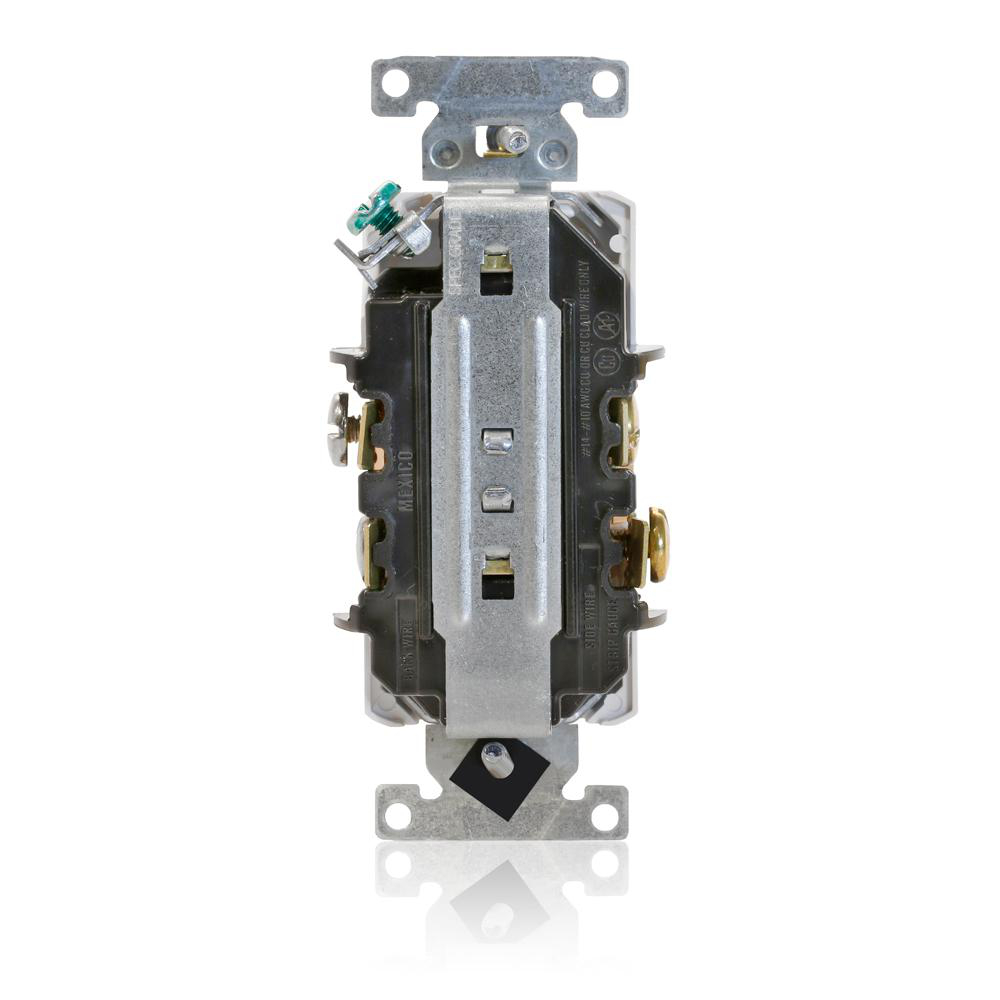

Image thumbnail 2
To:
CC:

Receptacle 5-15R EHD th" round duplex 15A 125V ivo

Manufacturer: Leviton Manufacturing | Catalog # 5262-SI | Electrozad South Part # 276365
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Industrial Series Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Contractor Pack, 8 Hole Feed Thru Back & Side Wired, Steel Strap - IVORY

Technical Information

Amperage
15 A
Applications
For Commercial Applications
Body Material
PBT,Polyester Blend
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
PBT,Polyester Blend
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Wall Box/Flush
NEMA
WD-1
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.33 W x 19 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Heavy Duty
Voltage
125 V
Wire Count
3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477141113
Color
Ivory
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477141113

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
