3P SW 60A J FUSE 600V UL98

Manufacturer: ABB Inc | Catalog # OS60GJ12 | Electrozad South Part # 276314
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

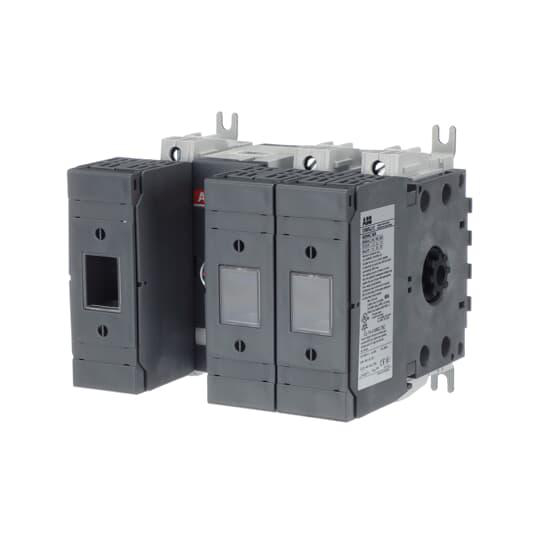

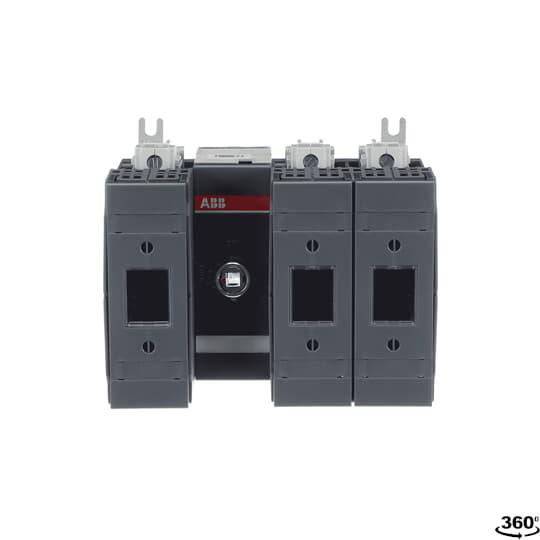

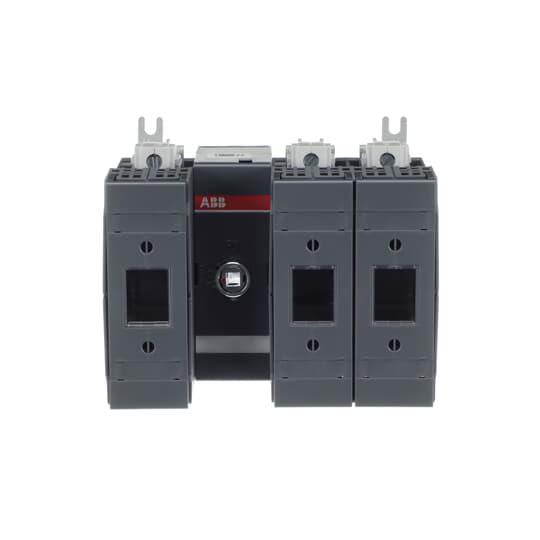

3 poles 60 amperes rated at 600 VAC front operated open fusible disconnect switch for use with J fuse type. Including protected tunnel terminals (IP20). Handle and shaft not included. 145 millimiters width x 112 millimiters height x 118 millimiters depth.

Technical Information

Connection Type
Screw Terminal
Fuse Type
Class J
Load Rating
15 hp at 240 V, 30 hp at 480 V, 50 hp at 600 V, 18.5 kW at 220 - 240 V, 30 kW at 400/415 V, 37 kW at 500 V, 55 kW at 690 V
Mounting Type
Base
Number of Poles
3
Type
Front Operated, Fusible, Open
Wire Size
2.5 - 25 mm²

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
804325562737
GTIN
00804325562737
