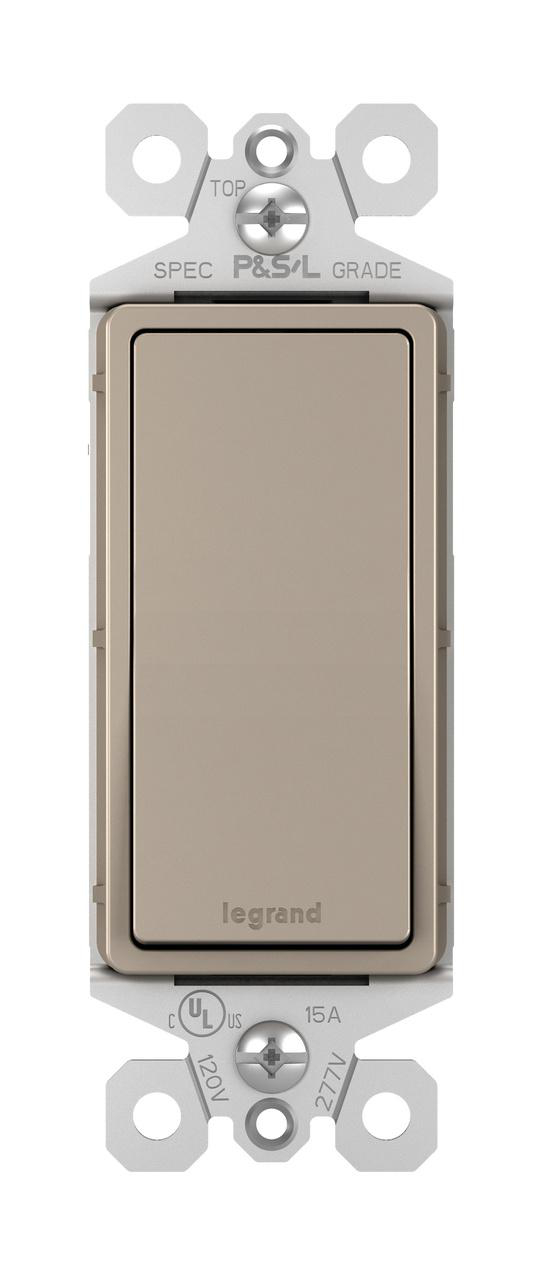

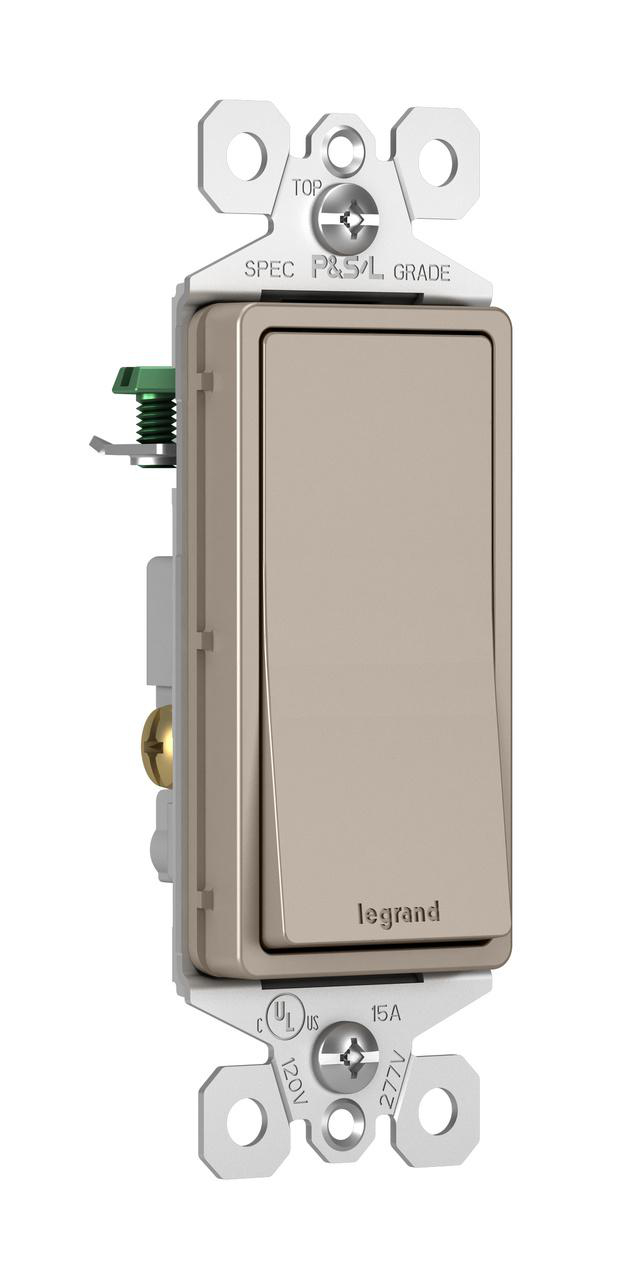

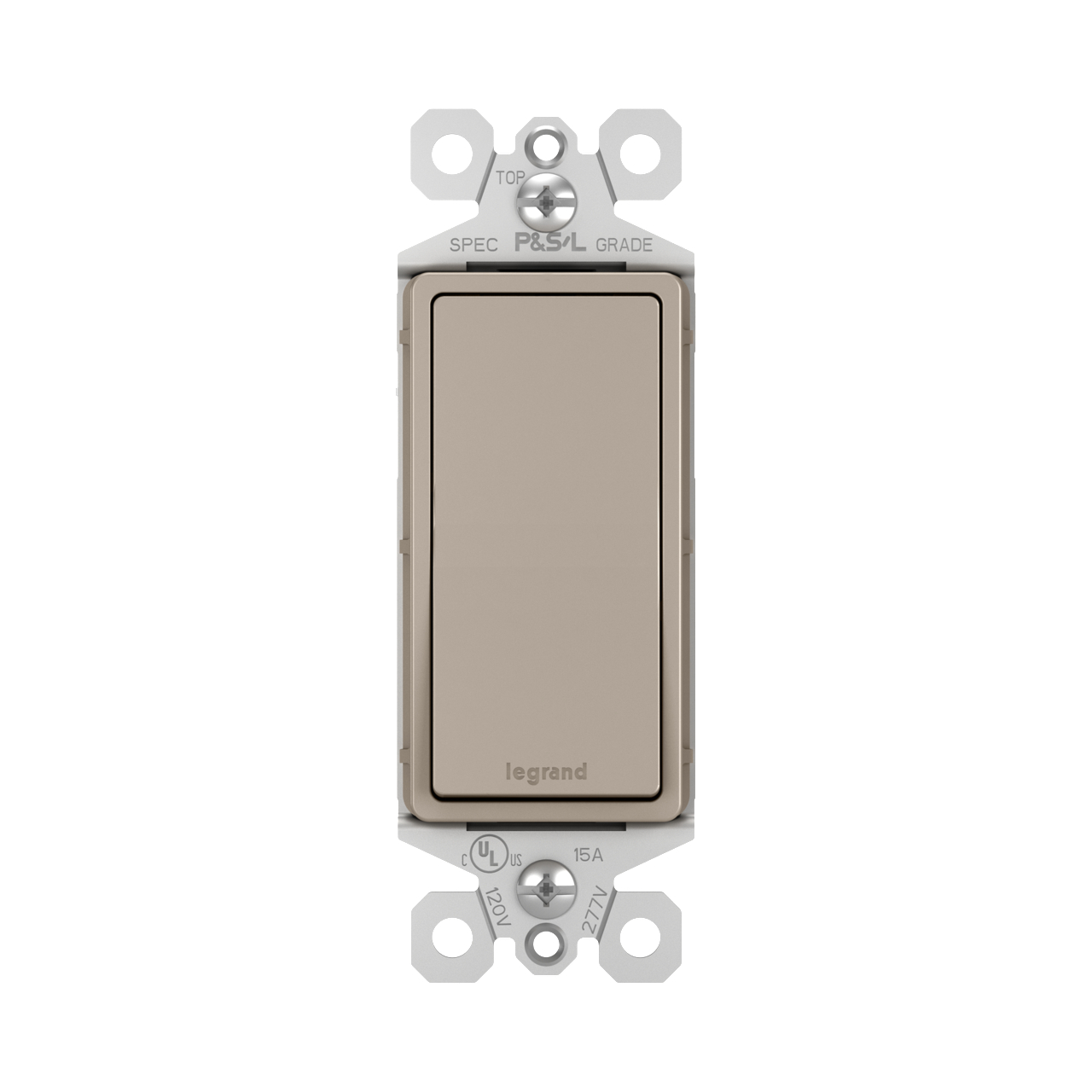

radiant® 15A Single-Pole Switch, Nickel

Manufacturer: Pass & Seymour | Legrand | Catalog # TM870NICC10 | Electrozad South Part # 275817
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 4 to 6 days
Specification Sheet Product Brochure Installation / Instruction Manual Manufacturer Warranty
The perfect upgrade for your basic light switch, the Single-Pole Switch from the radiant® Collection provides on/off control of a light or fixture from a single location, while combining clean lines and smooth paddle action for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Actuator
Rocker Switch
Amperage
15 A
Applications
Commercial,Residential
Contact Rating
120 V
Indoor Outdoor
Indoor
Load Type
CFL,Fluorescent,Halogen,Incandescent,LED,Universal,Xenon
Material
Thermoplastic
Mounting Type
Wall Box
Number of Gangs
1
Number of Poles
1
Number of Switches
1
Operating Cycles
50000
Operating Temperature
Maximun continuous +115degrees C, minimum -40degrees C

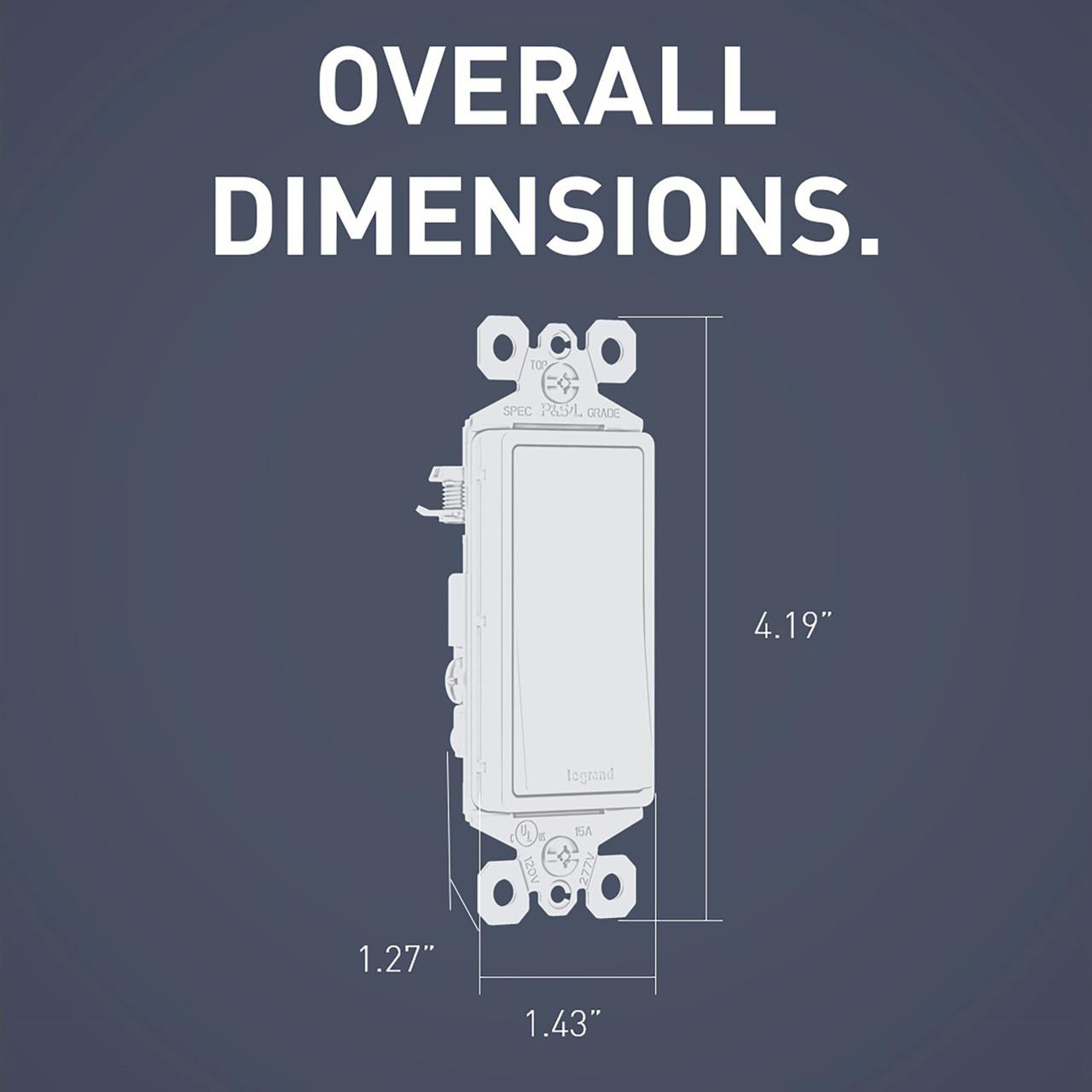

Size
1.27" Depth x 1.43" Width x 4.19" Height
Switch Type
Paddle
Type
Switch
Voltage
120 V

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007021059
Color
Nickel
Finish
Metallic
GTIN
00785007021059

Dimensions

Depth
1.27 in
Height
4.19 in
Warranty Length
1 yr
Width
1.43 in

Certifications & Compliance

Certifications
CULUS
Country of Origin
China
