Grip cord straight male PG16 aluminium 0.5-0.625"

Manufacturer: Kellem | Catalog # 074PG16010 | Electrozad South Part # 274961
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty

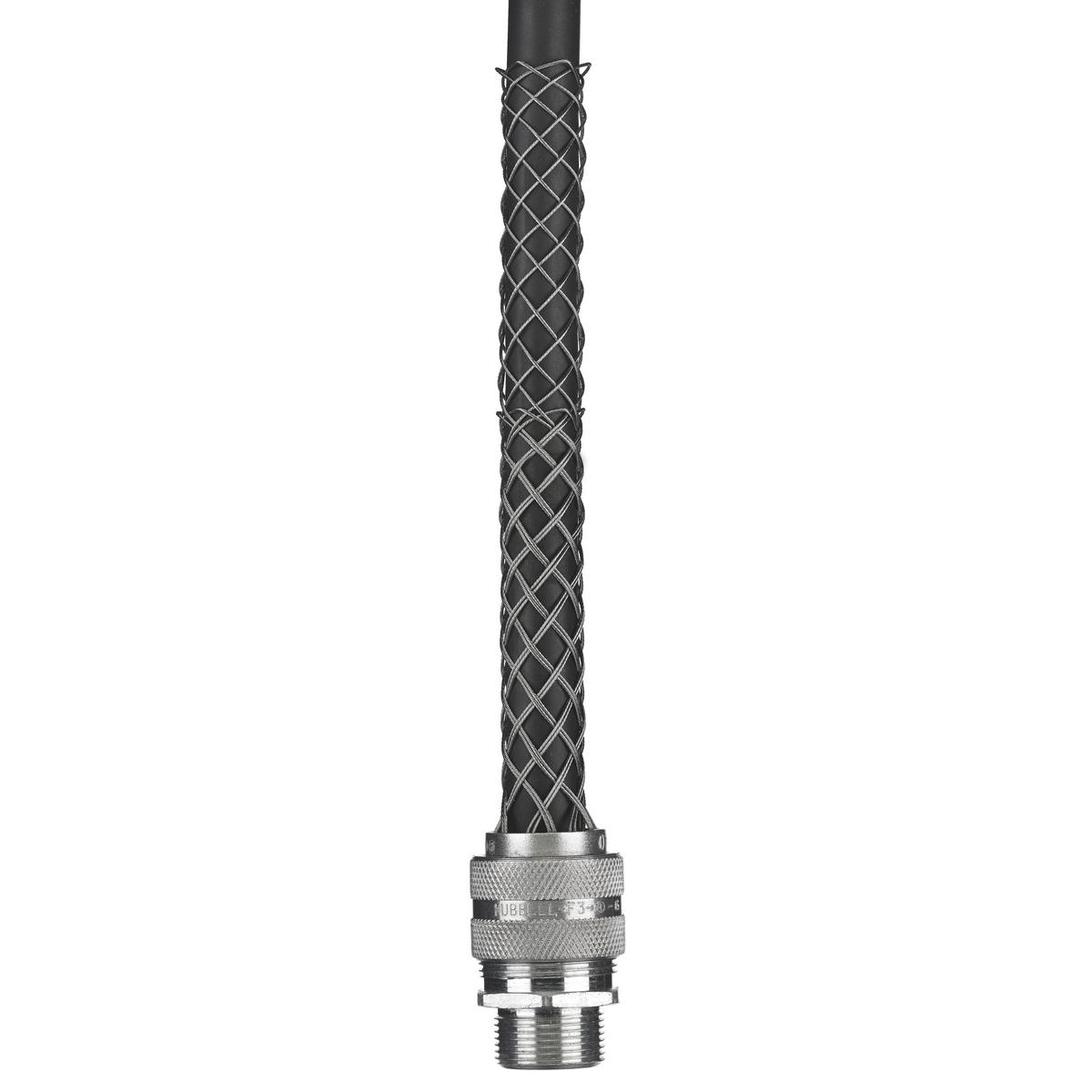

KELLEMS® Deluxe cord grip. Completely eliminate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out. Aluminium fittings. Stainless steel mesh. Liquidtight for insulated cables. Straight male thread PG16 hub size.

Technical Information

Applications
Straight Male- Form 2
Cable Size
0.5 - 0.625 in
Cable Type
Jacketed UL Listed Cable
Material
Aluminum
Number of Conductors
1
Size
PG16
Style
For Insulated Cables
TC Connection
PG16
Temperature Rating
-30 To 240 degrees F
Type
Straight, Male, Form 2, Standard, Deluxe

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Kellems Wire Management

General Product Info

12-Digit UPC
783585327822
Color
Metallic
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
GTIN
00783585327822
Product Series
PG And Metric Threaded
Product UPC
78358532782
Weight
0.1 lb

Dimensions

Height
1.3 in
Length
8.600 in
Width
1.300 in

Certifications & Compliance

Certifications
UL Listed CSA Certified
Country of Origin
USA
Overview
  • Neoprene bushing is oil and watertight
  • Stainless steel mesh is corrosion resistant
  • Aluminum Fiting
