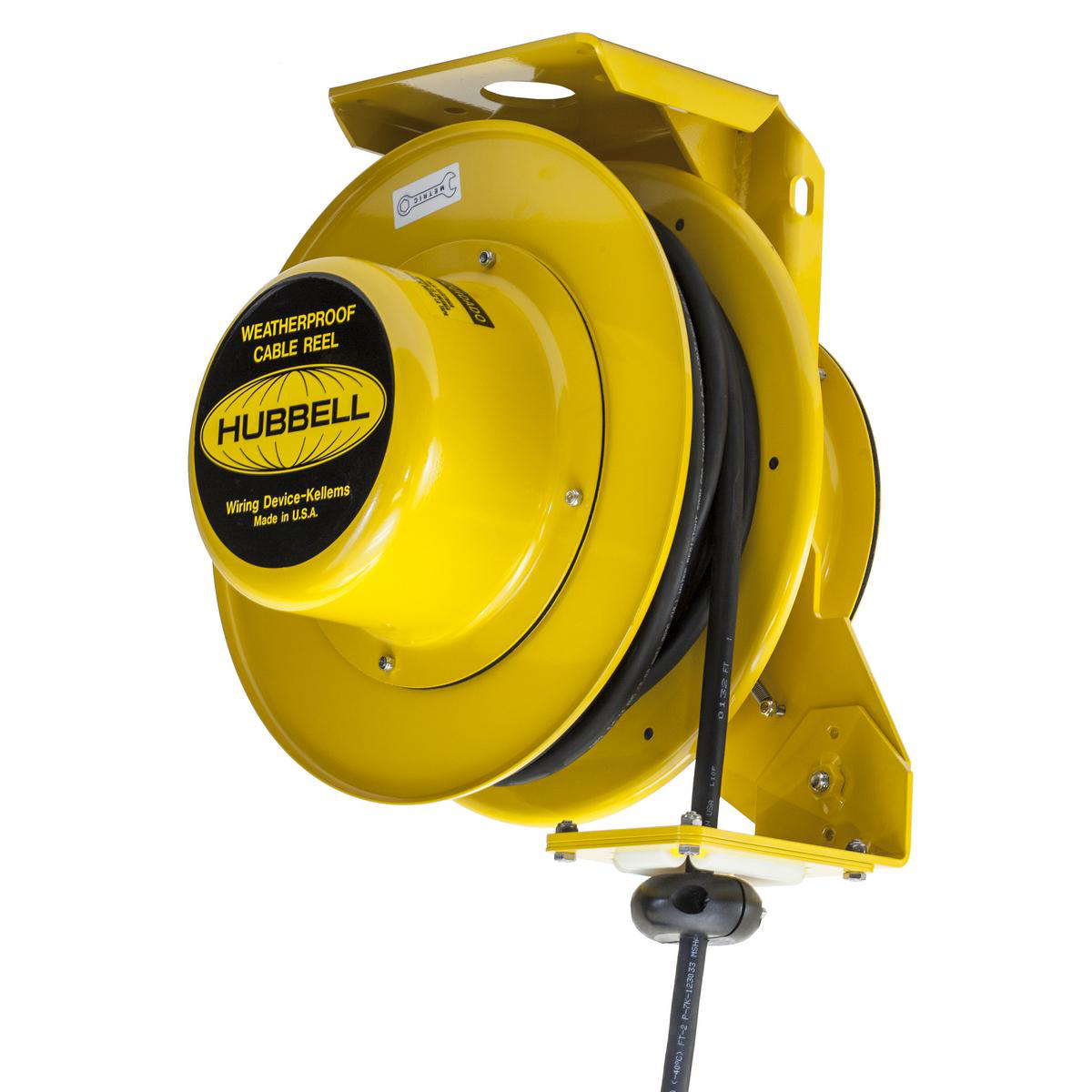

Cord reel WP 50ft cable 10/4 SOW 20A 600V bare

Manufacturer: Hubbell Wiring Devices | Catalog # HBL501042W | Electrozad South Part # 274954
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Hubbell HBL CABLE REELS are made of steel yellow powder coated. Available in version HEAVY DUTY (SOW cable 600 V weatherproof 4X enclosure), INDUSTRIAL (SJ cable 300 V with outlet or portable lamp), COMMERCIAL (SJT cable 250 V portable lamp or low amp outlet). Also special model STATIC DISCHARGE REEL provide grounding to portable equipment located into hazardous area when sparking could cause an explosion.

Technical Information

Amperage
20 A
Applications
Bench, Ceiling and Wall Mounted
Base
Optional
Cable Type
10/4 SOW-A
Conductor Type
10/4 SOW-A
Cord Length
50 ft (Active), 5 ft (Inactive)
Current
20 A
Material
Steel Frame
Mounting Type
Bench/Ceiling/Wall
Type
Heavy Duty
Voltage
600 V

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Weatherproof Reels

General Product Info

12-Digit UPC
783585209302
Color
Yellow/Black
Construction
Steel
GTIN
00783585209302
Product Series
Industrial
Product UPC
78358520930
Weight
103.55 lb

Dimensions

Cable Length
50 Ft
Height
21.900 in
Length
21.400 in
Width
20 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Multi-position roller guide can be mounted in four different positions
  • Optional pivot base allows 340° rotation of reel
  • Ratchet lock can be disengaged in field
