Roller cable tray medium-duty 13-3/4x11-1/8"

Manufacturer: Greenlee Tools | Catalog # CTR100 | Electrozad South Part # 274909
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual G USERS MANUAL URL

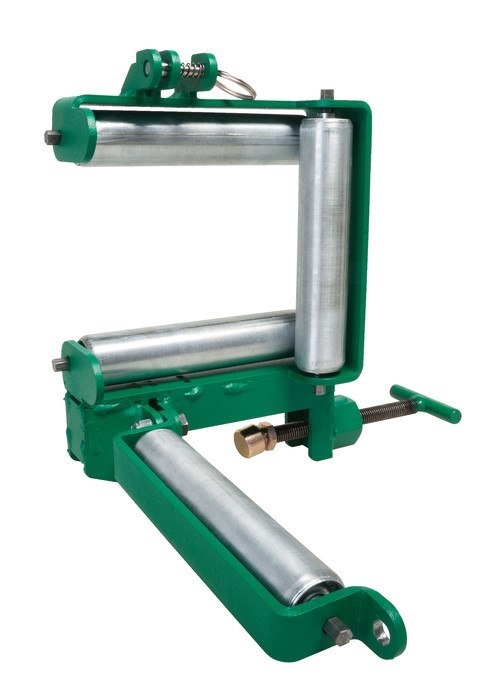

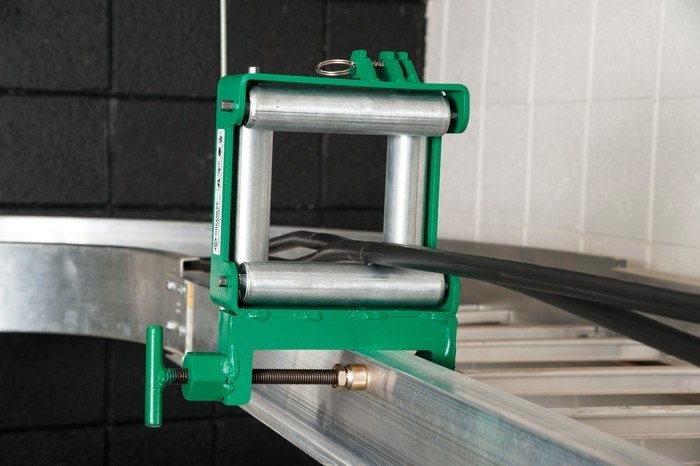

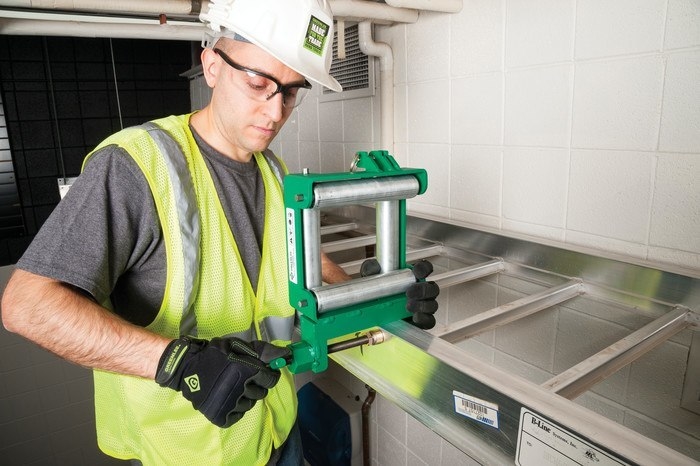

Medium duty cable tray roller. Compact design fits into tight spaces. Overlapping roller design prevents rope or cable from potential pinch points. 2x faster setup and disconnect. No loose pieces. Quick adjust push button to tightly fasten onto tray. 4 conveyer roller guide with retained spring pull-pin release to easily remove cable. Closed conveyer roller guide that traps cable within guide without damaging cable jacket. Easily handle forces of up to 100 lbs. Designed and assembled in USA. Application: use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90.. bends and offsets.

Technical Information

Applications
For use to Assist Pulling Cables Along Non Basket-Style Cable Trays
Cable Size
4 in
Capacity
100 lb
Material
Steel
Type
Medium Duty

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310028109
GTIN
00783310028109
Weight
9 lb

Dimensions

Length
9-1/4 in
Overall Length
13 3/4 in
Width
3-1/2 in

Certifications & Compliance

Country of Origin
USA
