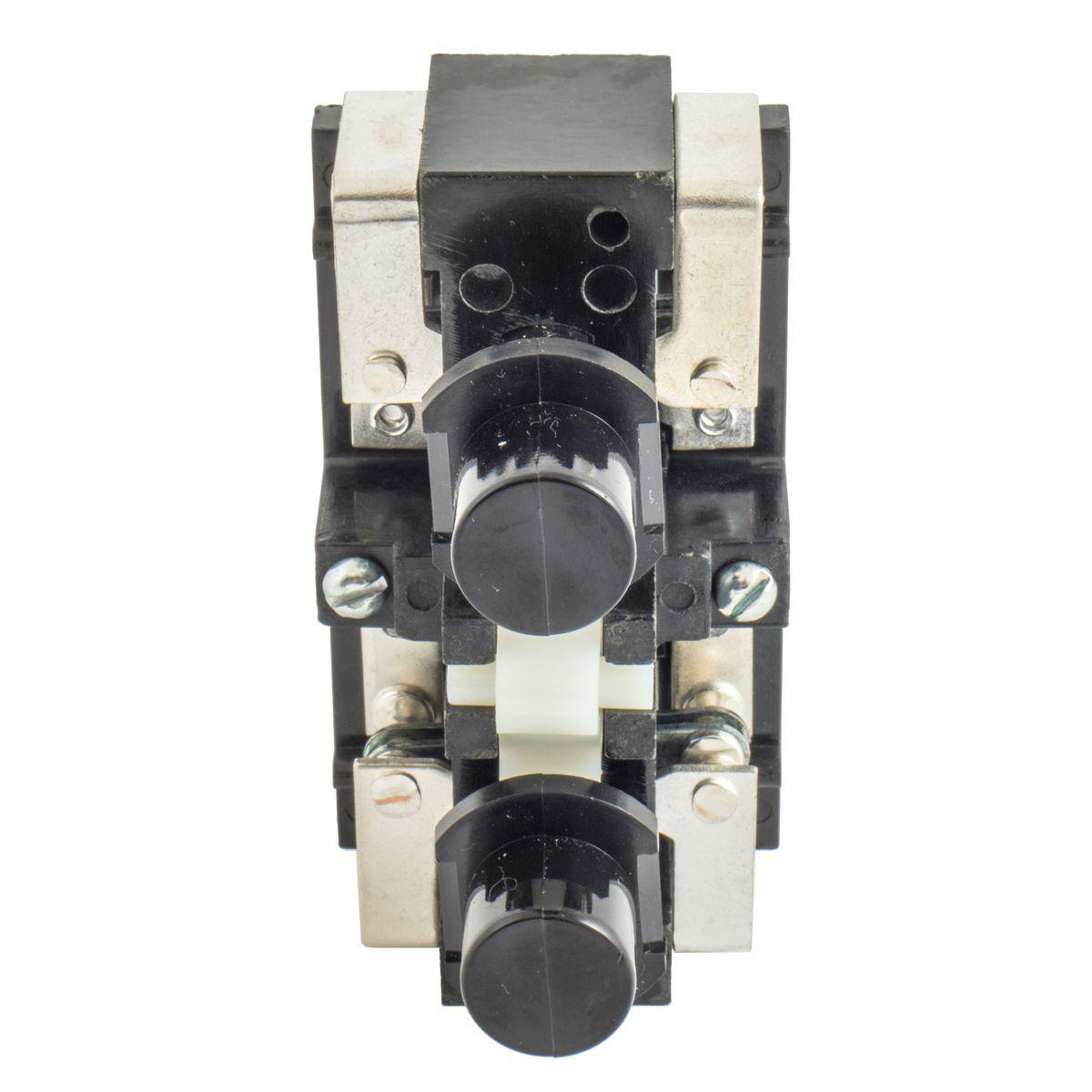

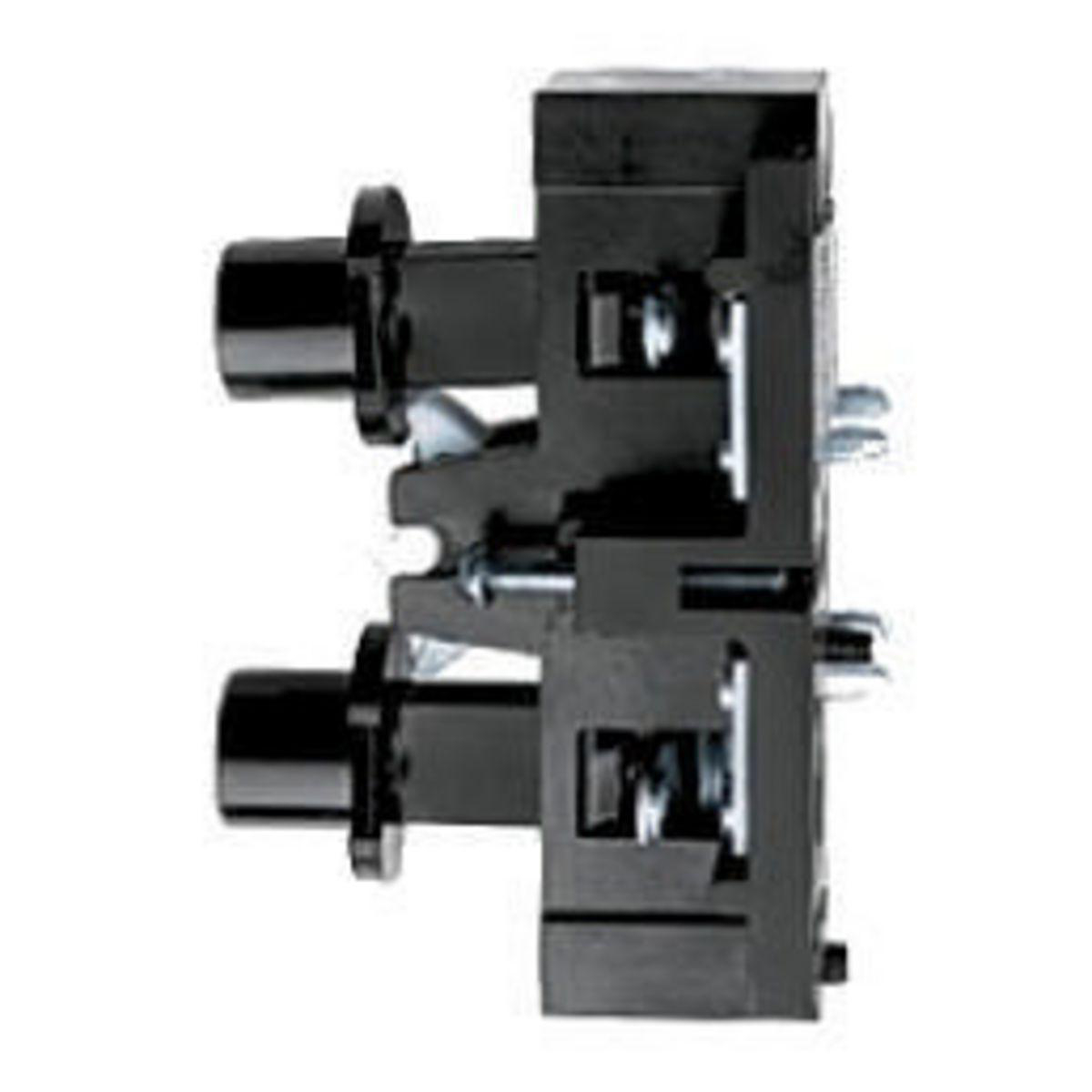

Insert replacement single speed momentary NO-NC

Manufacturer: Hubbell Wiring Devices | Catalog # PG2 | Electrozad South Part # 27403
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Manufacturer Warranty
Single speed insert momentary NO and NC for pendant pushbutton stations. When the insert switches are in need of replacement, simply unplug the old insert and plug in a new one.

Technical Information

Actuator
Push Buttons
Amperage
6 A
Applications
Single Speed Button Set
Contact Configuration
1 NO, 1 NC, Momentary

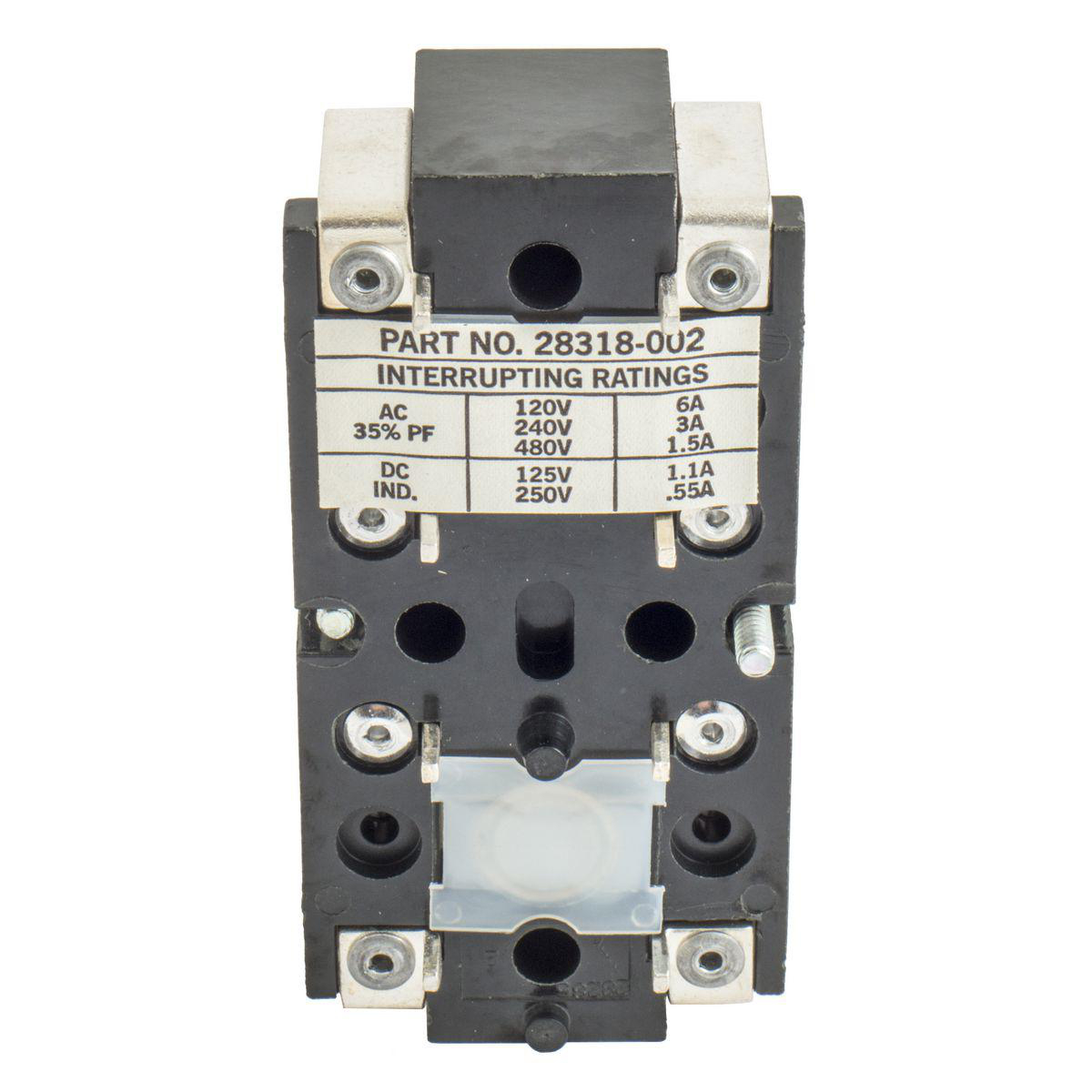

Contact Rating
6 A at 120 VAC, 3 A at 240 VAC 35% PF, 1.1 A at 125 VDC, 0.55 A at 250 V Inductive
Indicator
None
Material
Non-Metallic
Mounting Type
Cable/Screw Terminal
Number of Phases
1
Number of Poles
2 Pole
Operating Temperature
-40 degrees C
Size
Full Sized
Standard
UL
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C
Type
Full Size, 1-Phase, 2-Pole

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Magnetic Starter Controls

General Product Info

12-Digit UPC
783585620015
Color
Black
GTIN
00783585620015
Product UPC
78358562001
Weight
0.3 lb

Dimensions

Height
3 in
Length
1.900 in
Width
3.6 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Single speed insert momentary N.O. and N.C.
