CSA 60A 2P 3W 240V FUSED HD TYPE 1

Manufacturer: Siemens Distribution | Catalog # HFC222N | Electrozad South Part # 272395
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page

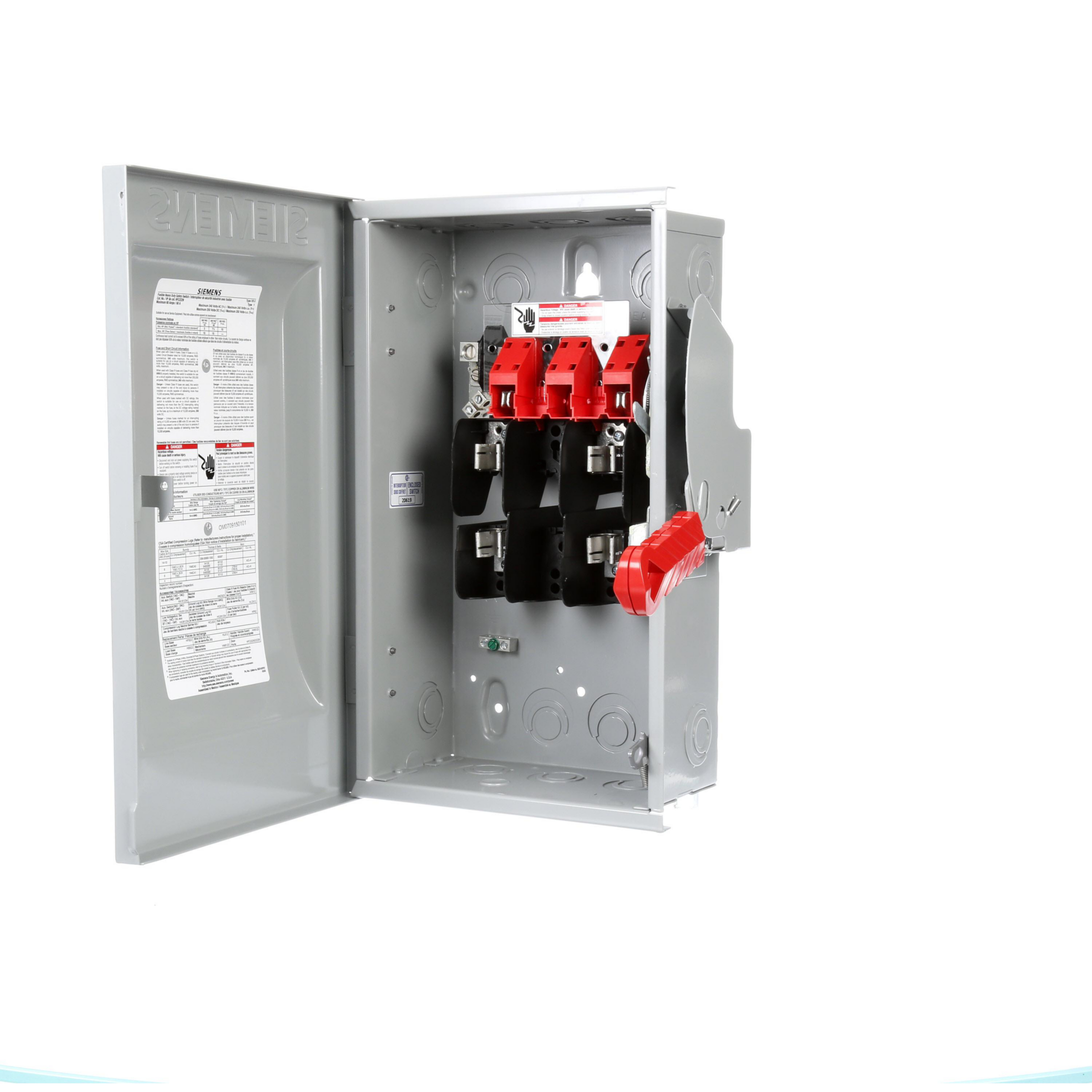

CSA Heavy Duty Safety Switch, Fusible, 2 Poles, 240V, 60A, Type 1, With Neutral - Service Entrance Rated

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage
60 A
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection Type
MECHANICAL LUGS
Enclosure
NEMA1
Material
Steel
Number of Poles
2
Operating Cycles
10000
Operating Temperature
-29 degrees C
TC Connection
MECHANICALLUGS
Type
HEAVYDUTYSWITCH
Wattage
3 Watt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
Safety Switches

General Product Info

12-Digit UPC
783643509610
GTIN
00783643509610
Weight
18.000 lb

Dimensions

Height
8.670 in
Length
16.620 in
Width
10.370 in

Certifications & Compliance

Country of Origin
Mexico
