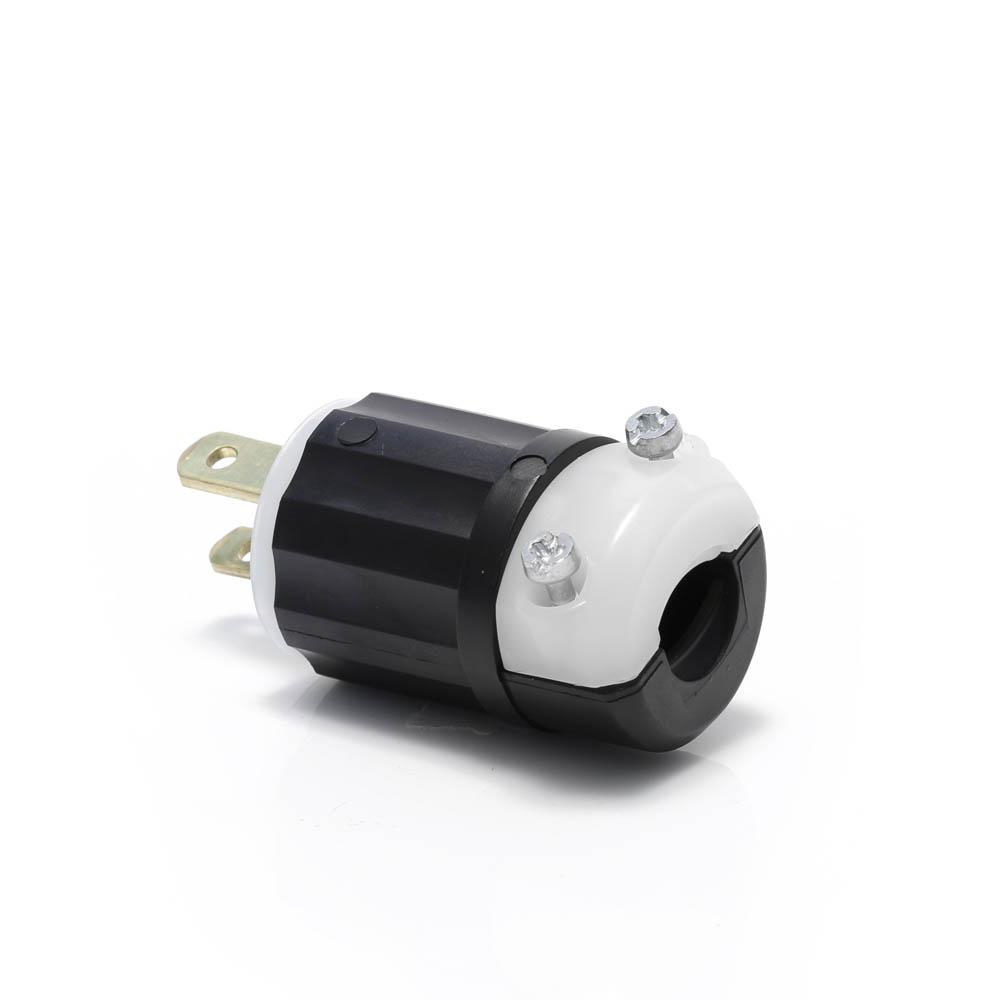

Plug straight blade 2P 2W 125V 15AMP black-white

Manufacturer: Leviton Manufacturing | Catalog # MS2-P | Electrozad South Part # 270305
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Leviton's black white midget line of industrial grade locking blade plug are feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid one-piece construction for superior conductivity. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord.

Technical Information

Amperage
15 A
Applications
For Industrial Use
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-14 AWG
Contact Material
Solid Brass
Cord Size
0.218 - 0.43 in
Device Type
Straight Blade Plug
Dielectric
2000 V
Dielectric Strength
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
No
Material
Super Tough Nylon (Body), Zinc Plated Steel Screw
Mounting Type
Cable
NEMA
WD-1, WD-6
Number of Poles
2
Number of Wires
2
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Standard
ANSI C-73
Temperature Rise
200 %
Type
Straight Blade Plug
Voltage
125 V
Wire Count
2
Wire Size
.218-.430 in

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477011737
Color
Black,White
Environment
Dry
Environmental Conditions
-40 to 60 °C
GTIN
00078477011737

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
