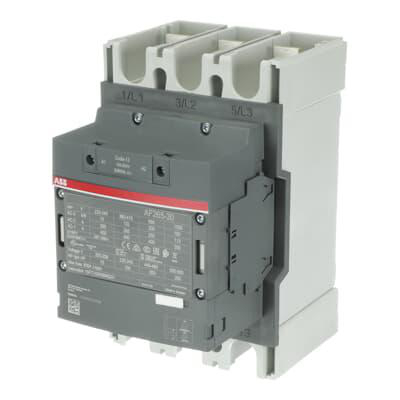

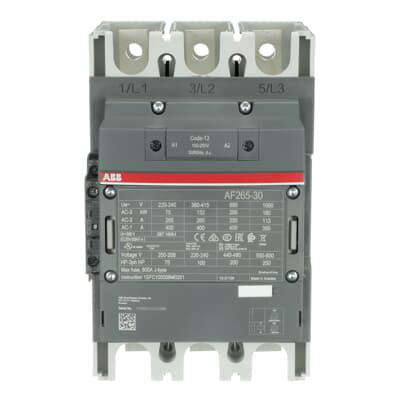

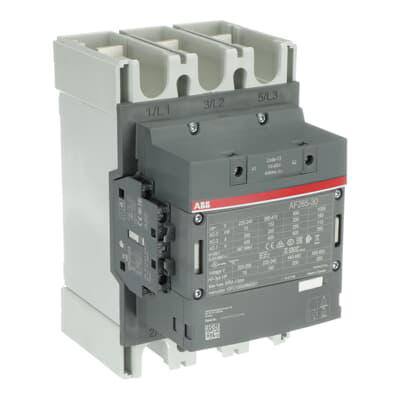

CTR,3P,248A,100-250VAC/DC,1/1

Manufacturer: ABB Inc | Catalog # AF265-30-11-13 | Electrozad South Part # 269944
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 100-250 V, 50/60 Hz and DC

Technical Information

Applications
For Motor Starting, Isolation, By-Pass and Distribution Application Up to 690 V
Coil Voltage
100 - 250 VAC/VDC
Conductor Size
500 MCM
Contact Configuration
3 NO Main, 1 NO, 1 NC Auxiliary
Number of Poles
3
Operating Temperature
50 degrees C
Size
140x225x180mm
Temperature Rating
-25 to 50 degrees C
Terminal Type
Bars
Type
Contactors

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614142695
Environmental Conditions
-40 to 70 °C Storage, 3000 m Altitude
GTIN
888614000000
