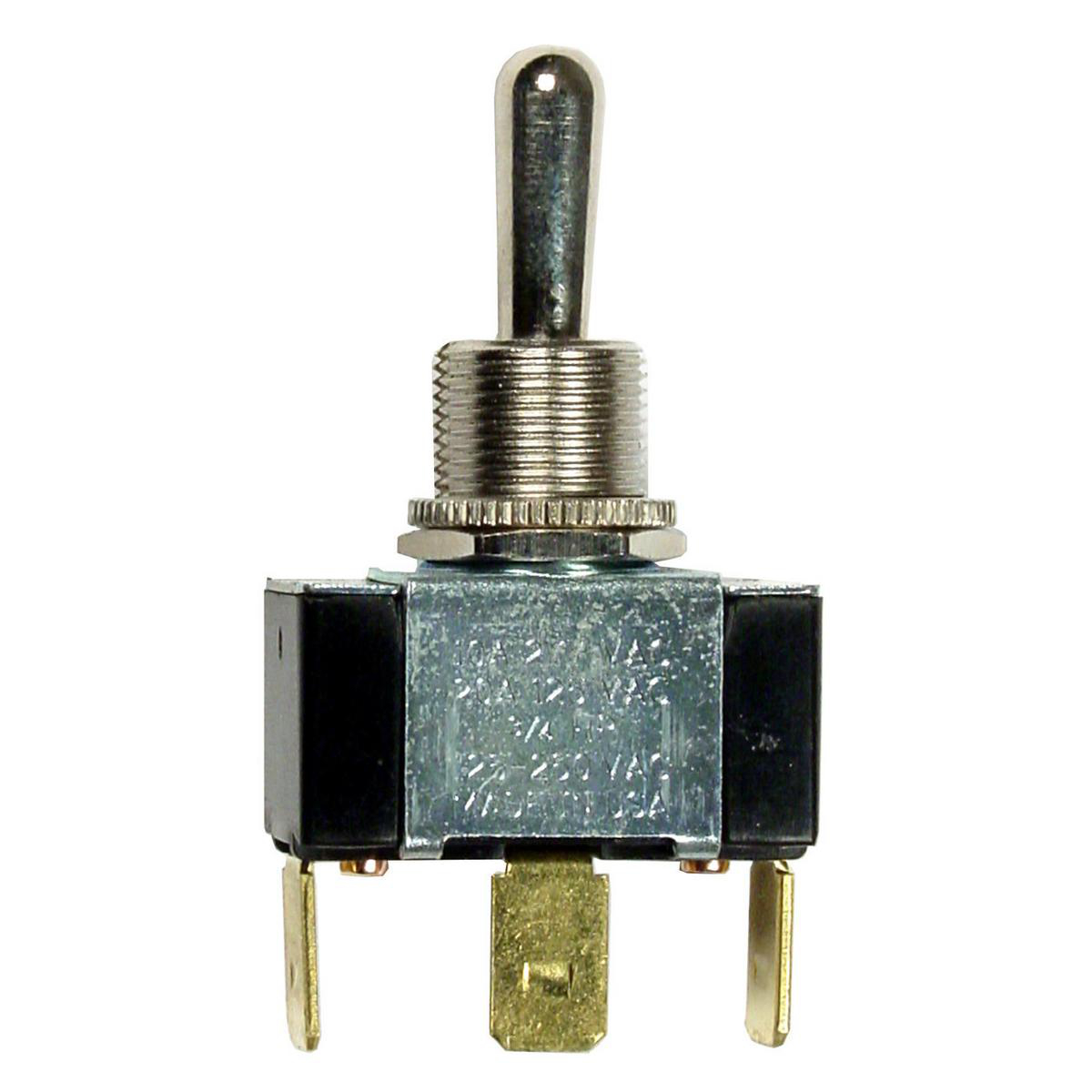

Switch SPDT panel mount spade 10A 250V

Manufacturer: Hubbell Wiring Devices | Catalog # HBL123SP | Electrozad South Part # 268913
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Technical Drawing Manufacturer Warranty
Heavy duty panel mount switch with 3-position center-off. Spade terminal style. Made of impact resistant thermoplastic body. Nickel-plated for corrosion resistance.

Technical Information

Action
Maintained/On-Off
Actuator
Bat Handle
Amperage
10/20 A
Applications
2-Circuit On/Off/On
Contact Configuration
SPDT
Contact Rating
As Indicated
Current
10 A
Grade
Commercial
Horsepower
0.75 hp
Indicator
Comes with Indicator Plate
Interrupt Rating
10A 250V AC, 20A 125V AC
Material
Thermoplastic
Number of Poles
1
Operating Cycles
Not Rated
Operating Temperature
Max Continuous 75 degrees C, Minimum -40 degrees C
Size
2.15 in x 0.56 in x 1.12 in
Standard
UL
Style
Spade Terminal
Switch Type
Single Pole
TC Connection
Spade, 2 Terminals
Type
Panel Mount, General Purpose
Voltage
250/125 V
Wattage
2500 W

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Panel Mount Switches

General Product Info

12-Digit UPC
783585016788
Color
Metallic
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585016788
Product Series
Single Pole/Double Throw
Product UPC
78358501678
Weight
0.15 lb

Dimensions

Height
1.12 in
Length
2.15 in
Width
0.56 in

Certifications & Compliance

Country of Origin
China
Overview
  • Nickel Plated for Corrosion Resistance
