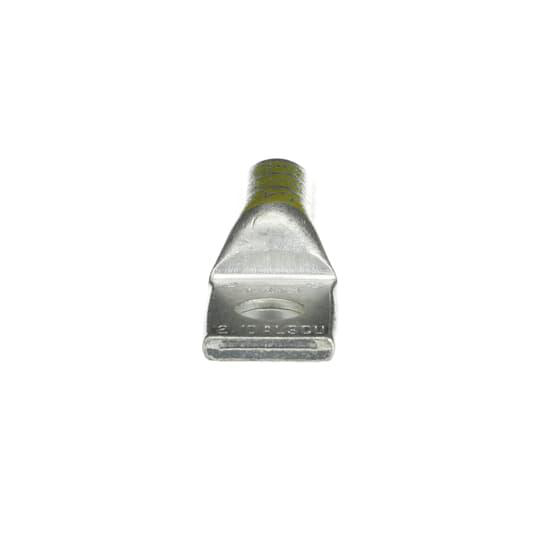

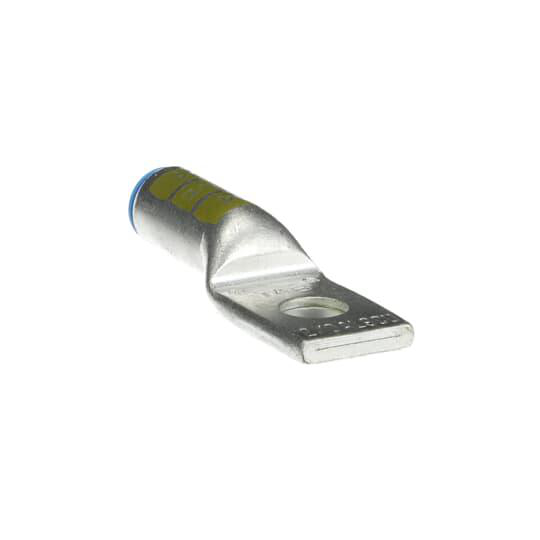

Lug 1hole cu olive 2/0AWG 1/2in 90degC

Manufacturer: ABB | Thomas & Betts | Catalog # 60138 | Electrozad South Part # 268526
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet
Color-Keyed® one hole lug is a compression connector for copper/aluminium conductors. Made of high-conductivity wrought copper with electro-tin plate. 1/2 inch bolt is used and the lug is used for 90 ..C, 600 V to 35 kV applications.

Technical Information

Barrel Length
Long
Barrel Shape
Standard
Cable Size
2/0 AWG
Conductor Size
2/0 AWG
Material
Aluminum, Copper
Number of Holes
1
Number of Studs
1
Standard
UL E9809
Stud Size
1/2 in
Tongue Angle
Straight
Tongue Width
Standard
Type
Long Barrel
Voltage
600 V
Wire Size
2/0 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Color-Keyed®

General Product Info

12-Digit UPC
786210601380
Color
Olive
Finish
Tin Plated
GTIN
05414363144892
Shape
Round
