MH14-10RLX RING HEATSHRINK BOTTLE

Manufacturer: 3M | Catalog # MH14-10R/LX | Electrozad South Part # 267006
$1.94 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

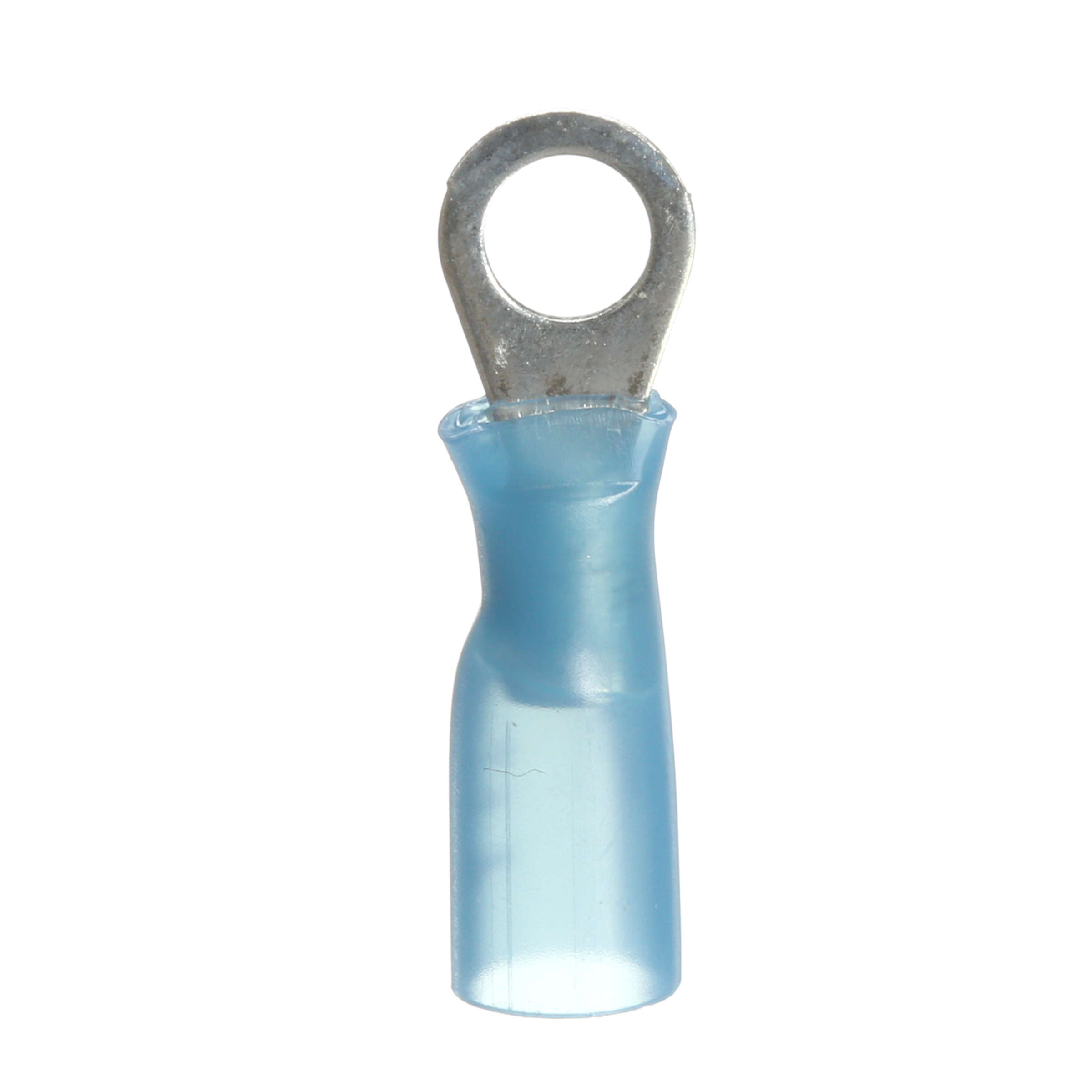

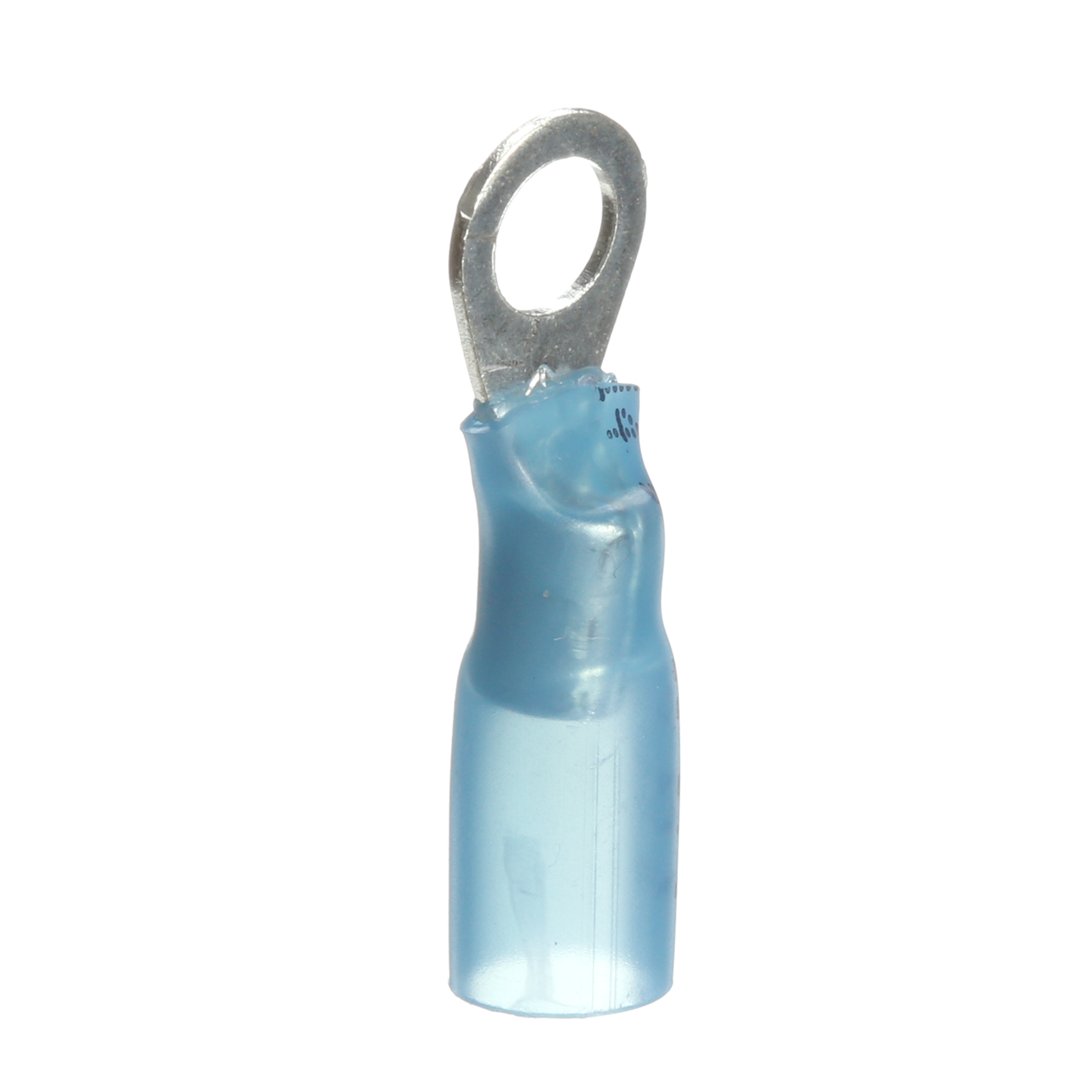

3M™ Scotchlok™ Ring Tongue with heat shrink insulation ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Available in both bottle and bulk packaging. 3M™ Scotchlok™ Ring Tongues are UL Recognized and CSA certified.

Technical Information

Barrel Length
0.25 in
Barrel Type
Brazed
Conductor Size
16-14 AWG
Insulation Material
Heat Shrink
Material
Copper
Max Operating Temperature
221 degrees F
Stud Size
10
Terminal Style
Standard
Terminal Type
Ring
Type
Insulated, Heat Shrink

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128589014
Color
Blue
GTIN
00051128589014
Product UPC
05112858901

Dimensions

Length
1 in
Overall Length
1 in
Thickness
0.03 in
Width
0.31 in
