MNHU14-250DFIX FEMALE DIS NYLON INS HEAT

Manufacturer: 3M | Catalog # MNHU14-250DFIX | Electrozad South Part # 266998
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

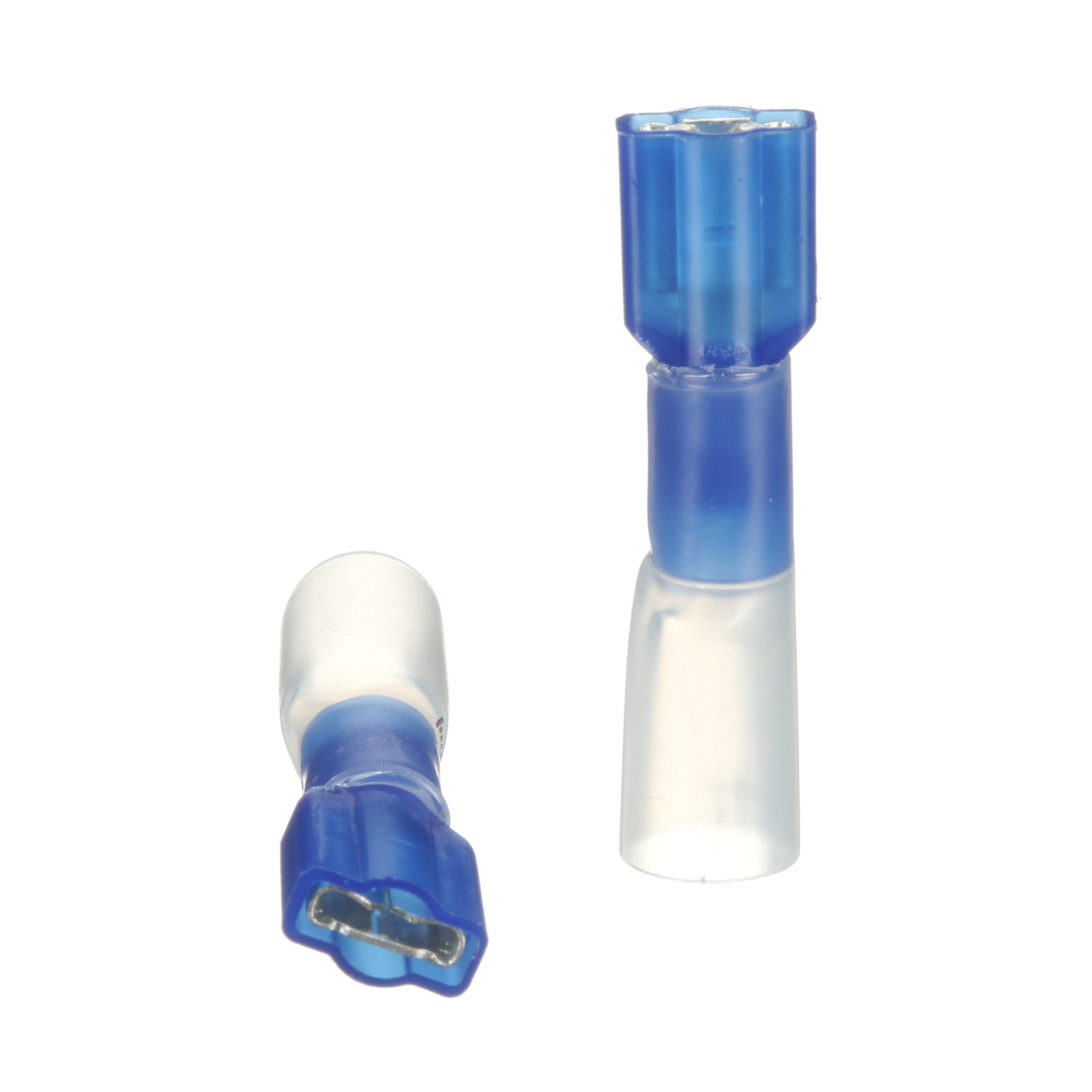

3M™ Scotchlok™ Female Disconnect is an insulated disconnect which attaches to its mating part by slipping the tongue of the female part over male. It has good corrosion resistance, improved mechanical performance, and is both versatile and easy to use. It has dents and rolled edges to offer good holding force, while allowing for a quick disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees Fahrenheit (105 degrees Celsius) and its durable brass construction offers good conductivity and a tin-plated finish resists corrosion. 3M™ Scotchlok™ Female Disconnects are UL Recognized and CSA certified.

Technical Information

Barrel Type
Butted
Conductor Size
16-14 AWG
Insulation Material
Nylon
Max Operating Temperature
221 degrees F
Tab Size
1/4 in
Terminal Style
Fully Insulated
Terminal Type
Disconnect
Type
Heat Shrink

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128589076
Color
Blue
GTIN
00051128589076

Dimensions

Diameter
0.23 in
Length
1.2 in
Overall Length
1.2 in
Thickness
0.032 in
Width
0.37 in
