MNG14-14R/SX NYLON RING BOTTLE

Manufacturer: 3M | Catalog # MNG14-14R/SX | Electrozad South Part # 266995
$1.59 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing

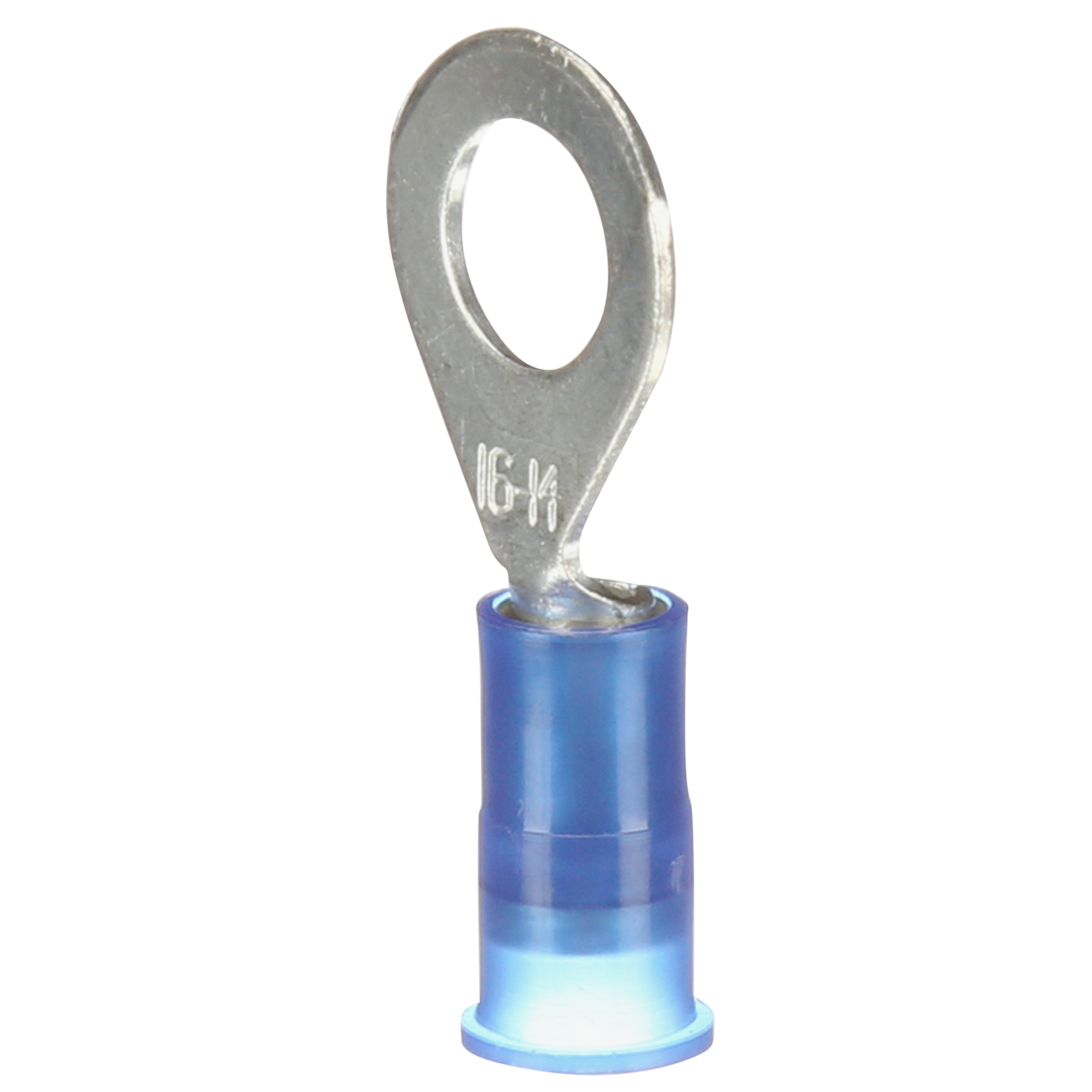

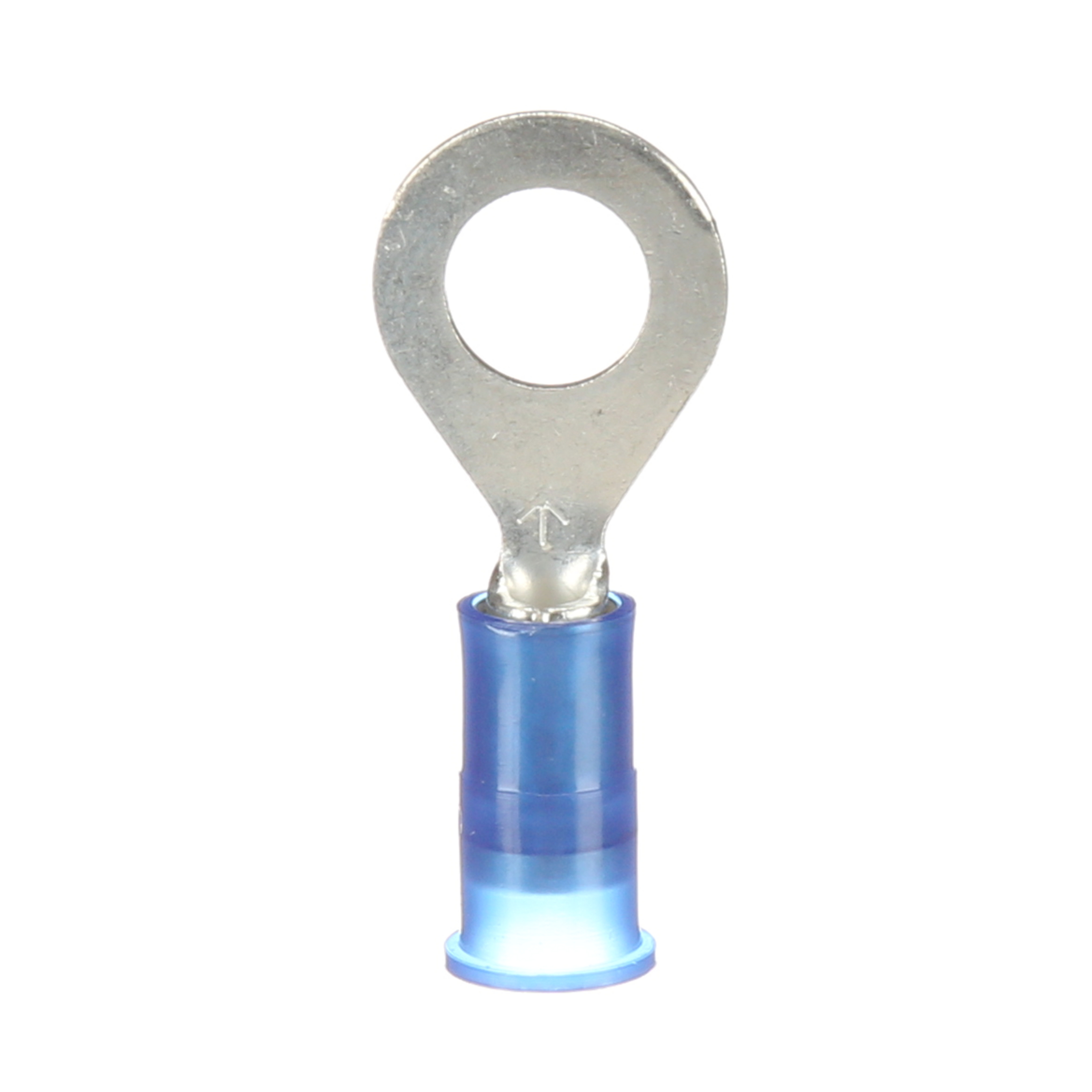

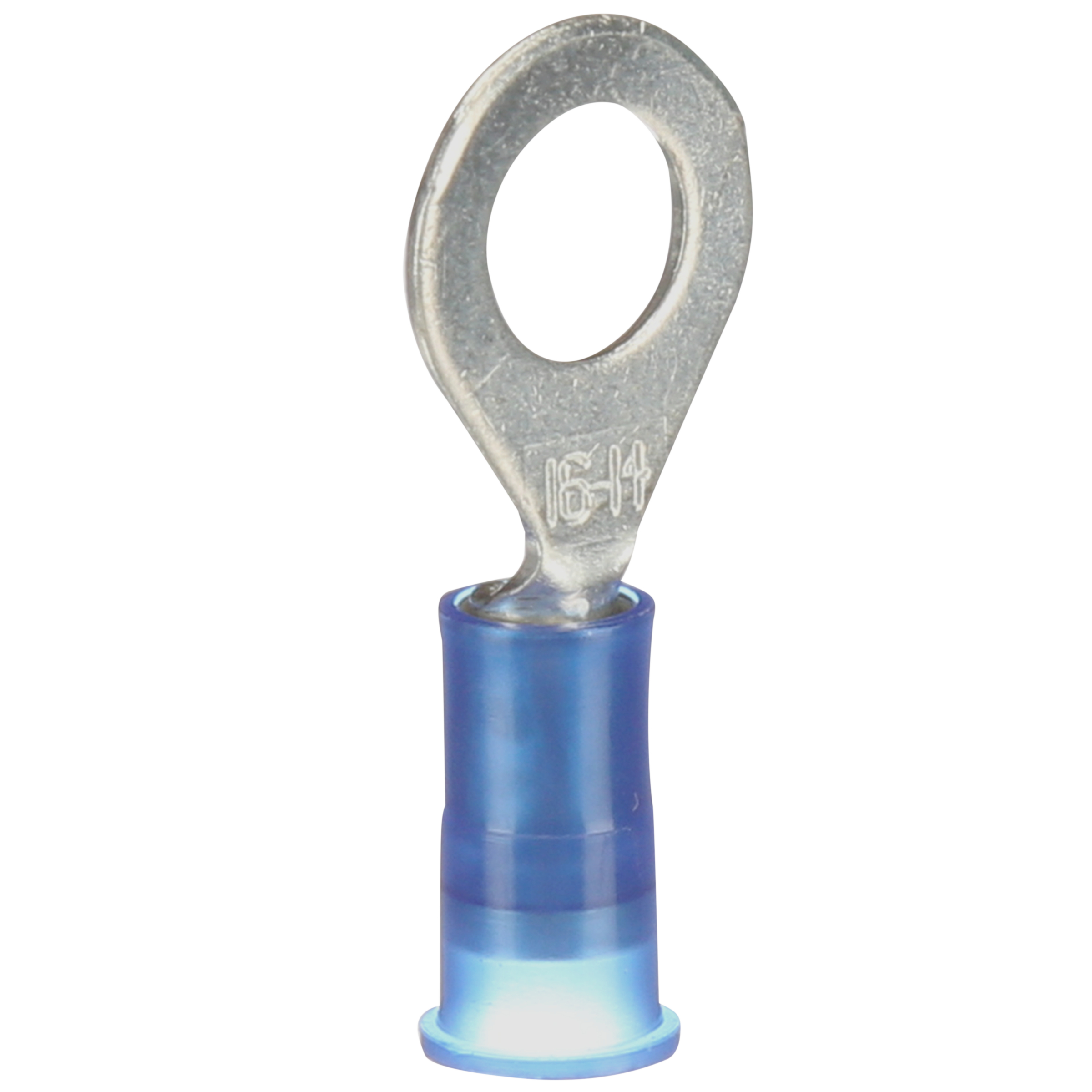

3M™ Scotchlok™ Ring Tongue with nylon insulation ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion. Available in both bottle and bulk packaging. 3M™ Scotchlok™ Ring Tongues are UL Recognized and CSA certified.

Technical Information

Barrel Type
Butted
Conductor Size
16-14 AWG
Insulation Material
Nylon
Material
Copper
Max Operating Temperature
221 degrees F
Stud Size
1/4 in
Terminal Style
Standard
Terminal Type
Ring
Type
Short Sleeve, Standard

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128586631
Color
Blue
Finish
Tin Plated
GTIN
00051128586631
Product UPC
05112858663

Dimensions

Length
1.09 in
Overall Length
1.09 in
Thickness
0.03 in
Width
0.47 in
