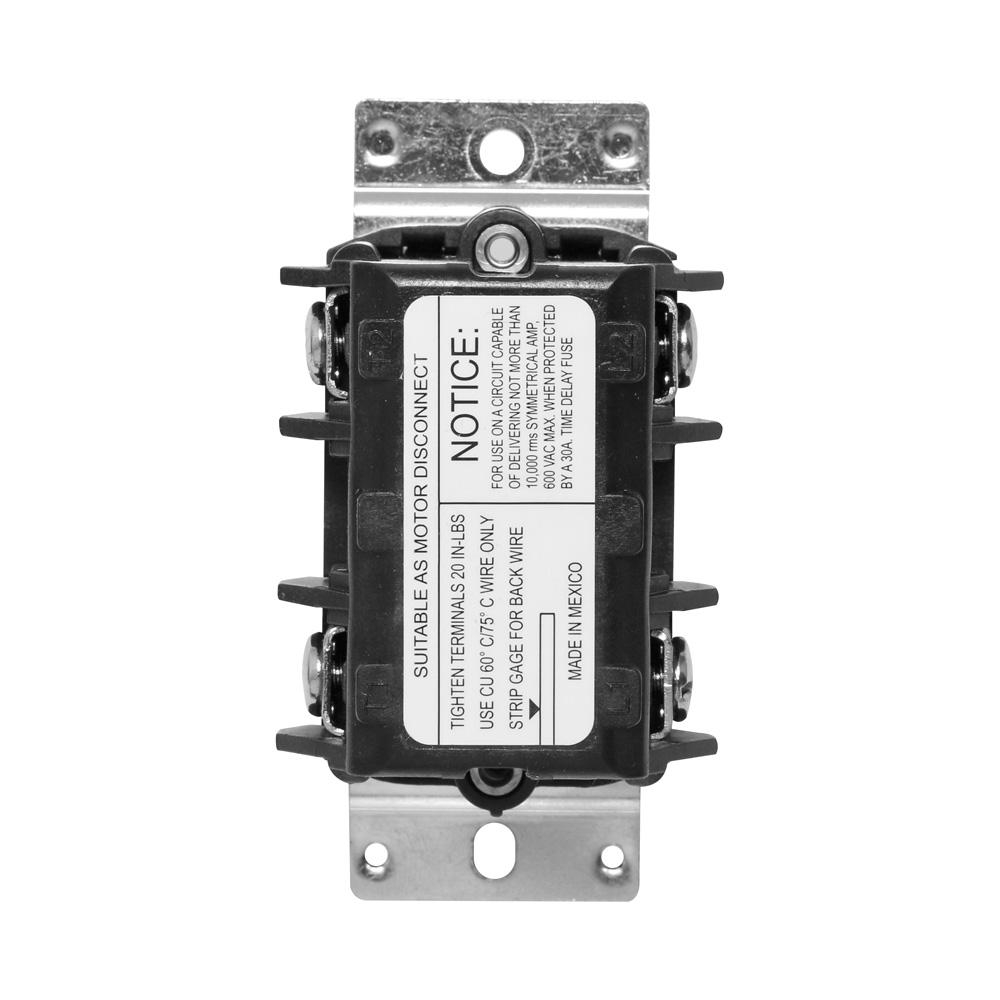

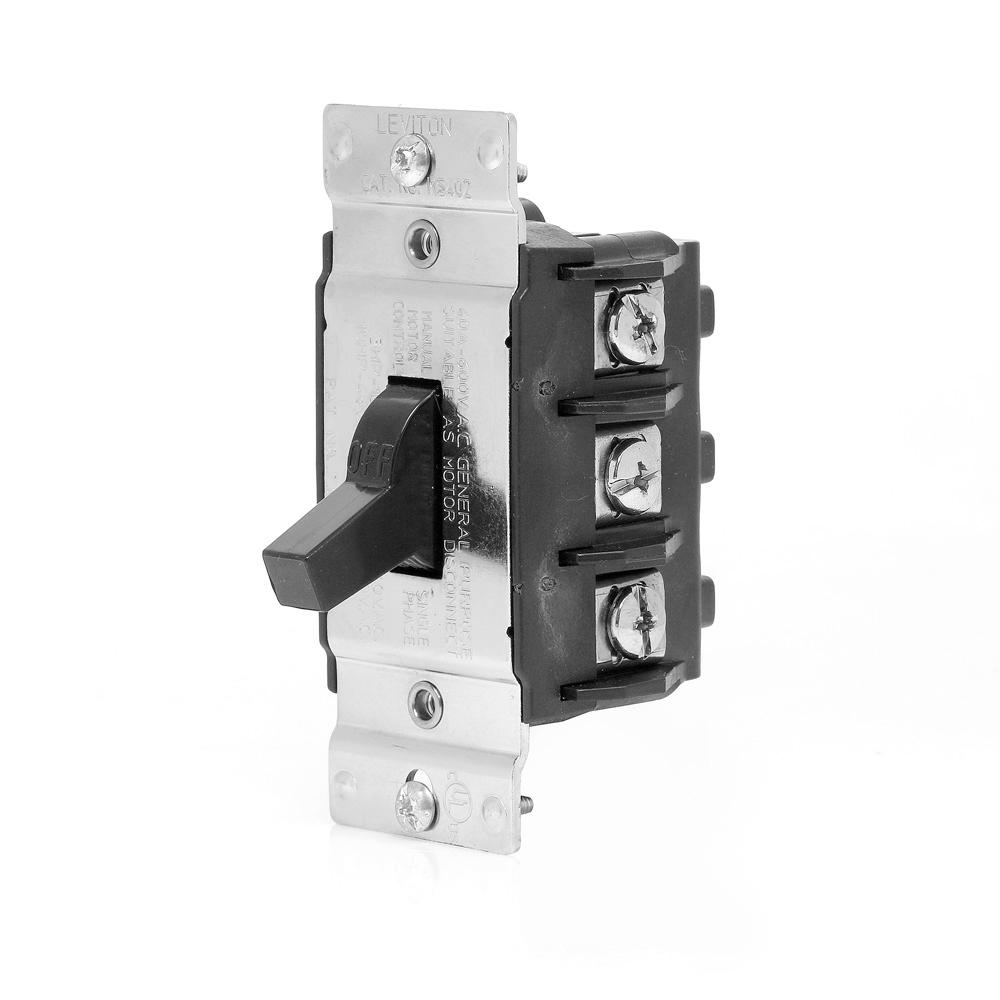

Switch toggle 3-pole AC motor starting 40A 600V black

Manufacturer: Leviton Manufacturing | Catalog # MS403-DS | Electrozad South Part # 266374

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
AC motor starting switch. 3-pole, 3-phase. Suitable as motor disconnect, toggle, industrial grade. Non grounding, back and side wiring. Leviton industrial grade. AC Manual motor starter switches provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of bottling lines, pumping machines, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single phase and three phase applications. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

Technical Information

Action
TPST
Actuator
Toggle
Amperage
40 A
Applications
Commercial
Base Material
Thermoplastic Polyester
Connection Type
Back Wired,Side Wired
Contact Material
Silver-Cadmium
Device Type
Toggle Switch
Dielectric
2200 V
Enclosure
WD-6
Face Material
Polyester
Flamability Class
Rated V-0 Per UL 94
Grounding
Non-Grounding
NEMA
WD-1
Number of Poles
3
Operating Temperature
-40 to 60 degrees C
Size
3.75 H x 23 W x 2.46 D IN
Standard
ANSI C-73
TC Connection
Back Wired;Side Wired
Temperature Rise
50 degrees C
Termination Type
Back Wire,Side Wire
Toggle Material
Thermoplastic Polyester
Torque
20 lb-in
Type
Standard
Voltage
600 V

Manufacturer Information

Brand
Leviton
Sub Brand
Motor Starter Switches

General Product Info

12-Digit UPC
078477374207
Color
Black
Environmental Conditions
Flammability (Rated V-0 per UL94)
GTIN
00078477374207

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
