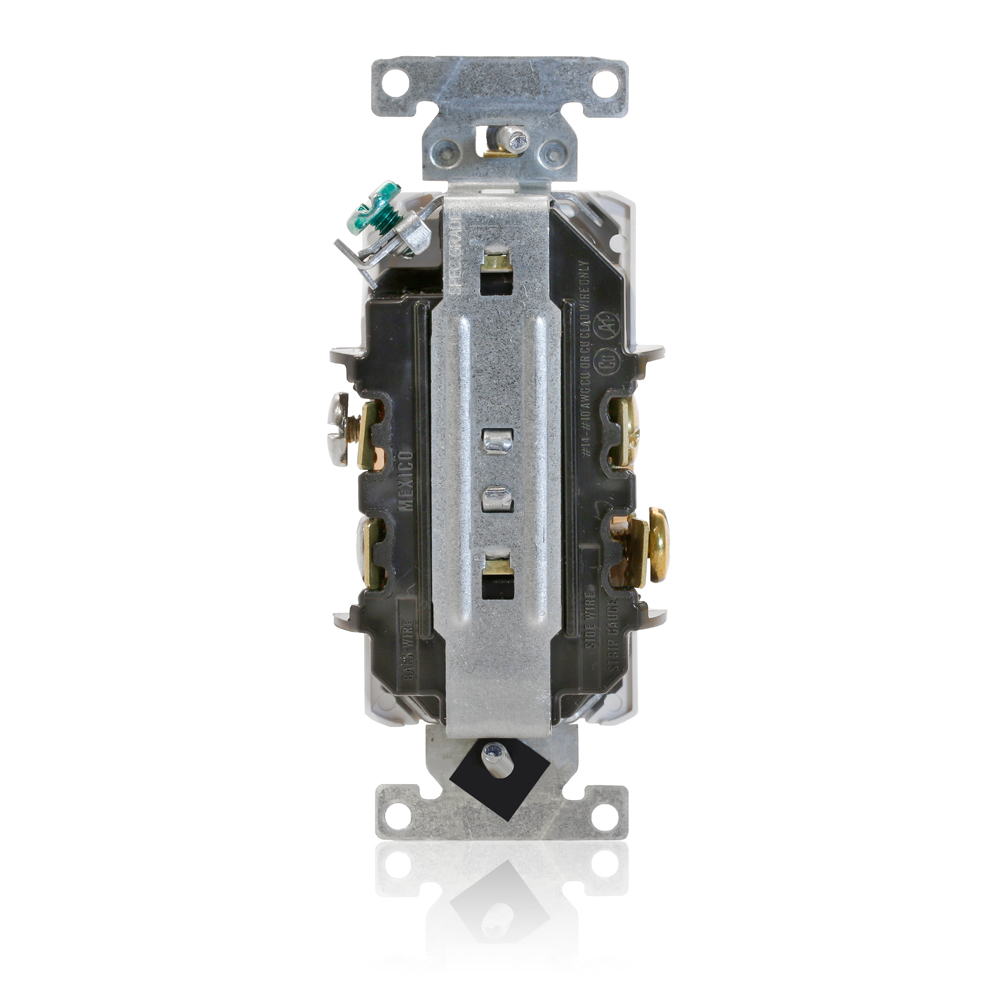

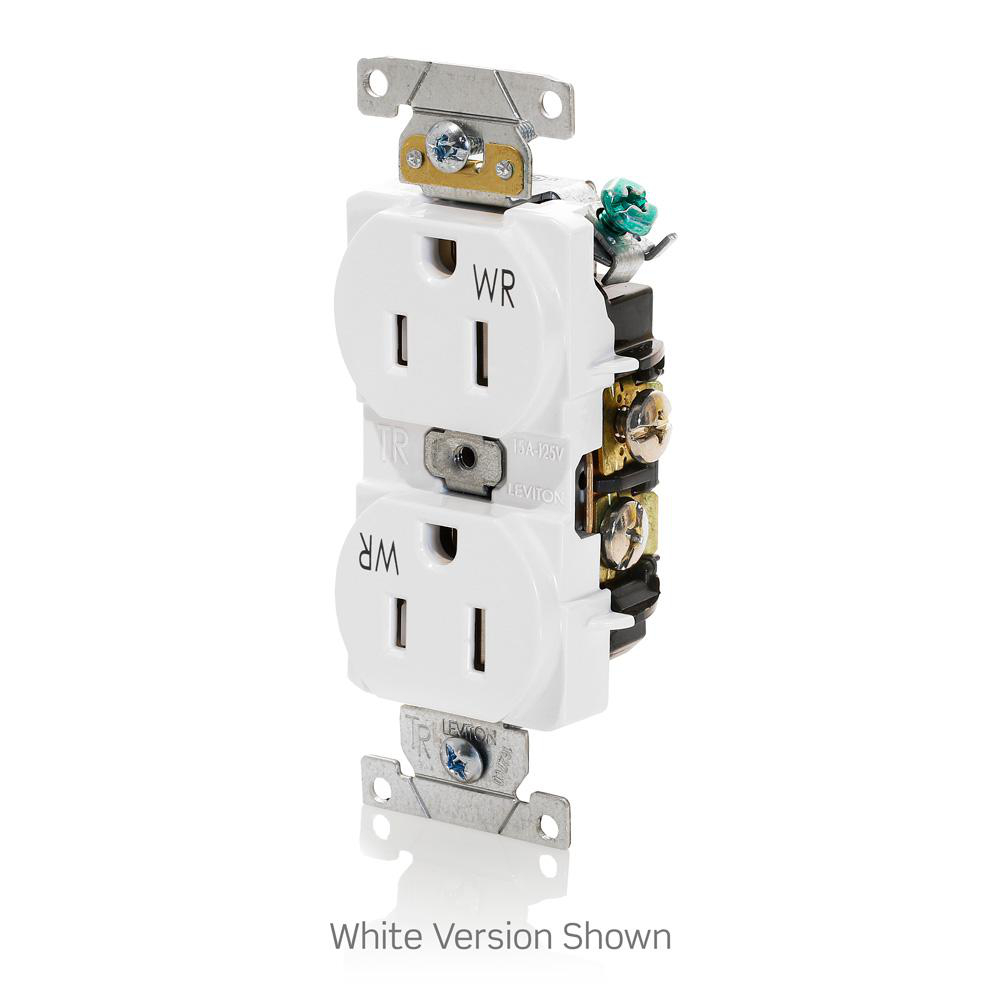

Receptacle straight duplex weather & tamper resistant 2P 3W 125V 15AMP white

Manufacturer: Leviton Manufacturing | Catalog # TWR15-W | Electrozad South Part # 265832
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet
Leviton's line of tamper-resistant receptacles are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in residential , commercial, industrial and hospital grades. Weather resistant devices are ruggedly constructed to seal out moisture to meet all your outdoor needs.

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Connection Type
Side Wired
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Dielectric Strength
2000 (Min.)
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Material
Nylon
Mounting Type
Wall Box
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
75 degrees C
Size
46 H x 1.53 W x 1.11 D IN
Standard
ANSI C-73,ANSI C-73,CSA C22.2. No. 42,CSA C22.2. No. 42,Fed Spec W-C-596,Fed Spec W-C-596,UL 498,UL 498
TC Connection
Side Wired
Temperature Rating
-40 - 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Type
Conversion to Straight Blade Duplex
Voltage
125 V
Wire Count
3,3
Wire Size
14 - 10 AWG
Wire Type
Stranded Building Wire,Stranded Building Wire

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT COMMERCIAL R

General Product Info

12-Digit UPC
078477381847
Color
White
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477381847

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Certifications
CULus,CULus,NOM-ANCE,NOM-ANCE
Country of Origin
Mexico
