BRKR ED4 3P 480V 45A | Electrozad South

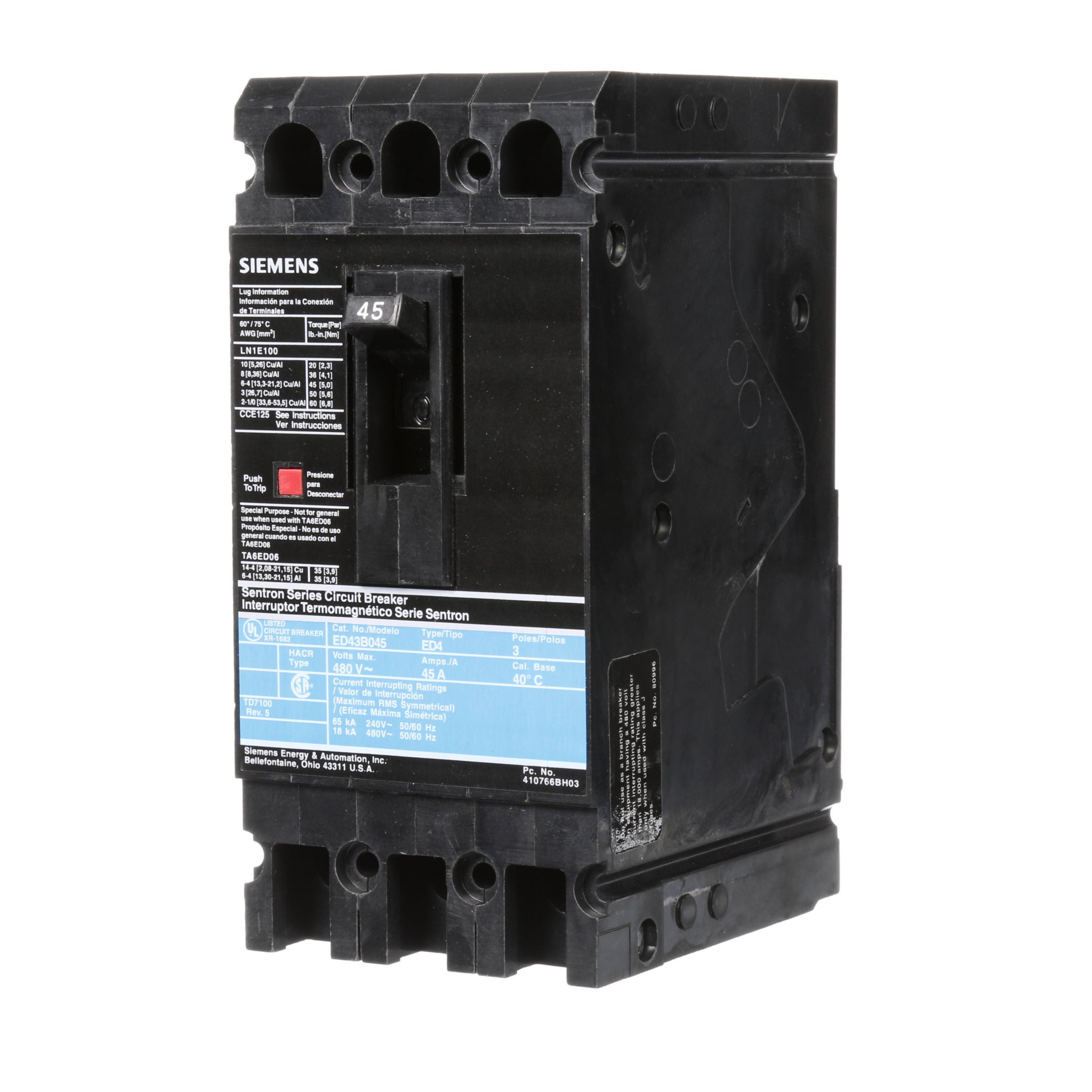

Product image for BRKR ED4 3P 480V 45A
Image thumbnail 0
Image thumbnail 1
To:
CC:

BRKR ED4 3P 480V 45A

Manufacturer: Siemens Distribution | Catalog # ED43B045 | Electrozad South Part # 264808
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 45A 3-POLE (18KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.

Technical Information

Actuator
Varying
Applications
Standard 40C Breaker
Enclosure
Varying
Frame
ED
Interrupt Rating
18KAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
TC Connection
N/A
Trip Range
N/A
Trip Type
Thermal-Magnetic
Type
ED4

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643209428
GTIN
00783643209428

Dimensions

Height
6 in
Length
4.000
Width
7.000
