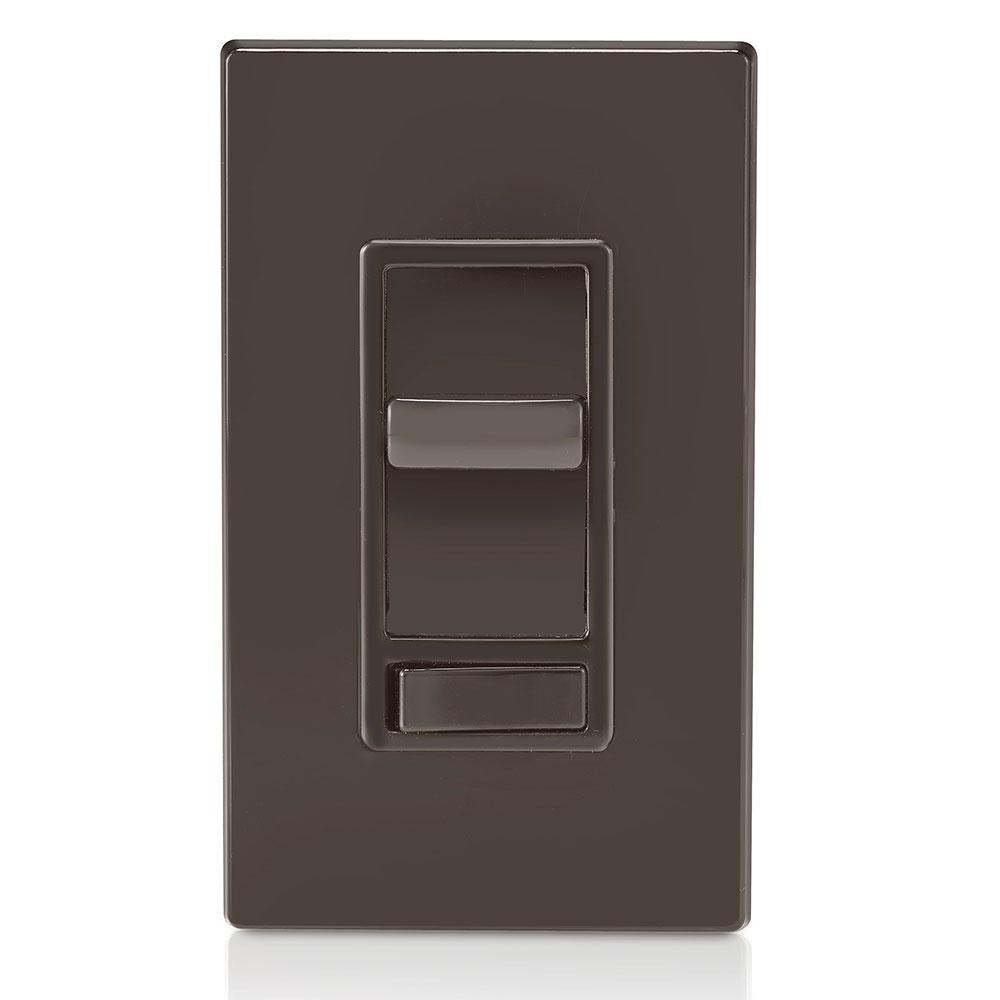

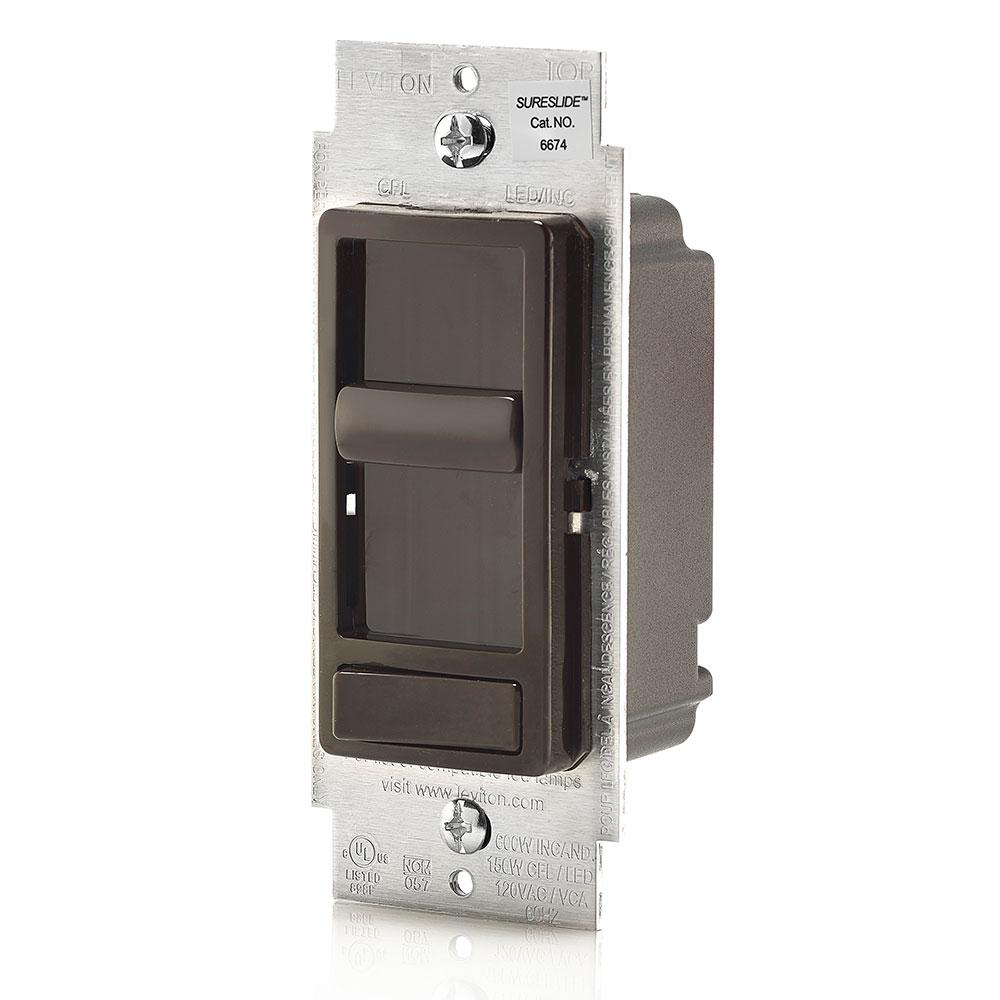

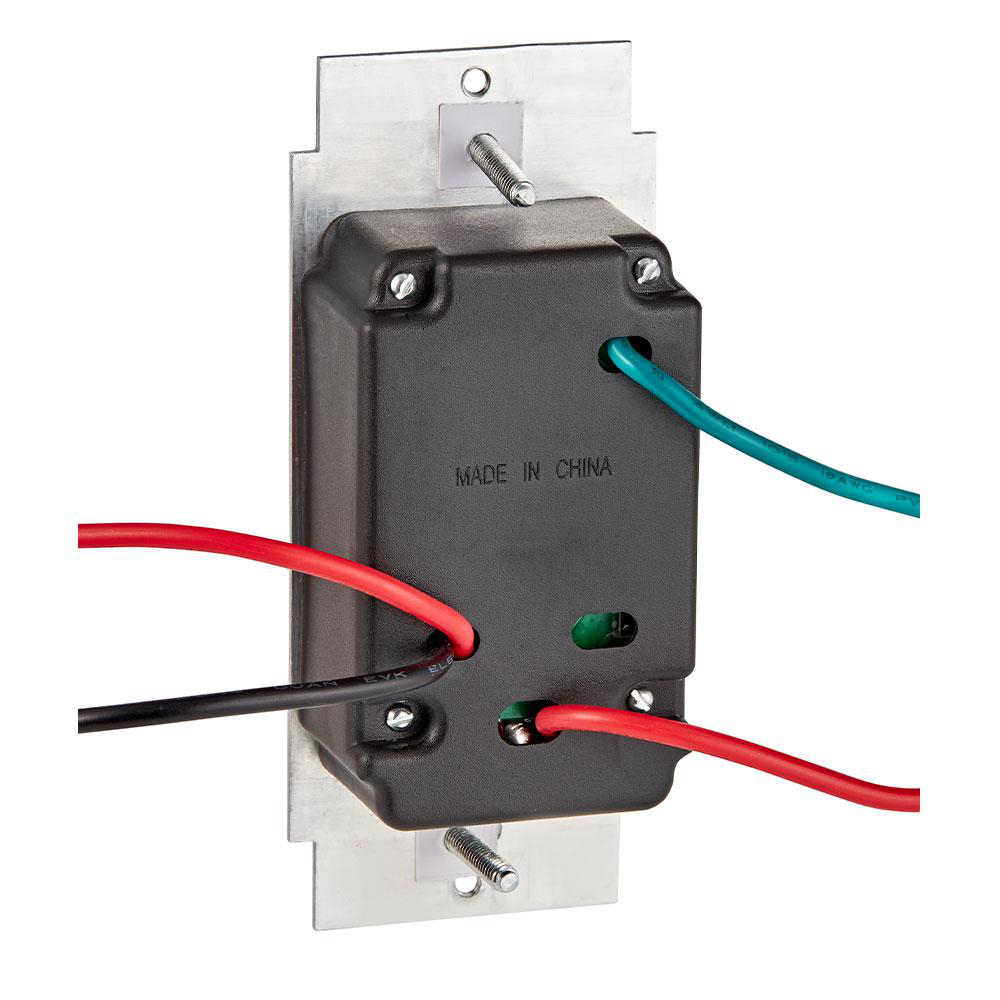

Dimmer preset slide 1P3W 150W 120V brown

Manufacturer: Leviton Manufacturing | Catalog # 6674-P0B | Electrozad South Part # 263463
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
Leviton Decora SureSlide® dimmers provide smooth, slide-action, full-range dimming for incandescent and dimmable LED and CFL lamps. Featuring a pre-set ON/OFF switch, this device allows the user to set the desired brightness level to operate automatically with the ON/OFF function. The dimmer is designed specifically for dimmable light-emitting diodes (LED) and dimmable compact fluorescent (CFL) lamps, it is also compatible for use with incandescent lamps.

Technical Information

Action
Standard ON/OFF
Applications
For Commercial use, CFL/LED, Incandescent Lighting Control
Frequency
60 Hz
Material
Plastic
Mounting Type
Wall
Number of Poles
1
Operating Temperature
0 - 55 degrees C
Power Rating
600 W Incandescent, 150 W LED and CFL
Size
4.12 H x 1.73 W x 0.93 D IN
Standard
CSA,UL
Style
SureSlide
Switch Type
3-Way,Single-Pole
Type
3 Way, Preset Slide, Electro-Mechanical
Voltage
120 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®, SureSlide®

General Product Info

12-Digit UPC
078477570357
Color
Brown
Environmental Conditions
20 - 90% RH Non-Condensing, -10 to 85 °C Non Operating
GTIN
00078477570357

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
China
