Grip cord straight male nylon 3/4" NPT 0.5-0.625"

Manufacturer: Kellem | Catalog # CG610NM | Electrozad South Part # 261465
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Manufacturer Warranty

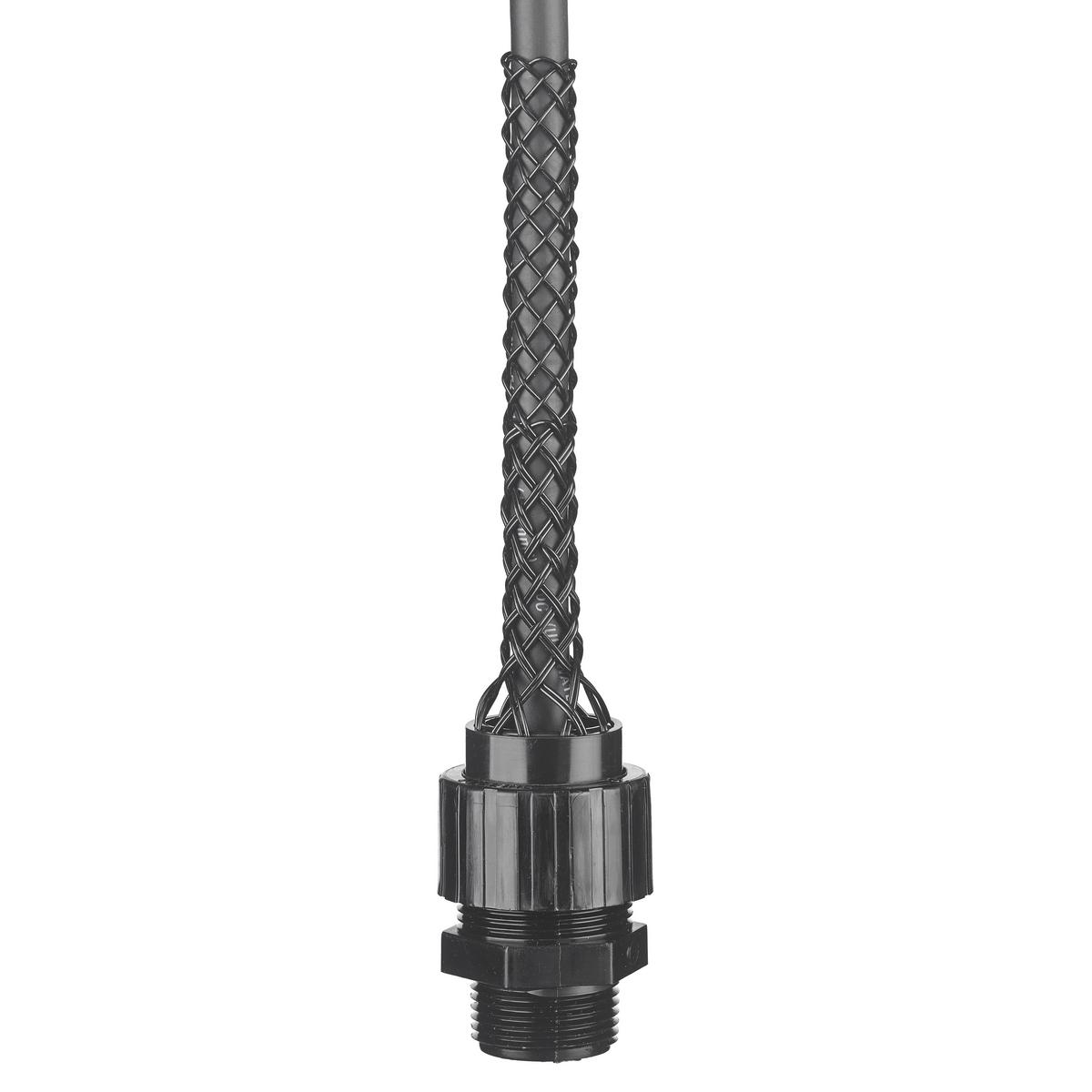

KELLEMS® Deluxe cord grip. Completely eliminate pull tension on terminals, control cable arc-of-bend, prevent cord pull-out. Nylon fittings and non-metallic mesh. Liquidtight for insulated cables. Straight male 3/4 inch NPT thread. F3-form size.

Technical Information

Applications
Straight Male- Form 3
Cable Size
0.5 - 0.625 in
Cable Type
Jacketed UL Listed Cable
Material
Nylon
Number of Conductors
1
Size
3/4" NPT
Style
For Insulated Cables
TC Connection
3/4 in NPT
Temperature Rating
-30 To 225 degrees F
Type
Straight, Male, Form 3, Standard, Deluxe

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Kellems Wire Management

General Product Info

12-Digit UPC
783585335063
Color
Black
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
GTIN
00783585335063
Product Series
Deluxe Cord Grips
Product UPC
78358533506
Weight
0.15 lb

Dimensions

Height
1.8 in
Length
9.000 in
Width
4.9 in

Certifications & Compliance

Certifications
UL Listed CSA Certified
Country of Origin
Puerto Rico
Overview
  • Neoprene bushing is oil and watertight
  • Non-metallic mesh is corrosion resistant
  • Nylon Fitting
