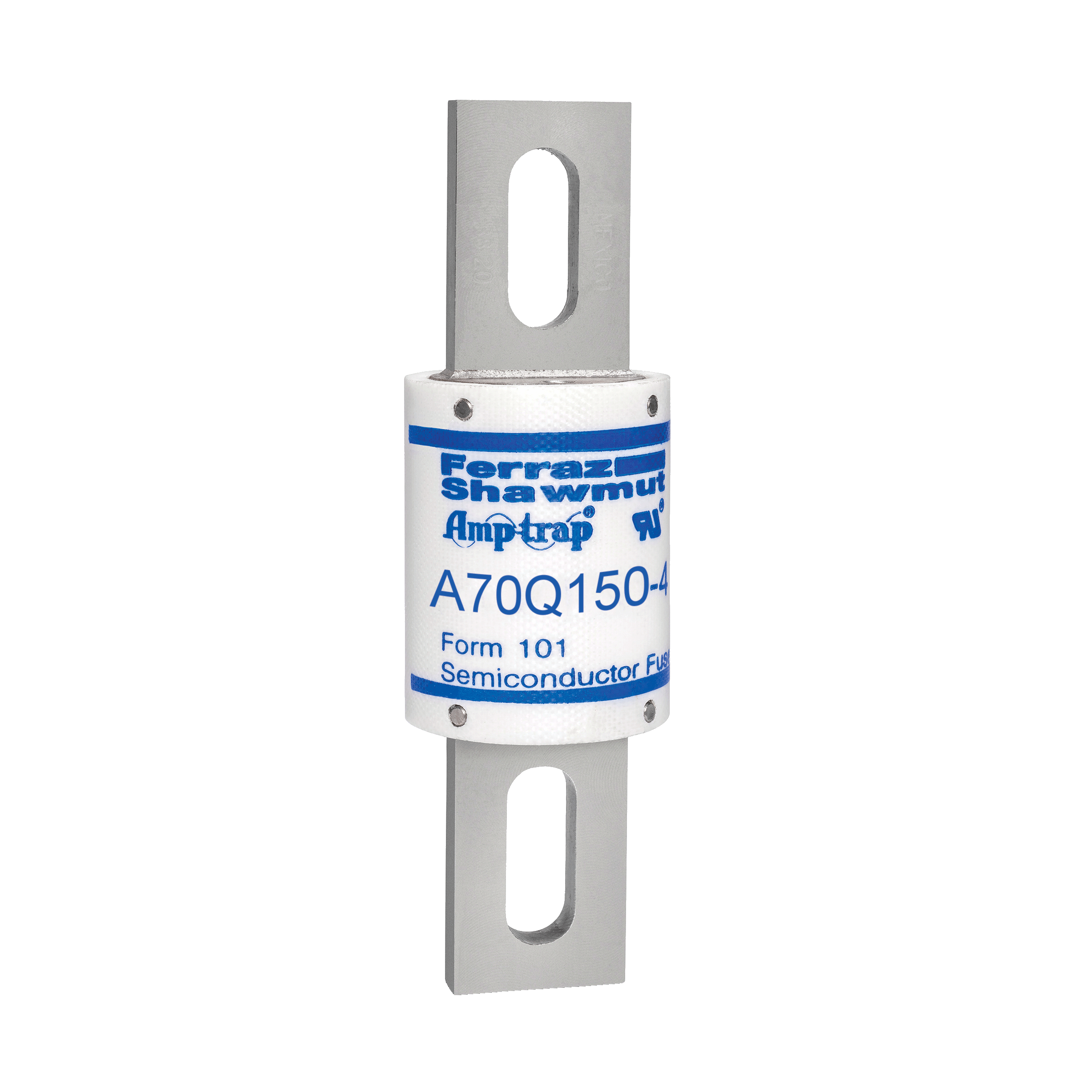

High Speed Fuse Amp-Trap® A70Q 700VAC 650VDC 150A Bolted Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A70Q150-4 | Electrozad South Part # 25960
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A70Q Amp-Trap® high speed fuses were developed for inverter applications requiring extremely low I2t. A70Q fuses provide the most responsive protection for applications not required to sustain heavy overloads. Typically used for replacement purposes.

Technical Information

Amperage
150 A
Applications
Protection of inverters and other equipment requiring the best AC or DC protection in this voltage range
Connection Type
Blade
Frequency
50/60 Hz
Insulation Material
GMG
Max Operating Temperature
80 degrees C
Mounting Type
Bolted
Rated Voltage AC
700 V
Rated Voltage DC
650 V
TC Connection
Bolted
Terminal Material
Tin-Plated Copper
Terminal Type
Bolted
Type
North American Round Style
Voltage
700 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001140960
GTIN
30782001140961
Weight
0.6 lb

Dimensions

Diameter
1.5 in
Length
5.09 in

Certifications & Compliance

Country of Origin
Mexico
