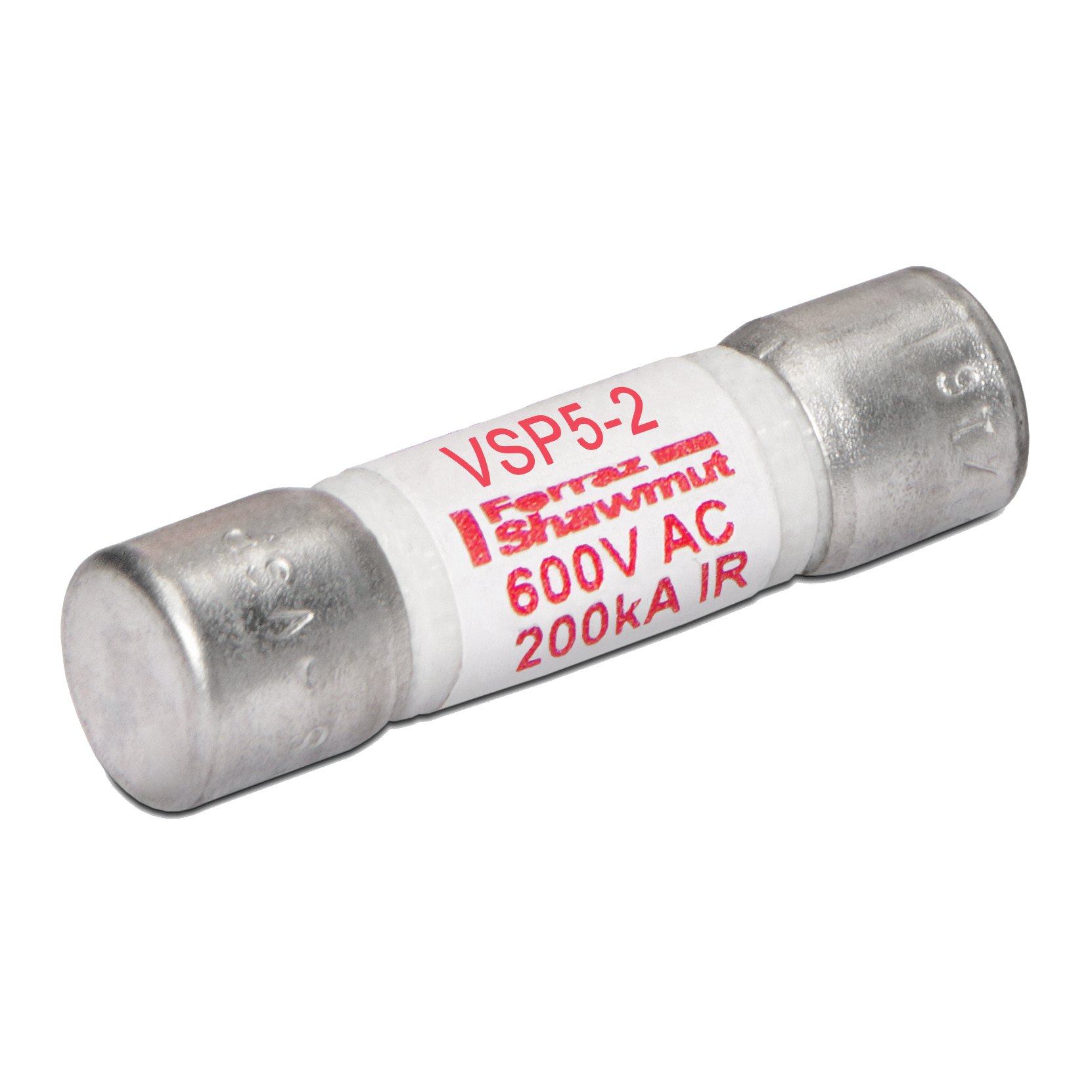

VSP MOV Fuses 600VAC Surge Capacity: 5kA Ferrule

Manufacturer: Ferraz Shawmut Mersen | Catalog # VSP5-2 | Electrozad South Part # 25924
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

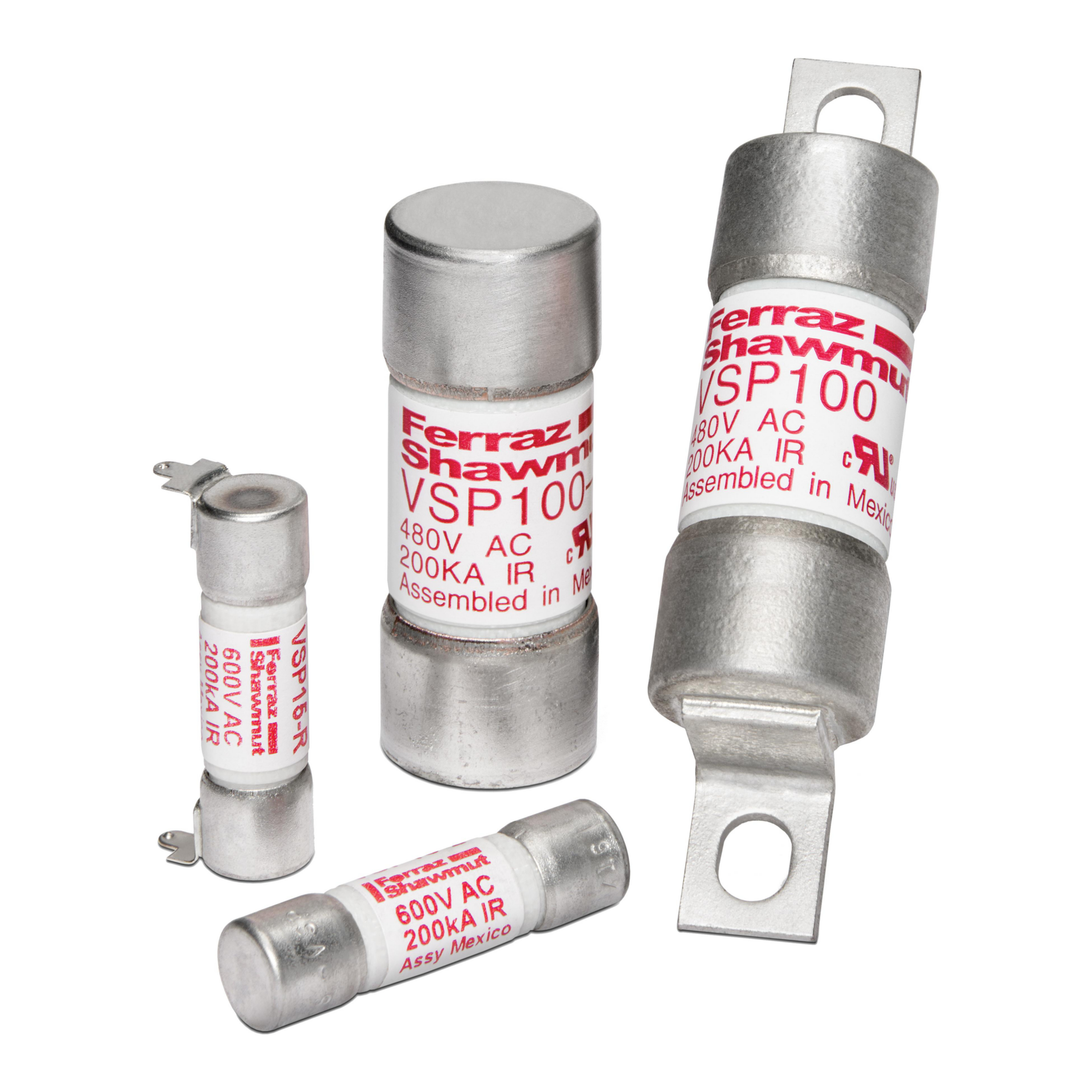

Mersen surge suppression fuses are specially designed to address the protection of SPD systems. Our surge suppression fuses have been specially designed to withstand 8/20 ..Sec surge pulses without opening, allowing the SPD system to react to the surge. All surge suppression fuses have a 8/20 ..Sec surge rating, not a continuous current rating. Under AC short circuit conditions these surge suppression fuses are very current limiting.

Technical Information

Applications
For Rigid Conduit
Connection Type
Ferrule
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
200 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
600 V
Standard
CSA,E2186,UL
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
MOV, Double-Level, Internal Component
Voltage
600 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001231231
GTIN
30782001231232
Weight
0.02 lb

Dimensions

Diameter
0.41 in
Length
1.5 in

Certifications & Compliance

Country of Origin
Mexico
