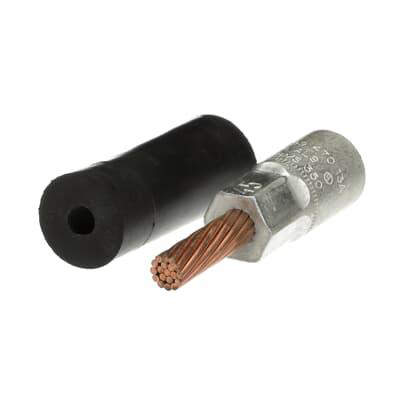

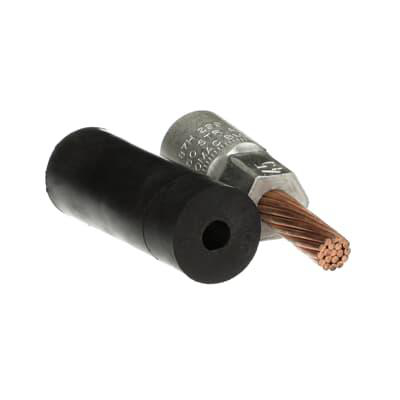

Terminal adapter pin 2strand aluminium 4AWG copper orange

Manufacturer: Blackburn Service Connectors | Catalog # PA02 | Electrozad South Part # 256221
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet
Connector for aluminium conductors only, pigtail may be inserted into either aluminium or copper connectors. Insulating cover included. 90..C Rating per UL standard. Tin-plated stranded copper wire pigtail. Tin-plated aluminium barrel pre-filled with oxide inhibitor and capped.

Technical Information

Barrel Length
Long
Cable Size
2 AWG
Conductor Size
2 AWG
Material
Aluminum
Standard
UL E63167
Stud Size
4 AWG
Temperature Rating
90 degrees C
Type
Type PA

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786134021
Box Quantity
250
Color
Orange
Finish
Tin-Plated
GTIN
00783786134021
Used With
Aluminum Conductors

Dimensions

Overall Length
1.21 in
