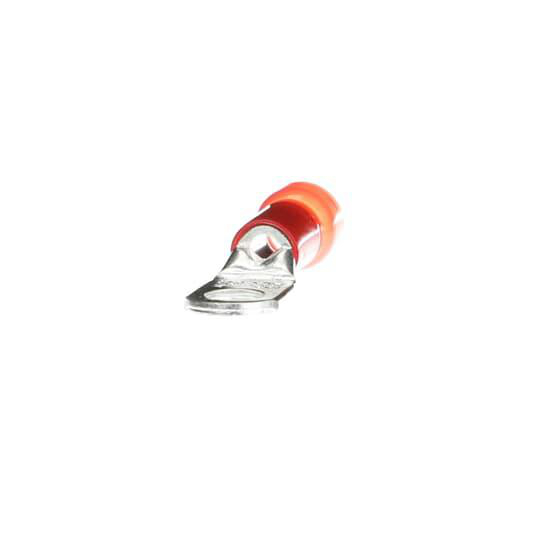

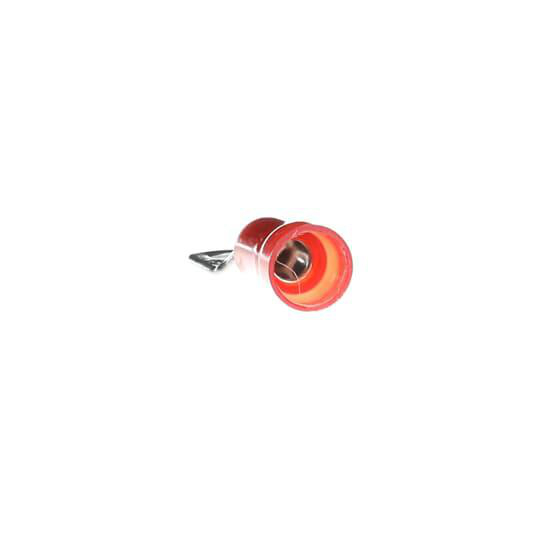

Terminal ring insul nyl lrg 8AWG 1/4in red

Manufacturer: ABB | Thomas & Betts | Catalog # RD8-14 | Electrozad South Part # 255198
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
Sta-Kon® Ring terminal can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire. Constructed of electrolytic copper for high conductivity.

Technical Information

Barrel Type
Brazed/Overlapping Seam, Funnel
Conductor Size
8 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
1/4 in
Temperature Rating
105 degrees C
Terminal Type
RD
Type
Long Sleeve
Voltage
600 V
Wire Size
8 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210872025
Color
Red
Finish
Tin Plated
GTIN
05414363159759
Used With
Round Conductors

Dimensions

Height
3 in
Thickness
.04 in
Width
1.3 in
