Receptacle flush mount industrial 3P 4W 125/250V 60A black

Manufacturer: Leviton Manufacturing | Catalog # 9460 | Electrozad South Part # 25493
*Call For Price*
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Leviton...s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

Technical Information

Amperage
60 A
Applications
Commercial
Body Material
Nylon
Conductor Size
14-6 AWG
Connection Type
Side Wire
Device Type
Straight Blade Receptacle
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Grade
Commercial
Grounding
Grounding
Horsepower
3-1/2 hp
Material
Duroplast
Mounting Type
Screw, Box, Flush

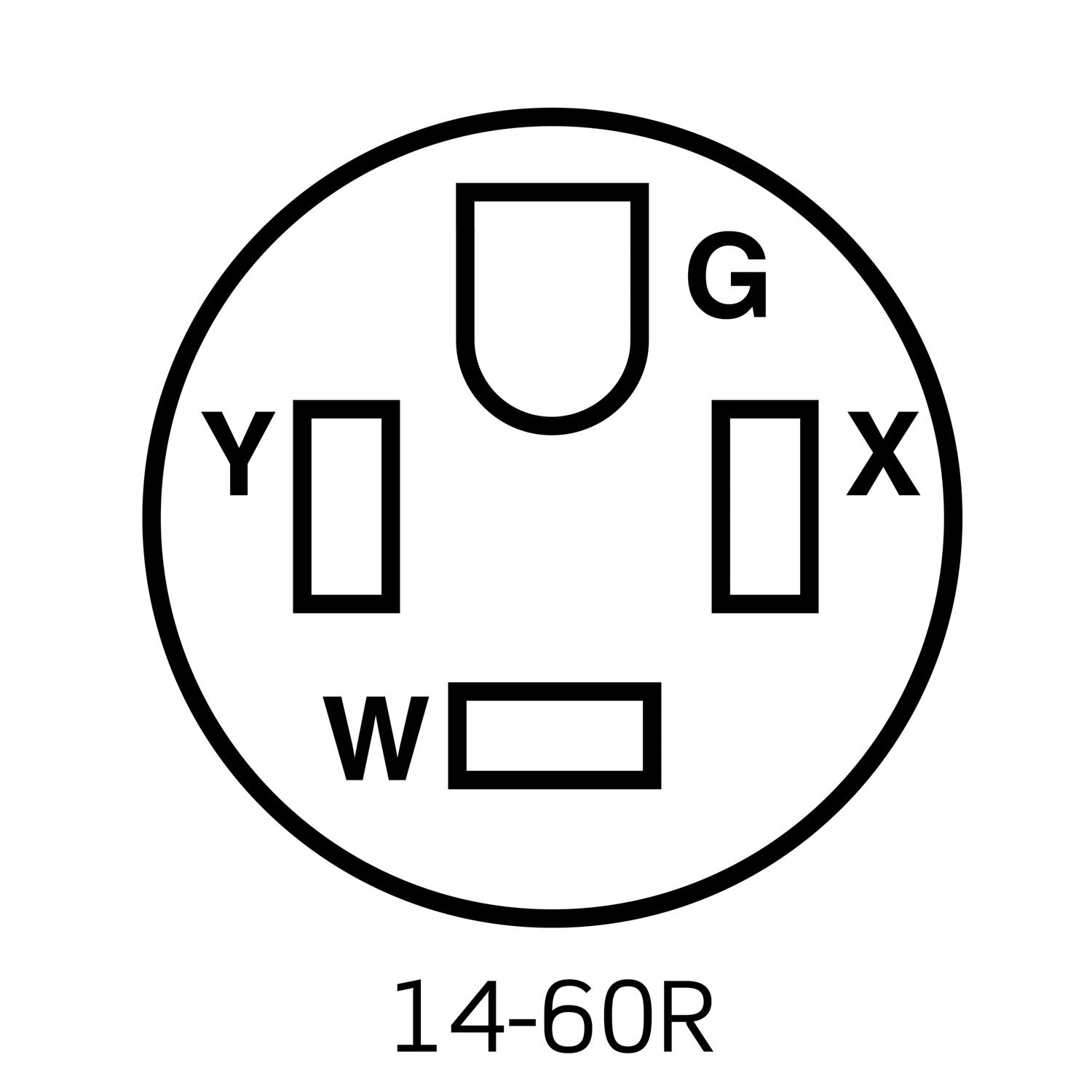

NEMA
14-60R
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
3.75 H x 2.75 W x 2.10 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Type
Power, 1-Outlet, 1-Unit
Voltage
125 V
Wire Count
4
Wire Size
14 - 6 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477843253
Color
Black
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTIN
00078477843253

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
